IO Modual
address 0), 4 groups of records for AXM-IO31 (AXM-IO3 module in sub
address 0), 6 groups of records for AXM-IO12 (AXM-IO1 module in sub
address 1), 4 groups of records for AXM-IO22 (AXM-IO2 module in sub
address 1) and 4 groups of records for AXM-IO32 (AXM-IO3 module in sub
address 1) in sequence. One group of records is an unsigned long integer,
for example, “4349H to 434aH” registers record the number of pulses for
DI1 circuit of AXM-IO11 (AXM-IO1 module in sub address 0).
Figure 3-5 shows the recorded number of pulses read on screen.
Figure 3-6 shows the recorded number of pulses read by the utility
software.

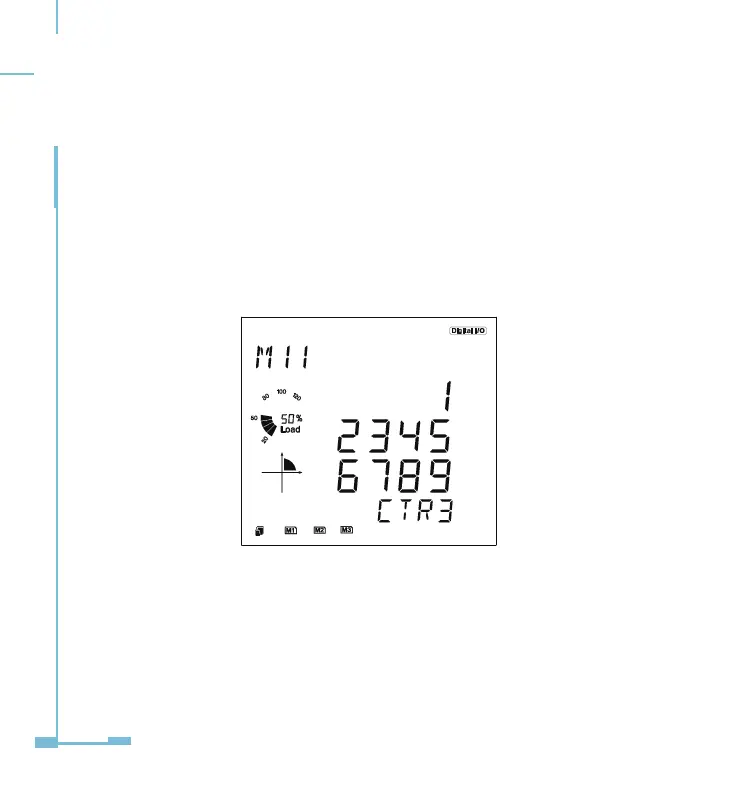

Figure 3-5 recorded number of pulses read on the screen
