AccuEnergy Acuvim II AXM-IO1 User Manual

IO Modual
29
“DO2 output type (10a8H)” register: when DO circuits work in energy
output mode, this register determines the energy output type for DO2.
The value of this register is dened as the same as “DO1 output type”
register.
“DO1 output type” register and “DO2 output type” register can be set to
the same value or not.
The parameter setting is shown in gure 3-13.

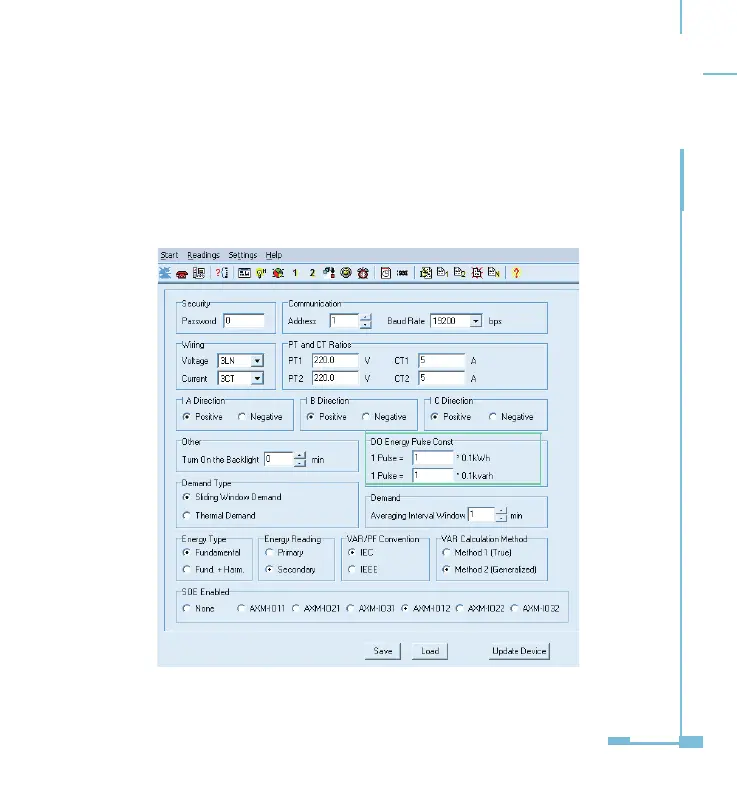

Figure 3-8 parameter setting of DO energy pulse constant
