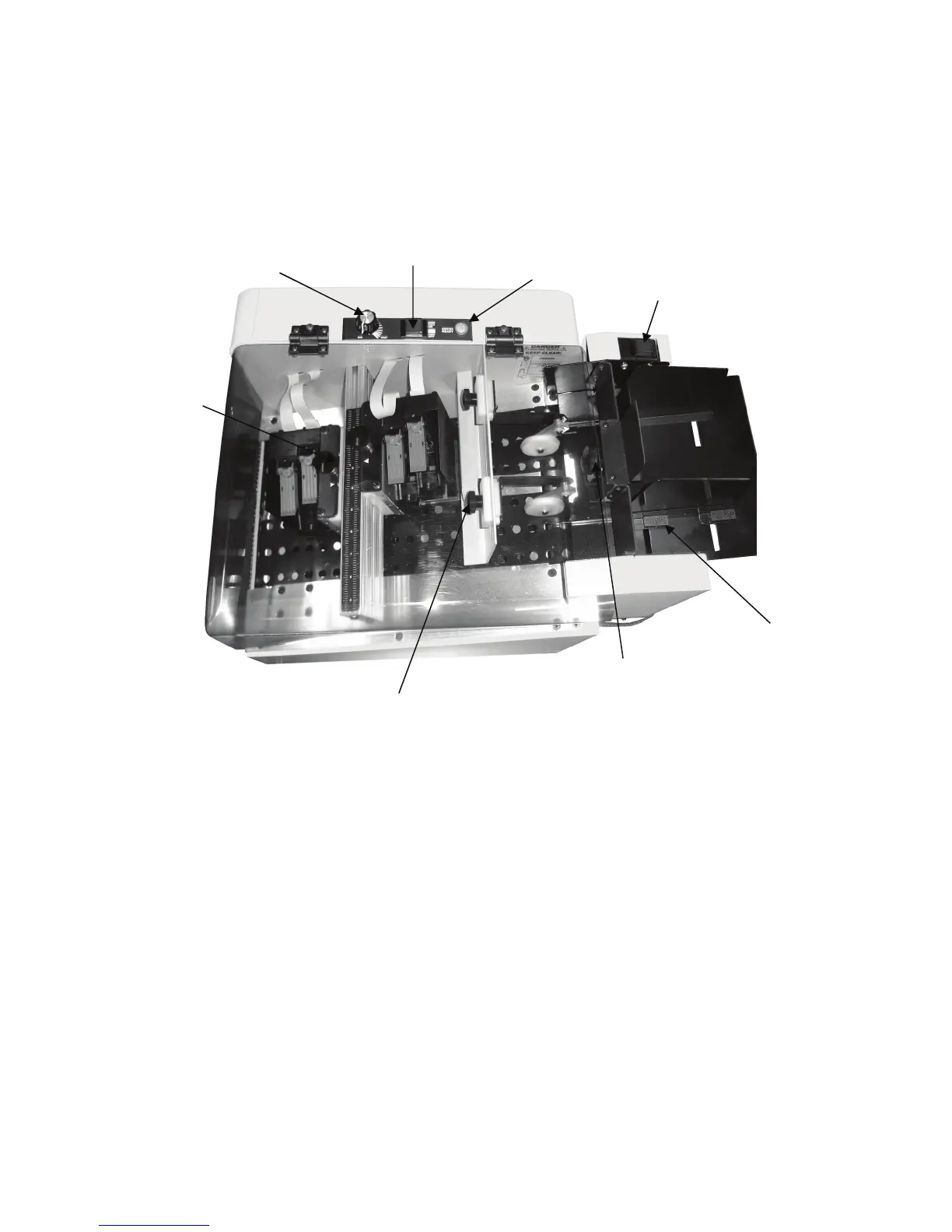

4.4 Controls, Adjustments and Indicators

Imager

Height

Adj. Knob

Feed Speed

Transport Belts

and Feeder

Main Power

Indicator

Feed only

Switch

Product side

guide latch

Separator Lock

Knob

Input Roll

Lock Knob

1. Main Power Switch: Black single pole switch on rear of machine

shown on page 9. Controls main power to the machines.

2. Transport Switch: Red Push button. Illuminates when on Controls

Vacuum belts and Feeder rolls—all moving parts may be used as an

e-stop.

3. Feed Speed: Black fluted knob that controls the speed of the feeder.

Clockwise for faster. Turn off before starting feed rolls.

4. Power Indicator: Orange light on when Power Switch is ON.

5. Feed Only: Red illuminated push button controls feeder without stop-

ping transport. Should be OFF at start of feed.
