Accuphase E-212 User Manual

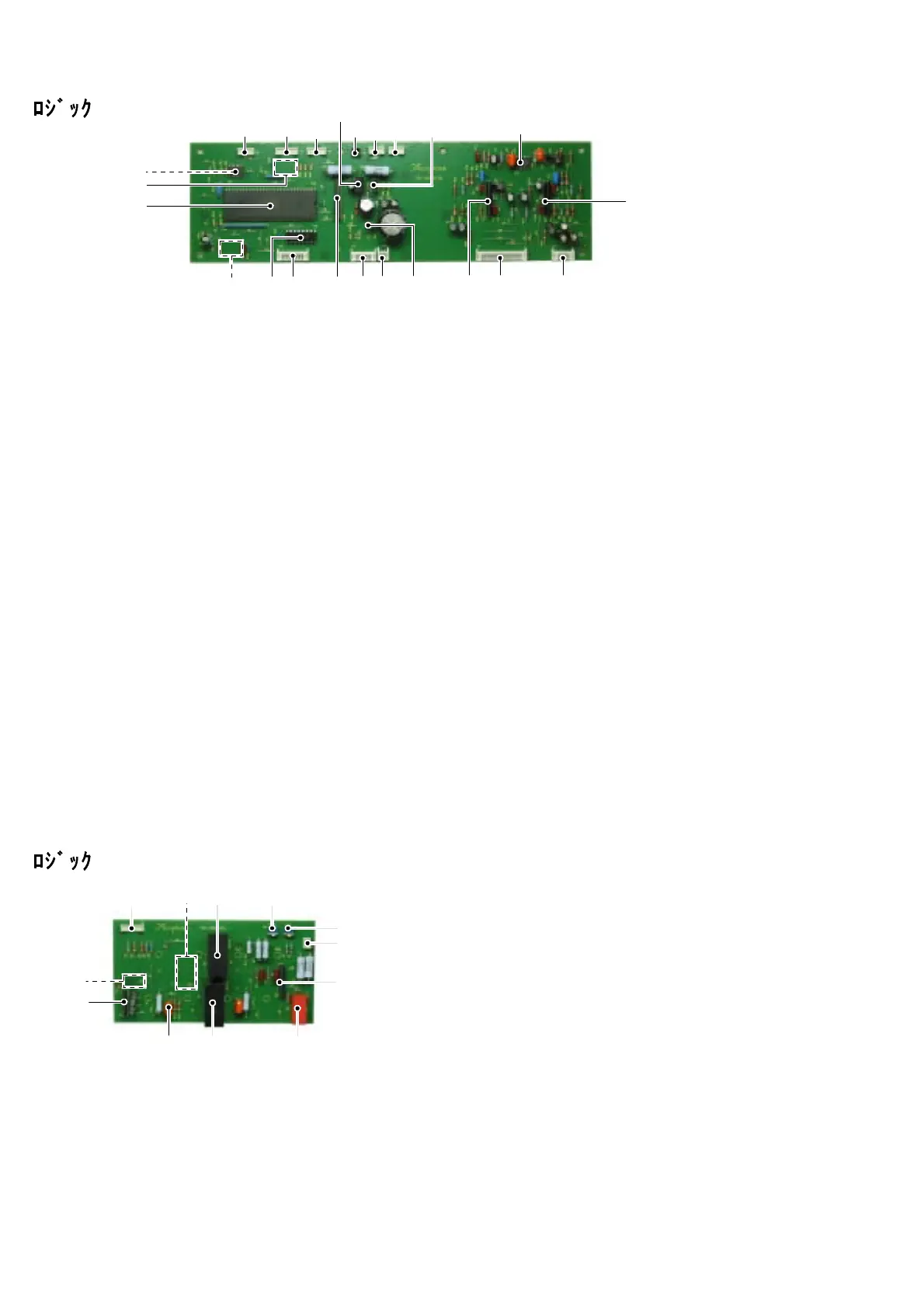

Logic Assembly (721-0063-00)
Ass'y
CE04W0J101VR C3,4:100uF /6.3V
CE04W1H2R2VR C5,6:2.2uF /50V
Electorlytic Capacitor CE04W1V4R7VR C11,12: 4.7uF /35V
ｱﾙﾐ電解ｺﾝﾃﾞﾝｻ CE04W1H100AVF C13,14: 10uF /50V
CE04W1H100CA C17,18: 10uF /50V
CE04W1H220VR C19,20,33,35:22uF/50V
CE04W1E222RS C31:2,200uF /25V
CE04W1E471VR C32:470uF /25V
CE04W1E470VR C34:47uF /25V
CE04W1C101VR C36:100uF /16V
Polyester Film Capacitor CF922N1H104J C37:0.1uF/50V
積層ｺﾝﾃﾞﾝｻ
Polyester Film Capacitor CQ922M1H101K-B C1,2,9,10,15,16
ﾎﾟﾘｴｽﾃﾙｺﾝﾃﾞﾝｻ :100pF/50v
Polypropylen Capacitor CQ922M2A271JAPFF C21,22:270pF/100V
ﾎﾟﾘﾌﾟﾛﾋﾟﾚﾝｺﾝﾃﾞﾝｻ
Carbon Film Resistor
/
炭素皮膜抵抗器
R5,6,19,20 RD142EA911J R37,38 RD142HA471GFS
R9,10 RD142EA102J R41 RD142CA100J
R21,22 RD142EA331J R42,51
～
56 RD142CA473J
R23,24 RD142EA103J R43 RD142EA332J
R25,26 RD142EA240J R44 RD142CA152J
R27,28 RD142EA105J R45 RD142CA101J
R29,30 RD142EA101J R46,47 RD142CA102J
R31,32 RD142HA121GFS R48,50 RD142CA105J
R33,34 RD142EA101J R49 RD142CA561J
R35,36 RD142EA393J R59 RD142CA473J
Resistor Array /
抵抗ｱﾚｨ
RA1 RD92AK07C473J18 RA2 RD92AK16C473J18
Metal Film Resistor /
金属被膜抵抗器
R1
～
4,17,18 RN142CK5491F R13,14 RN142CK1431F
R7,8 RN142CK5231F R15,16 RN142EK2551F
R11,12 RN142EK1541F
Oxide Metal Film Resistor /
金属酸化物被膜抵抗器
R57 RS143FA120JS-P R58 RS143FA330JS-P
－９－
K2 K1K3
308-0609-00 K1
308-1511-00 K2
Connector Plug 308-0213-00 K3
ｺﾈｸﾀﾌﾟﾗｸﾞ 308-0708-00 K4
308-0906-00 K5
308-0407-00 K6,10,11
308-0606-00 K7
308-0508-00 K8
308-0214-00 K9
IC Protector 310-8251-00 F1:2.5A
IC 426-0038-20 IC9
Crystal 527-0012-00 XTAL1
UPC4570HA IC1,2
NJM2114D IC3
IC TC74VHC14F IC4
M93C46-BN6 IC5
TD62003AP IC6
NJM78M05FA IC7
TC74HC595AF IC8
LB1642B IC10
Diode MA165 D1,3
ﾀﾞｲｵｰﾄﾞ 1SR139-400 D2
Transistor 2SC3902-S,T Q1
ﾄﾗﾝｼﾞｽﾀ
IC Protector 310-8251-00 F1:2.5A
ICﾌﾟﾛﾃｸﾀｰ
Crystal 527-0012-00 XTAL1
Ceramic Capacitor CK92Y5V1H104Z C38～41:0.1uF/50
V
磁器ｺﾝﾃﾞﾝｻ
Polyester Film Capacitor CF922N1H223JMTFF C7,8:0.022uF/50v
K4K5 IC10 F1 IC1
IC2
IC2
K11
IC6IC4
IC9
Q1
IC8
IC5
K9 K10
IC7
K8K7K6
Protection Assembly (720-0062-00)
Ass'y
Speaker Terminal 313-1019-00 K1
SP端子
308-0410-00 K2
Connector Plug 308-0707-00 K3
ｺﾈｸﾀﾌﾟﾗｸﾞ 308-0306-00 K4
308-0324-00 K5
Relay 362-3204-00 FRELAY1,2
ﾘﾚｨ 362-2232-00 RELAY3
Potentiometer 583-0524-00 VR1,2
半固定抵抗器
Diodes MA167 D1～4
ICs TA7318P-2 IC1
UPC1237HA IC2
Electorlytic Capacitor CE04W0J221VR C3: 220uF /6.3V
ｱﾙﾐ電解ｺﾝﾃﾞﾝｻ CE04W1V4R7VR C4: 4.7uF /35V
CE04W0J101VR C5: 100uF /6.3V
Polyester Film Capacitor CF922N1H334J C1,2:0.3uF/50V
積層ｺﾝﾃﾞﾝｻ
Polypropylen Capacitor CQ922N2A223KAPH C6,7:0.022uF/100V
ﾎﾟﾘﾌﾟﾛﾋﾟﾚﾝｺﾝﾃﾞﾝｻ
Carbon Film Resistor
/
炭素皮膜抵抗器
R1,2 RD142EA101J R12,13,16 RD142EA473J
R3,4 RD142EA475J R14 RD142HA183JFS
R5,6 RD142EA273J R15 RD142EA243J
R11 RD142EA333J R21,25 RD142EA102J
Oxide Metal Film Resistor /
金属酸化物被膜抵抗器
R7,8 RS143DA362JS-P R19,20 RS143DA100JS-P
R9,10 RS143FA221JS-P R23 RS143AA392JS-P
K2K3
K4
K5
IC1
IC2
VR2RELAY2
VR1
C6 K2RELAY1 RELAY1
