You can set the EXT PRE button to ON to separate the preamplifi er and power amplifi er of the E-350, and use an external
preamplifi er or A/V amplifi er with the power amplifi er of the E-350. An example of such a connection is shown below.
Bi-amping means to drive the low frequency range and high frequency range of a loudspeaker with separate
amplifi ers, for higher sound quality.
● Connect the output of the external preamplifi er to the POWER IN jacks of the E-350.
● Only the power amplifi er of the E-350 is used in this case. The preamplifi er is inactive. Input
source switching, volume adjustment, and other preamplifi er functions must be performed
at the external equipment.
Left speaker
Right speaker
Note:
If you set the EXT PRE button to OFF, the E-350 will
operate normally (using the internal preamplifi er).
To POWER IN
Audio cable
with plugs
Preamplifi er output
Source component
CD player
External preamplifi er
or A/V amplifi er etc.
Note:
Do not set the EXT PRE button to
ON while the power amplifi er is being
used. Otherwise the LOW driver (the
driver connected to the power amplifi er
of the E-350) of the loudspeaker will
be cut off.
Left speaker Right speaker
Source component
CD player
From PRE OUT
Audio cable with plugs
Power amplifi er
Analog
output
LOW
terminals
HIGH
terminals
LOW
terminals
HIGH
terminals

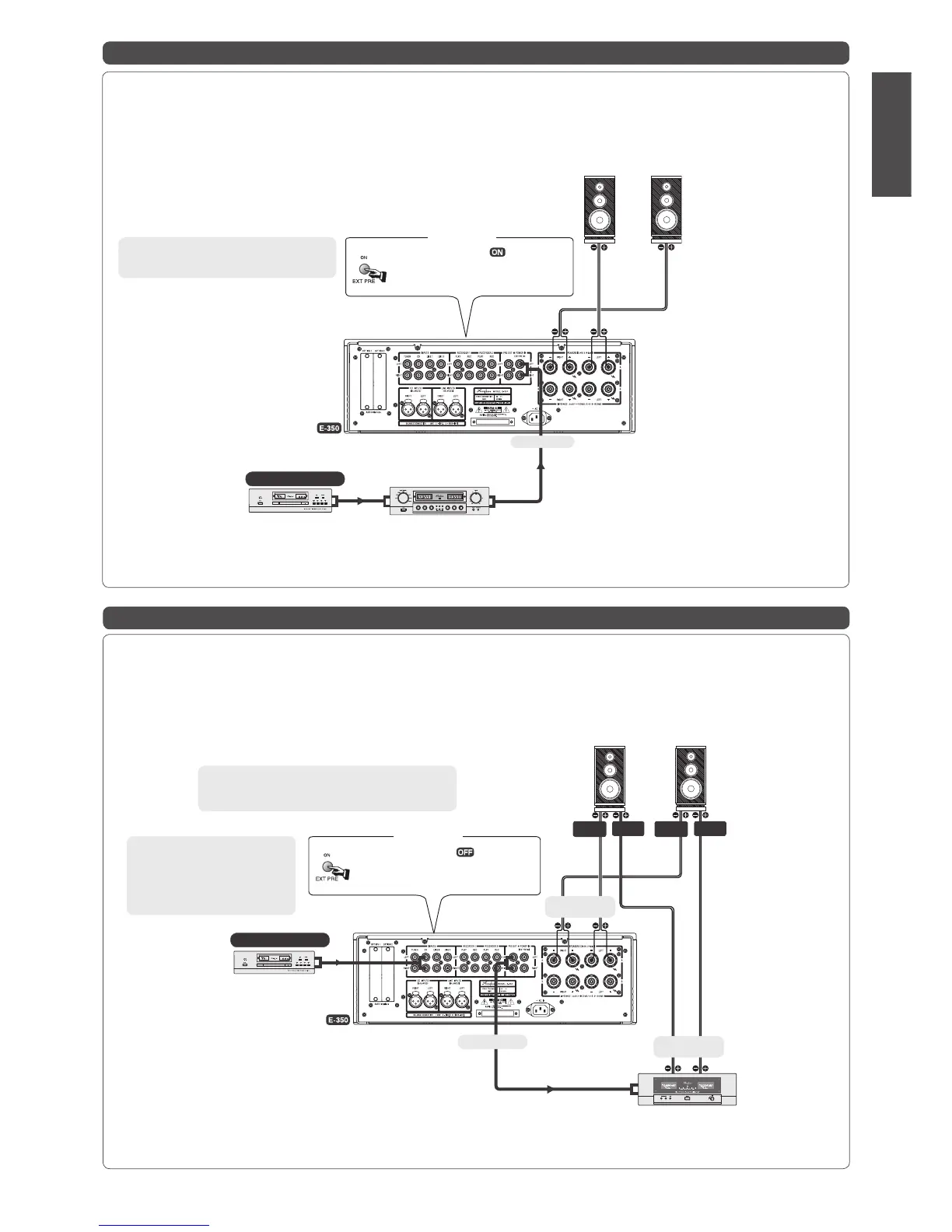

Playback with external preamplifi er
Bi-amping connection example
Connections for example shown in illustration
E-350 speaker outputs  LOW terminals of speaker
Other power amplifi er  HIGH terminals of speaker
To LOW terminals
of speakers
Set EXT PRE button to (“EXT PRE”
LED lit)
● Preamplifi er and power amplifi er sections are
separated.
Front panel
Set EXT PRE button to (“EXT PRE”
LED out)
● Preamplifi er and power amplifi er sections are not
separated.
To HIGH terminals
of speakers
Front panel
● A loudspeaker with built-in crossover network and separate LOW and HIGH input terminals
is required.
● In addition to the E-350, use one more power amplifi er of similar gain.
All Accuphase power amplifi ers have the same gain (28 dB).
INPUTS
