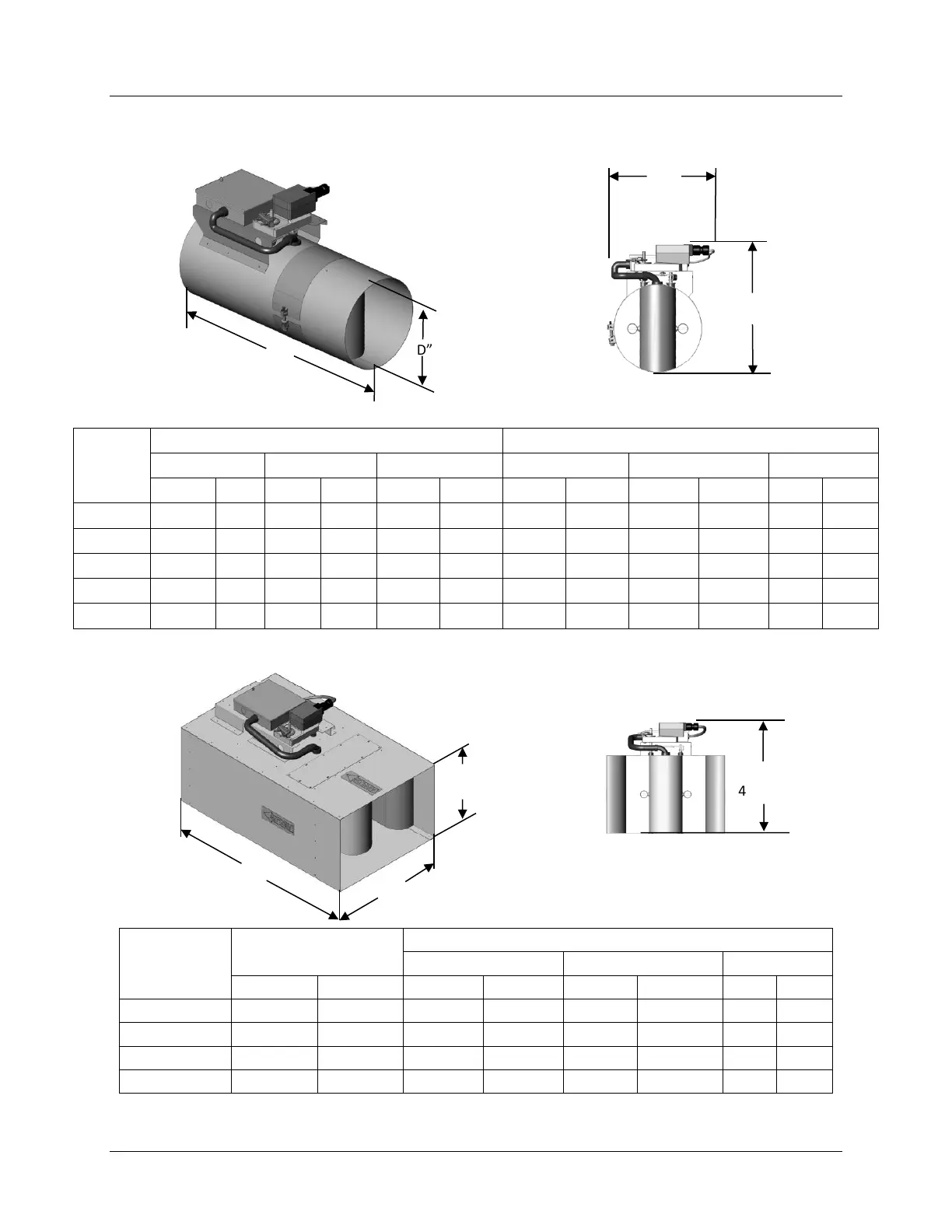

SECTION 3 – PHYSICAL DIMENSIONS & WEIGHTS
3.1 Round Valve Sizes
3.2 Rectangular Valve Sizes
Note: All dimensions are to the “outside” and have a tolerance of +/- .062” (1.6mm).
Valve
Model
Size
Dimensions
Weight
“D”
“L”
“H”
Stainless Steel
Aluminum
Flange Add
in.
mm
in.
mm
in.
mm
Lbs.
kg
Lbs.
kg
Lbs.
kg
06
5.88
149
22
559
10
254
13
5.9
9
4.1
2.0
0.9
08
7.88
200
24
610
13
330
16
7.3
12
5.4
2.6
1.2
10
9.88
250
24
610
15
381
20
9.1
14
6.4
3.2
1.5
12
11.88
300
27
686
17
432
26
11.8
16
7.3
4.5
2.0
14
13.88
350
30
762
19
483
30
13.6
20
9.1
5.2
2.4
Valve
Model Size
Valve Width “W”
Weight
Ref Diagram
Stainless Steel
Aluminum
Flange Add
in.
mm
Lbs.
kg
Lbs.
kg
Lbs.
kg
18
17.88
454
43
19.5
26
11.8
5.0
2.3
24
23.88
607
49
22.2
29
13.2
5.5
2.5
36
35.88
911
97
44.0
59
26.8
10.0
4.5
48
47.88
1216
109
49.4
69
31.3
11.0
5.0
“H”
12”
(305mm)
“D”
“L”
19”
483mm
30”
762mm
“W”
11.88”
302mm
