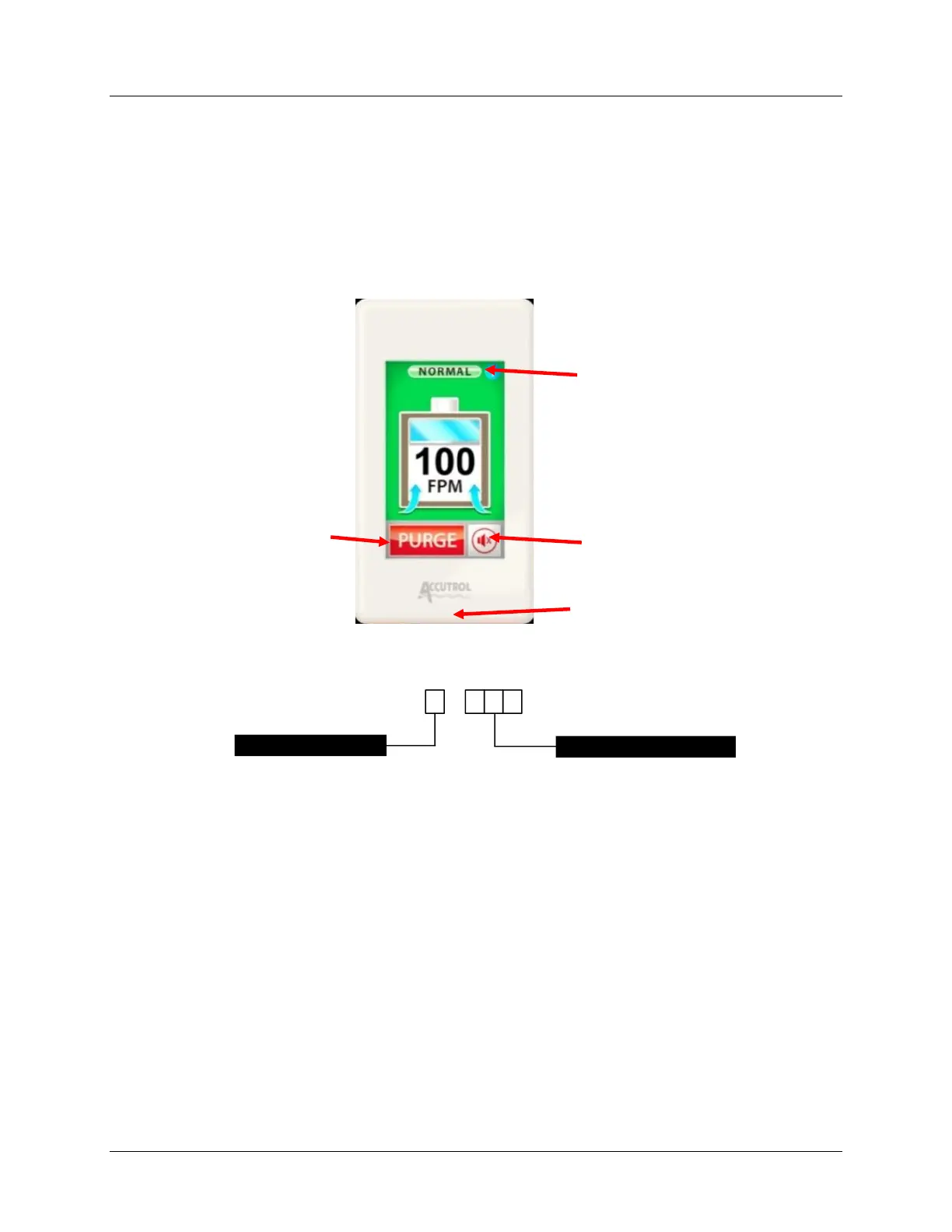

FUME HOOD MONITOR, MODEL FHM3 OPERATION
The FHM3 is used in conjunction with the AVC6000 to provide a comprehensive Fume Hood
Control System. The FHM3 is provided with 2 mounting screws for securing to a standard
single-gang electrical box. Prefabricated plenum-rated cables are provided with the FHM3 for
connecting directly to the AVC6000 control module. The FHM3 does not require configuration.
All configuration parameters are stored in the AVC6000 control module and can be accessed
using the AccuValve Insight Configuration Software.
Model Code
25' Cable = 025
50' Cable = 050
75' Cable = 075
100' Cable = 100
FHM 3 -
CABLE LENGTH
Touchscreen
MODEL
LCD Display
3.2 Inch Touchscreen Resistive. Resolution: 400 x 240 Pixel, 64K Colors
Indicates face velocity or airflow volume on screen
Provides alarm and setback messages on screen
Configuration Port
USB Type C protected by removable rubber plug
Connect to PC with the AccuValve Insight software
All configuration settings for the FHM3 are programmed through the AccuValve Insight
software
Mute Button
Normal/Alarm/Purge Status Indicator
Purge Button
USB Port Protected by Removable
Rubber Plug
