Accutrol ACCUVALVE AVC6000 User Manual

Installation & Operation Manual - Model AVC6000
A1
APPENDIX A:
FUME HOOD MONITOR, MODEL FHM1 OPERATION
The FHM1 is used in conjunction with the AVC6000 to provide a comprehensive Fume Hood
Control System. The FHM1 is provided with 2 mounting screws for securing to a standard
single-gang electrical box. Prefabricated plenum-rated cables are provided with the FHM1 for
connecting directly to the AVC6000 control module. The FHM1 does not require configuration.
All configuration parameters are stored in the AVC6000 control module and can be accessed
using the AccuValve Insight Configuration Software.

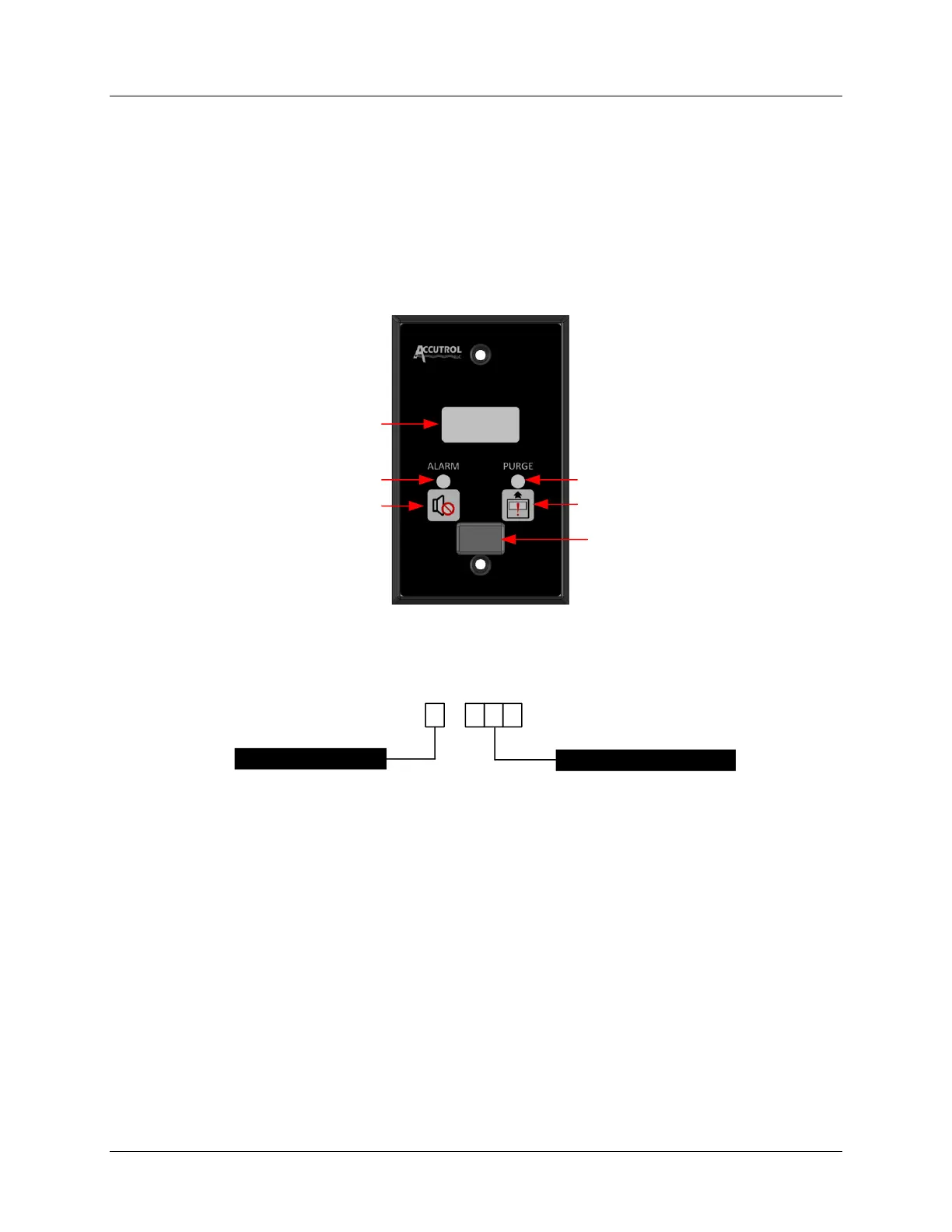

Alarm Status Indicator
Mute Button
Purge Button
Purge Status Indicator
USB Port Protected by
Removable Rubber Plug
LCD Display With Backlight
FUME HOOD MONITOR
Model Code
025 - 25' Cable
050 - 50' Cable
075 - 75' Cable
100 - 100' Cable
FHM -
CABLE LENGTH
1 - Standard
2 - Companion
3 - Touch Screen
MODEL
LCD Display
Type: Character Liquid Crystal Display, 2 Lines x 8 Characters with White LED Backlight
Line 1: Indicates Face Velocity or Airflow Volume, Depending on Operating Mode
Line 2: Provides Alarm Messages and Programmable Messages to Indicate Operating State
Note: LED backlight turns off during Hibernate Mode
Configuration Port
USB Type C Protected by Removable Rubber Plug
Provided for connecting PC with AVC6000 using the AccuValve Insight Configuration Software
only
