6.6.4.2.2.2 Horizontal Sash Calibration
Note: After completing the Horizontal and Vertical Sash Calibration process, verify
operation by moving the sash position and observing the “real time value” displayed is
equal to the actual sash position.

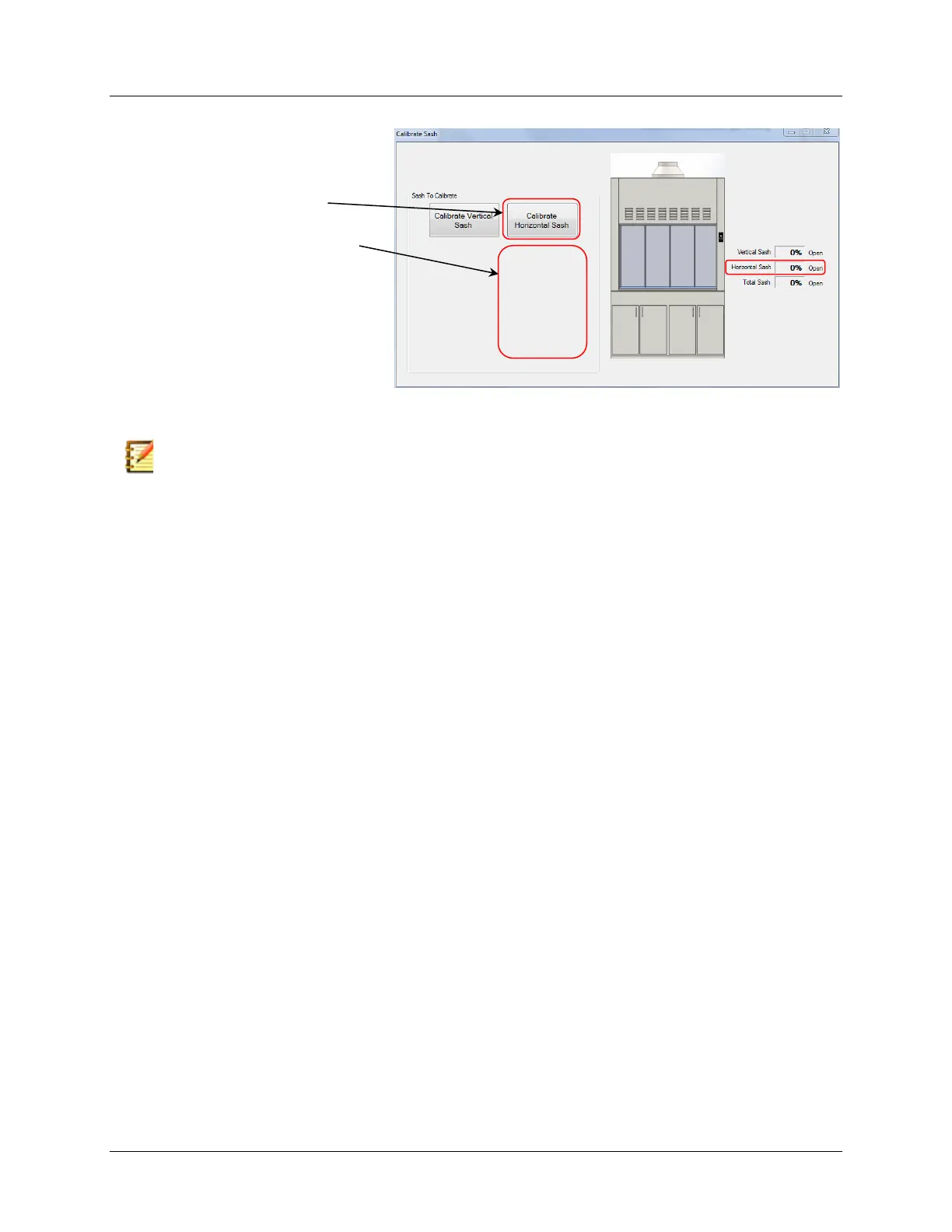

1. Initiate “Horizontal Sash
Calibration” by Selecting
2. Follow the Step-by-Step
Instructions that Appear Here
3. Verify Calibration was Successful
by moving the Horizontal Panels
while observing the displayed
“Horizontal Sash % Open”.
Confirm the Displayed Value = the
Actual Value.
