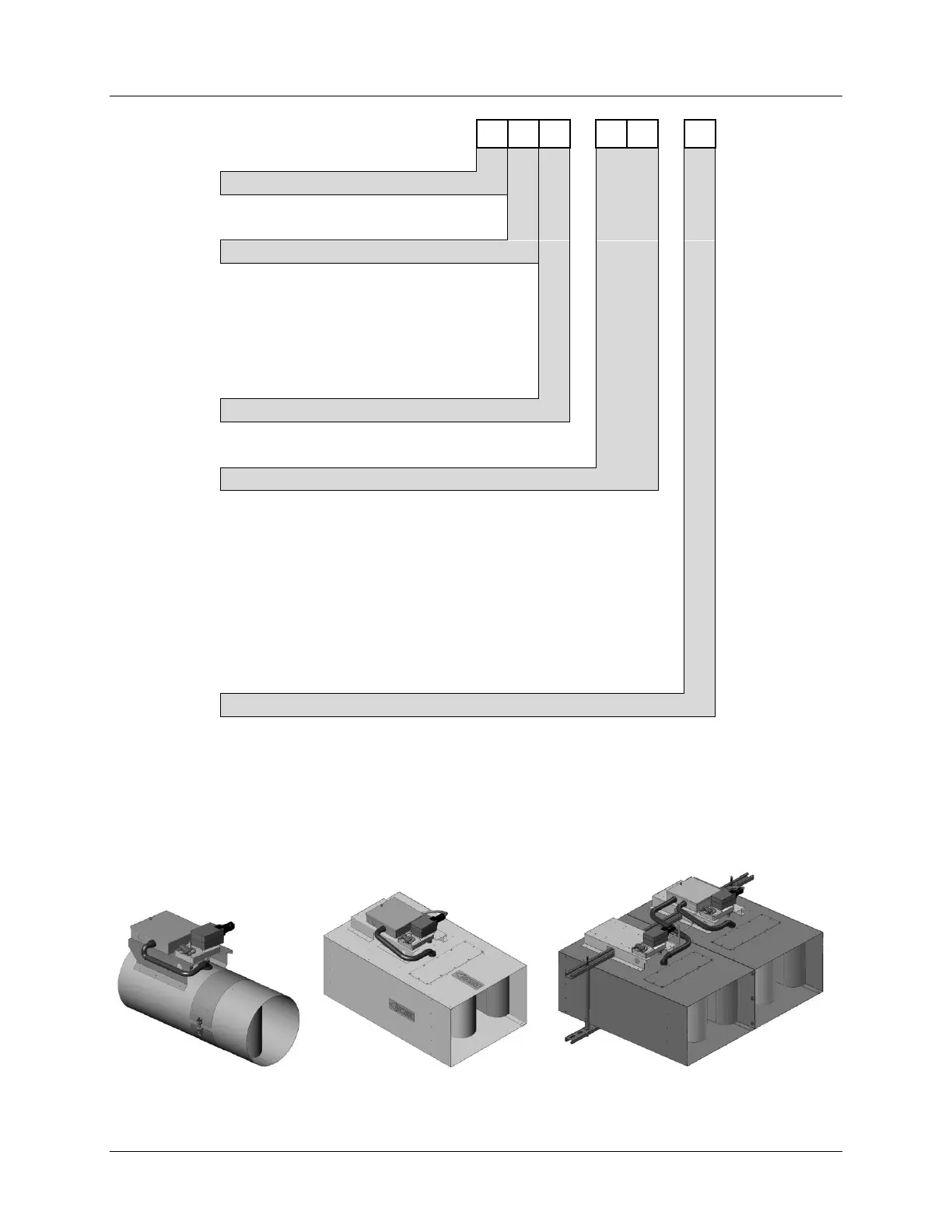

1.2 Model Code
AVC5
-
-
VALVE SHAPE
1 = Round
2 = Rectangular
VALVE HOUSING MATERIAL
1 = Galv. Steel, 20 Ga. (discontinued)
2 = 304SS, 20 Ga.
3 = 316SS, 20 Ga.
4 = Aluminum, 16 Ga.
5 = PFA Coated 304SS, 20 Ga
6 = High Temp. 304SS, 20 Ga
ACTUATOR TYPE
3 = Fail Last Position (FLP)
5 = Fail Open/Closed (FSP)
VALVE SIZE
06 = 6" Diameter Round
08 = 8" Diameter Round
10 = 10" Diameter Round
12 = 12" Diameter Round
14 = 14" Diameter Round
18 = 12" h x 18" w Rectangular
24 = 12" h x 24" w Rectangular
36 = 12" h x 36" w Rectangular
48 = 12" h x 48" w Rectangular
OPTIONS
BLANK = No Options
F = Flanges
I = Insulation
S = Tight Shut-off Standard 6” dia. valve includes seals, therefore –S option is not available on 06.
1.3 Valve Types
Round AccuValve
Model AVC5100-xx
Rectangular AccuValve
Model AVC5200-18, -24
Rectangular AccuValve
Model AVC5200-36, -48
