Installation (sectional steel track)

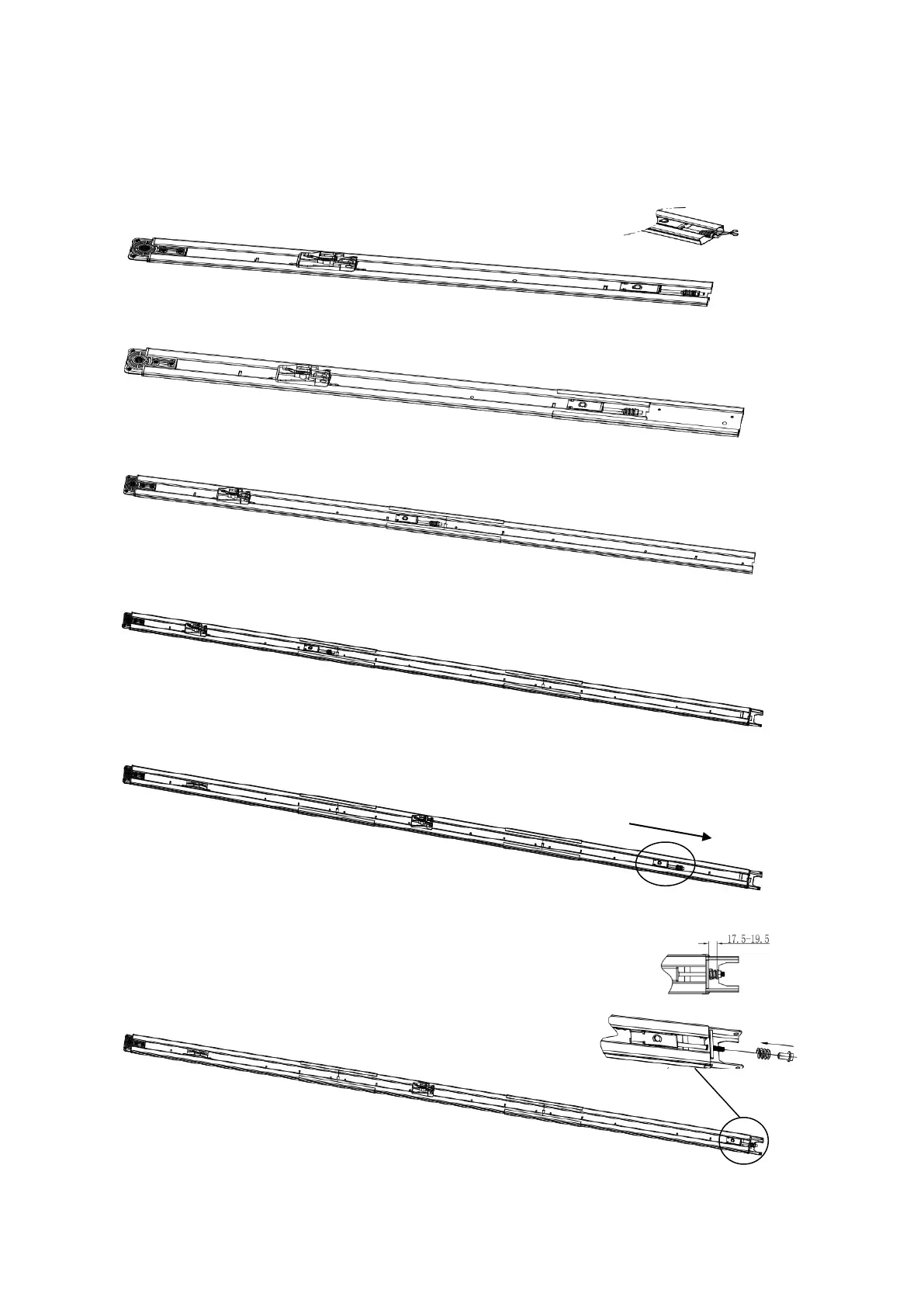

1. Cut the plastic cable tie on the first piece track

2. Fix the first sleeve to the first piece track

3. Fix the second piece track to another end of first sleeve

4. Repeat above steps to fix the second sleeve, third piece track

5. Pull the rod along the track towards another end

6. Fix rod according to below picture

7. Install according Fig. 7

Fig.9

Fig.10

Fig.11

Fig.12

Fig.13

Fig.14
