Installation
1). Read the instructions carefully.
2). Make sure the door structure is solid and suitable to
be motor driven.
3). Make sure that when the door is moving there are no
friction points.
4). The door must be properly balanced and must be
easily lowered and raised by hand.
5). Install a 230-240V,adequately protected 3-pin socket
near where the GDO is going to be installed.
G

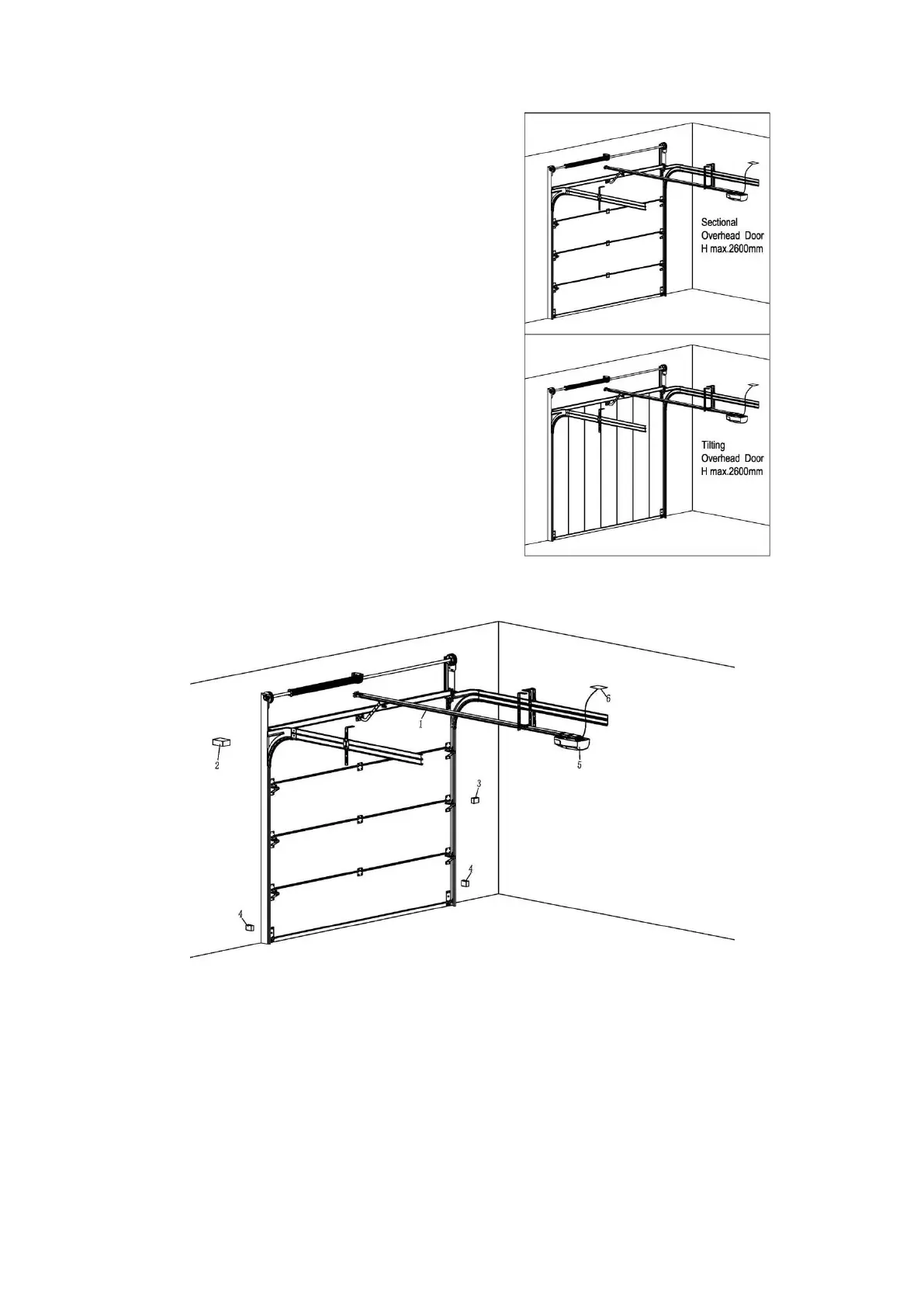

Fig.1
Fig.2
Referring to Fig. 2 for recommended installation
1) Opener track 5) Opener
2) 24V DC flashing light (optional extra) 6) Power socket
3) Push button
4) Photo beam (RX/TX Type)
