ACDC RAPTOR - Installation (aluminum track)

- 5 -
Wall bracket
Cotter pin

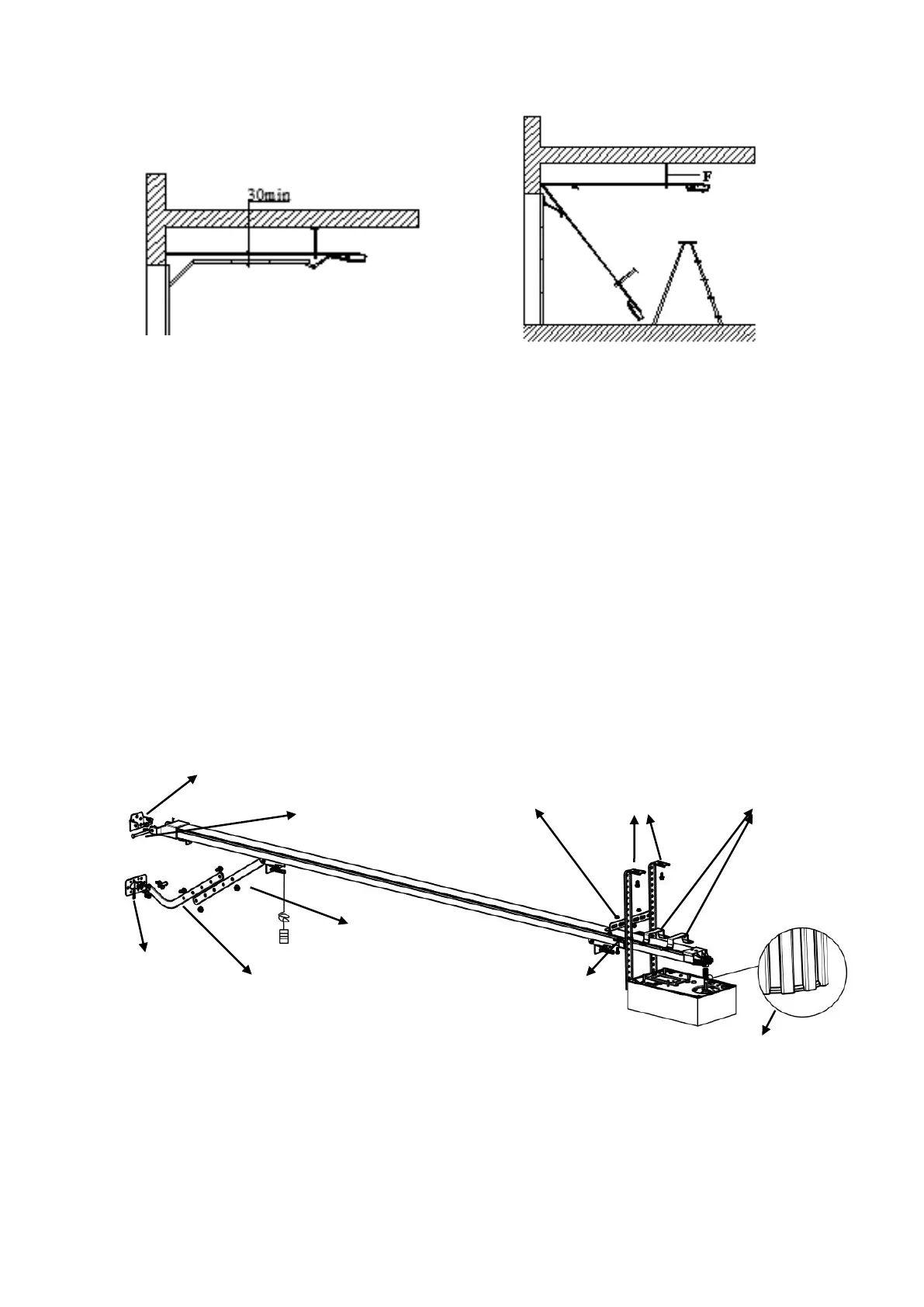

Maintain a minimum gap of 30mm from the top panel‟s maximum height (Fig. 3).
Make sure the track is horizontal and vertical to the shaft. Make sure the connection of hanging
bracket F and ceiling is firm enough (Fig. 4).
Warning: Make sure the opener is affixed to noggins in ceiling and not to plasterboard. Failure to
have a safe and secure fixing will lead to opener falling, and cause serious persons and /or property
damage.
Installation (aluminum track)
Fig.5
Track bracket
U bracket B
Iron angle A
Bent arm
Fig.3
Fig.4
Wall bracket
U bracket A
Door bracket
Straight arm
Motor shaft adapter
