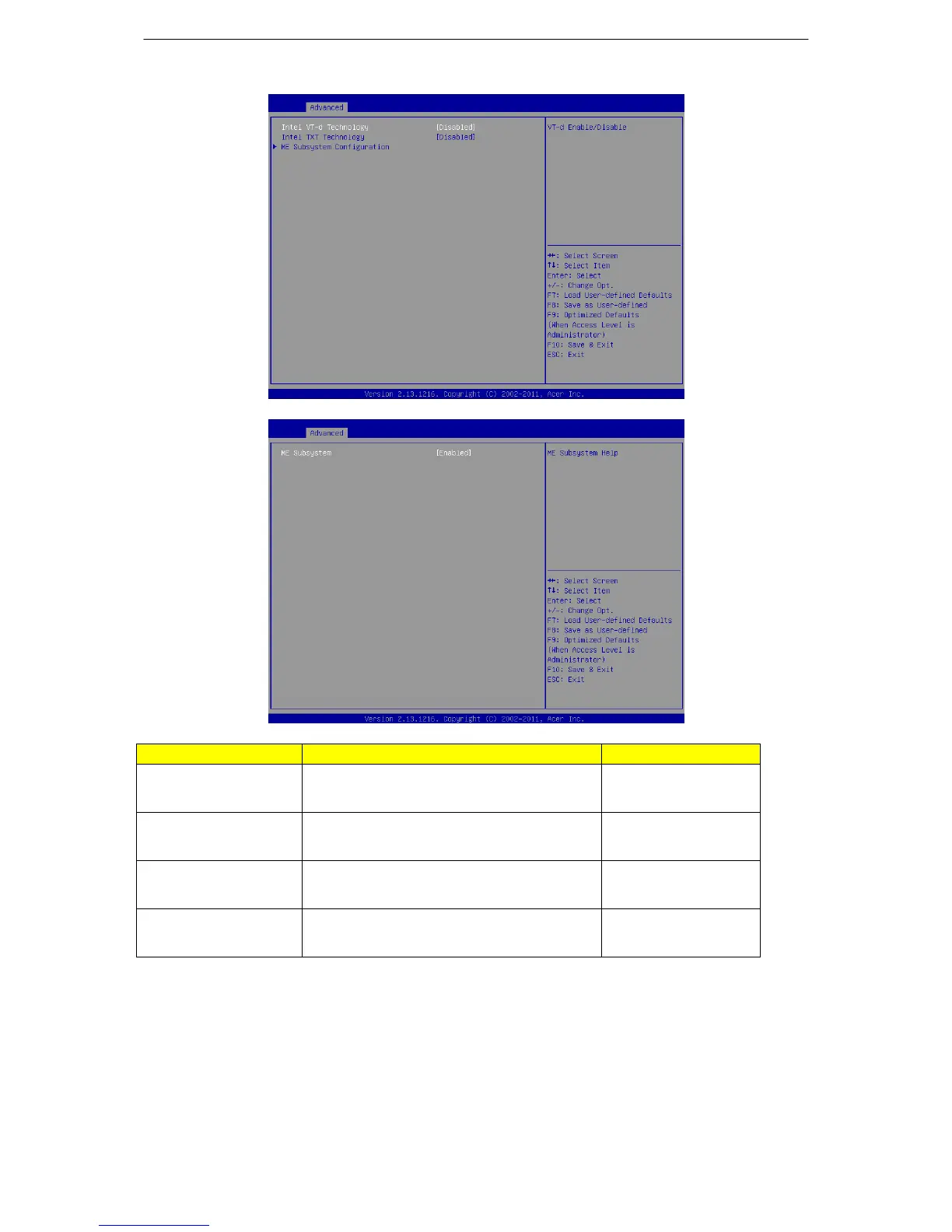

Chipset Configuration

Paramete

Description Option

Intel VT-d Technology Enable/Disable Intel VD-d Technology function. Enabled

Disabled

Intel TXT Technology Enable/Disable Intel TXT Technology function. Enabled

Disabled

ME Subsystem

Configuration

Press [Enter] for advanced configuration.

ME Subsystem Enable/Disable ME Subsystem function. Enabled

Disabled

Revision History2
Disclaimer2
Conventions3
Safety, Care and Regulatory Information4
Preventing Electrostatic Discharge4
Server Warnings and Cautions4
Table of Contents5
Mechanical Components9
System Components15
System Specifications16
Hardware Specification16
Environmental Specification20
Mechanical Specification21
Power Supply Specification22
Appearance of System24
Front View24
Rear View25
Internal Component26
Switch and LED Indicators Introduction27
Front Panel LED Description27
LAN Port LED Description28
Hard Disk Drive Sequence & LED Description28
System Block Diagram29
Motherboard Placement and Jumper Setting30
Motherboard Component30
Connector Description and Jumper Setting31
Installing/Removing System Hardware33
Chassis Cover Removal and Installation34
- Removing the Top Cover34
CPU Installation / Removal35
Heat Sink Installation / Removal36
Memory Installation / Removal37
PCI Expansion Card Installation / Removal38
- Install the Expansion Card38
Hard Disk Drive Installation / Removal39
Power Supply Installation / Removal40
- Install a Hot-Swap Power Supply Module40
System Fan Installation / Removal41
Cable Routing43
Cable Routing Image43
Bios Setup44
- Server Management45
- Boot Options45
- Boot Manager45
Main Menu46
Advanced Menu47
- Processor Configuration48
- Memory Configuration50
- Chipset Configuration51
- ACPI Settings52
- SATA/SAS Configuration53
- PCI Configuration55
- USB Configuration56
- Legacy Device Configuration57
- Power Configuration58
- Console Redirection59
Security Menu61
- Setting a System Password63
- Changing a System Password63
- Removing a System Password63
Server Management Menu64
- System Information65
- Event Log Configuration66
Boot Options Menu68
Boot Manager Menu69
Exit Menu70
Raid Configuration Utilities71
Intel Platform RAID Configuration71
Set RAID Controller in Legacy Mode71
Enabling Intel Onboard SATA RAID71
Entering Intel Onboard SATA RAID BIOS Utility71
Loading Factory Default Setting71
Creating a RAID Volume72
Initializing a RAID Volume72
Assigning a Hot Spare Drive72
LSI Onboard SATA RAID Configuration72
Set RAID Controller in Legacy Mode72
Enabling LSI Onboard SATA RAID72
Entering LSI Onboard SATA RAID BIOS Utility73
Loading Factory Default Setting73
Creating a RAID Volume73
Initializing a RAID Volume73
Assigning a Hot Spare Drive74
Saving and Exiting Onboard RAID Configuration Utility74
Megaraid SAS 9240-4I / 9260-8I RAID Configuration74
Set RAID Controller in EFI Mode or Legacy Mode74
Entering RAID BIOS Utility (Legacy Mode)74
Creating a RAID Volume75
Initializing a RAID Volume75
Entering RAID EFI Utility (EFI Mode)75
Loading Factory Default Setting75
Assigning a Hot Spare Drive76
3041E-R RAID Configuration76
Set RAID Controller in Legacy Mode76
Entering RAID BIOS Utility76
Loading Factory Default Setting76
Creating a RAID Volume76
Initializing a RAID Volume77
Assigning a Hot Spare Drive77
Troubleshooting78
Error Symptoms List78
BMC Event and Ikvm Event Troubleshooting81
Bios Beep Codes83
BIOS Beep Codes Table83
- PEI Beep Codes83
- DXE Beep Codes83
BIOS Recovery Instruction84
Bios Post Error Messages List86
BIOS POST Error Message List86
- PEI Phase86
- DXE Phase87
Undetermined Problems89
