Acer ASPIRE ONE 1410 - Replacing the CRT Board

Chapter 3 105

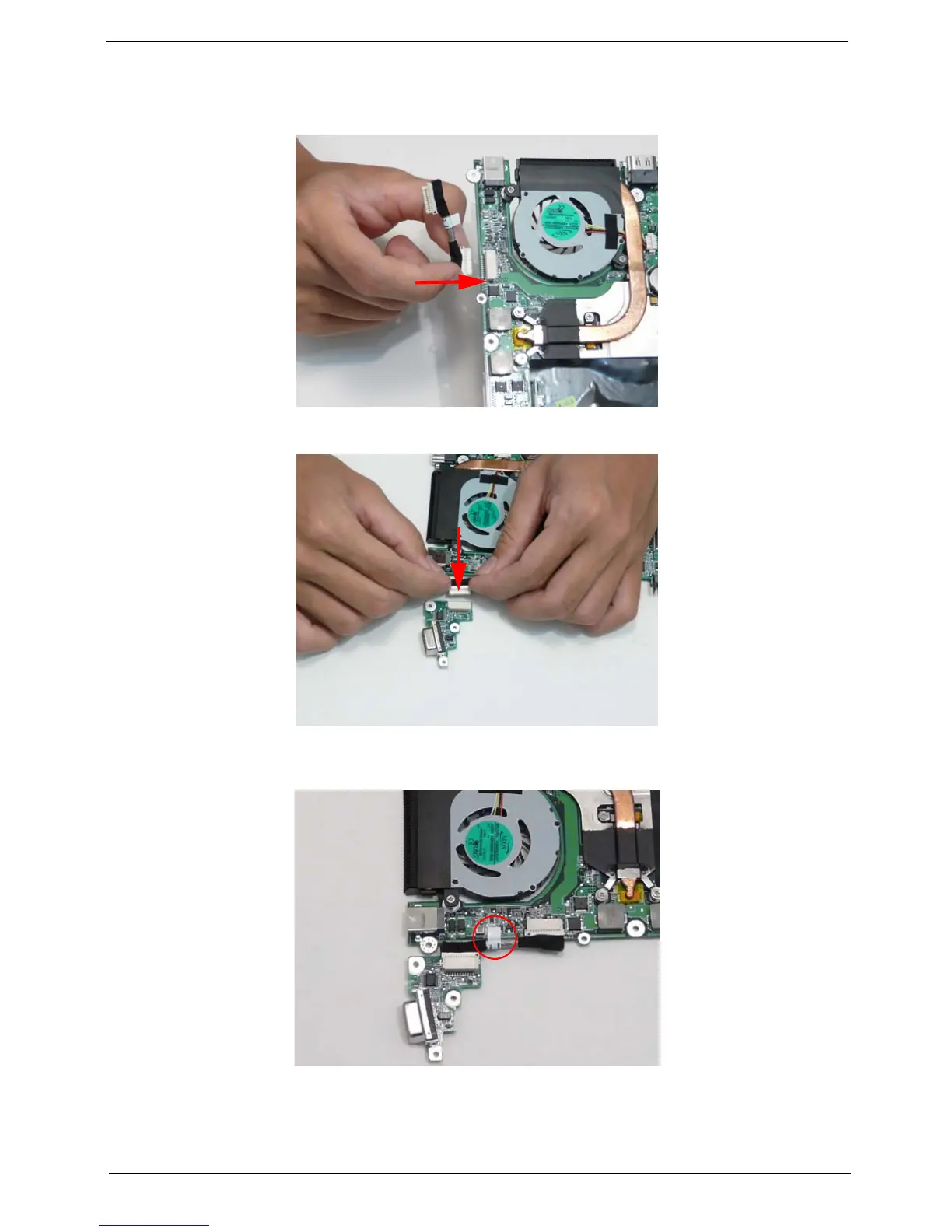

Replacing the CRT Board
1. Connect the CRT board cable to the main board.
2. Connect the CRT board cable to the CRT board.
3. Align the CRT board cable carefully between the main board and the CRT board and stick down the
attached tape of the cable.
