Acer ASPIRE ONE 1410 - Removing the WLAN Module

52 Chapter 3

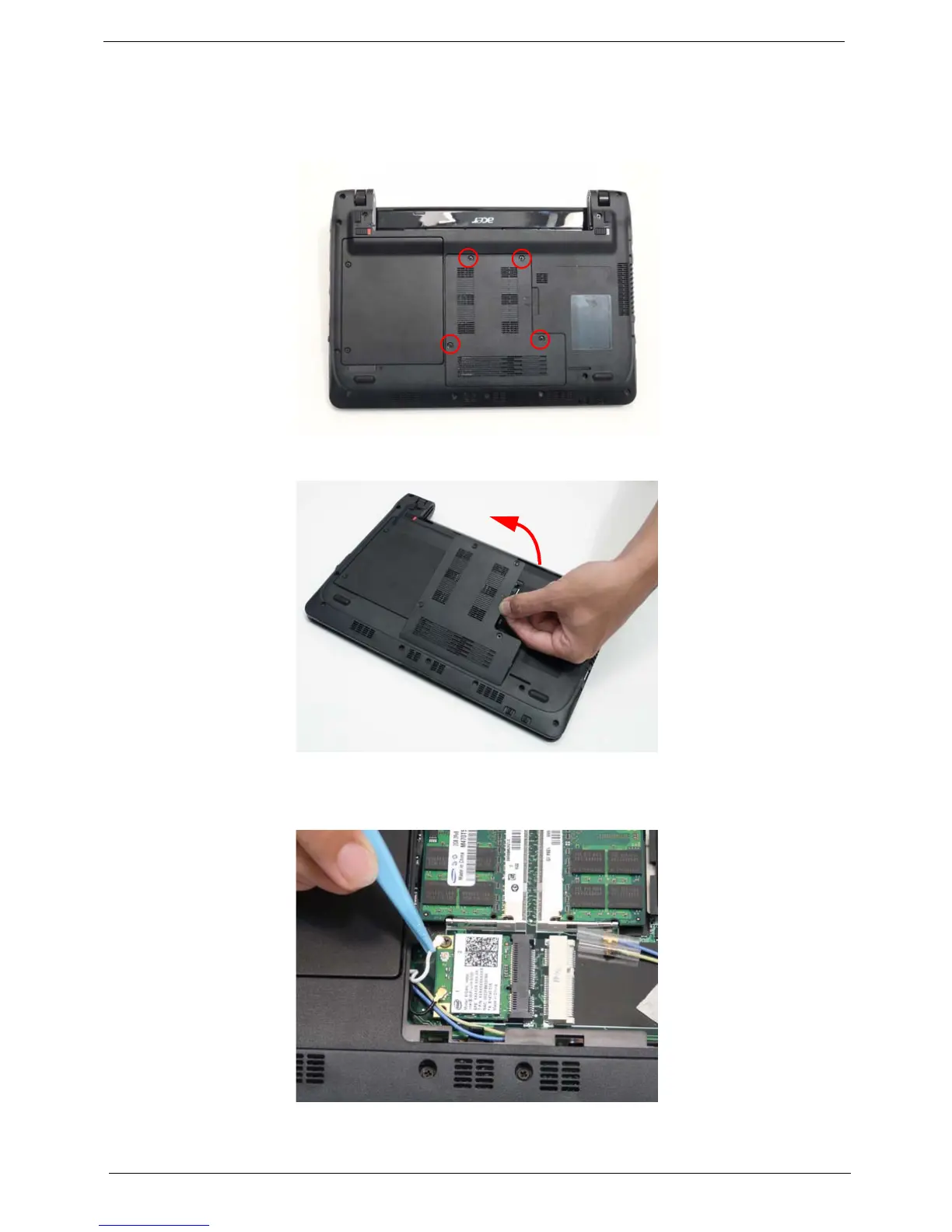

Removing the WLAN Module
1. See “Removing the Battery Pack” on page 45..
2. Loosen the four captive screws in the memory cover.
3. Lift and remove the memory cover.
4. Detach the two cables from the Wireless LAN module.
IMPORTANT:Take note of the Main (1. black) and Auxiliary (2. white) connectors.
