Machine Maintenance 3-53

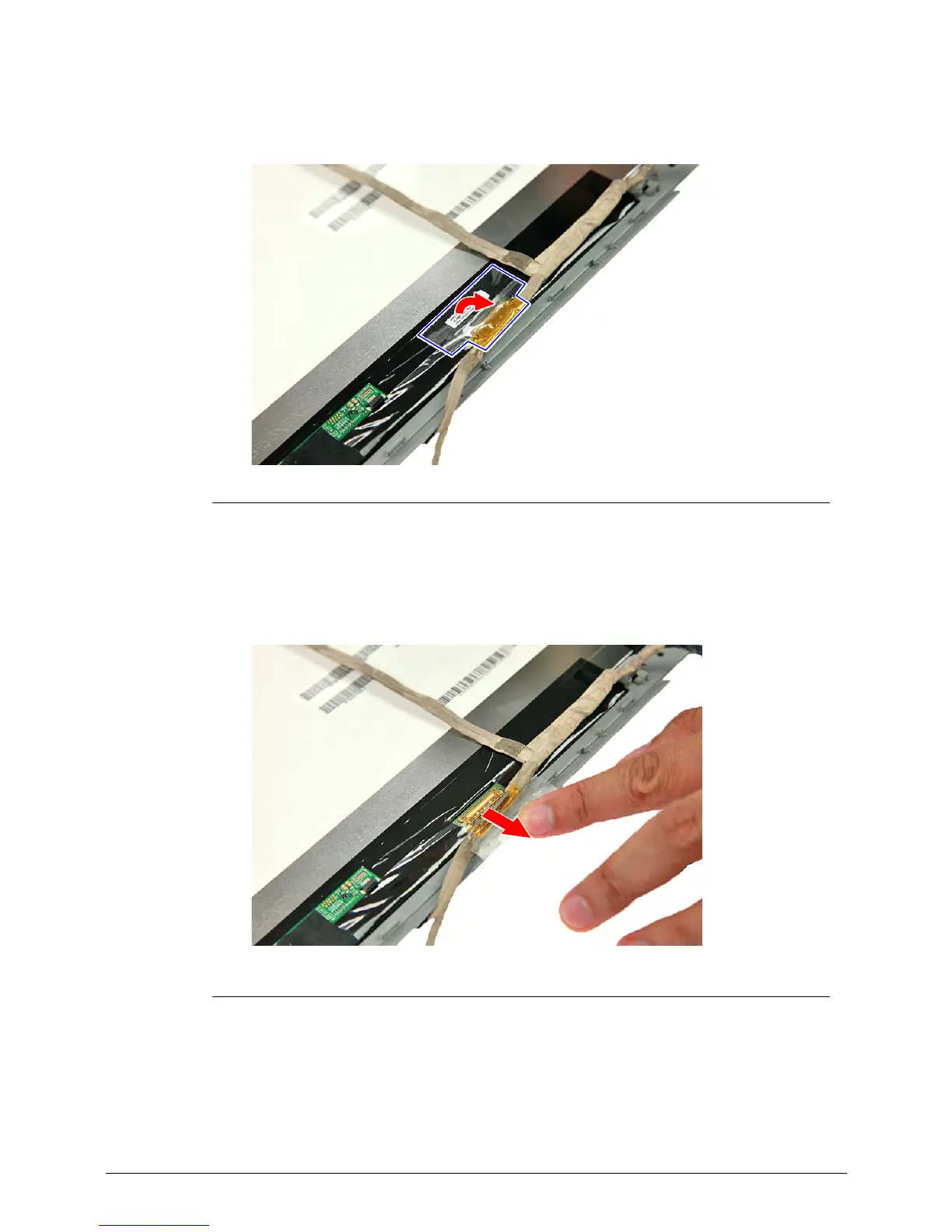

4. Detach the transparent adhesive tape securing the FPC cable connector to the LCD panel
board.
Figure 3-79. FPC Cable Transparent Adhesive Tape
5. Disconnect the FPC cable from the LCD panel board.
Figure 3-80. FPC Cable
