Removing the LCD FPC Cable 0
1. Perform the “Removing the Microphone” procedure described on page 3-50.
2. Disconnect the FPC cable from the converter board.

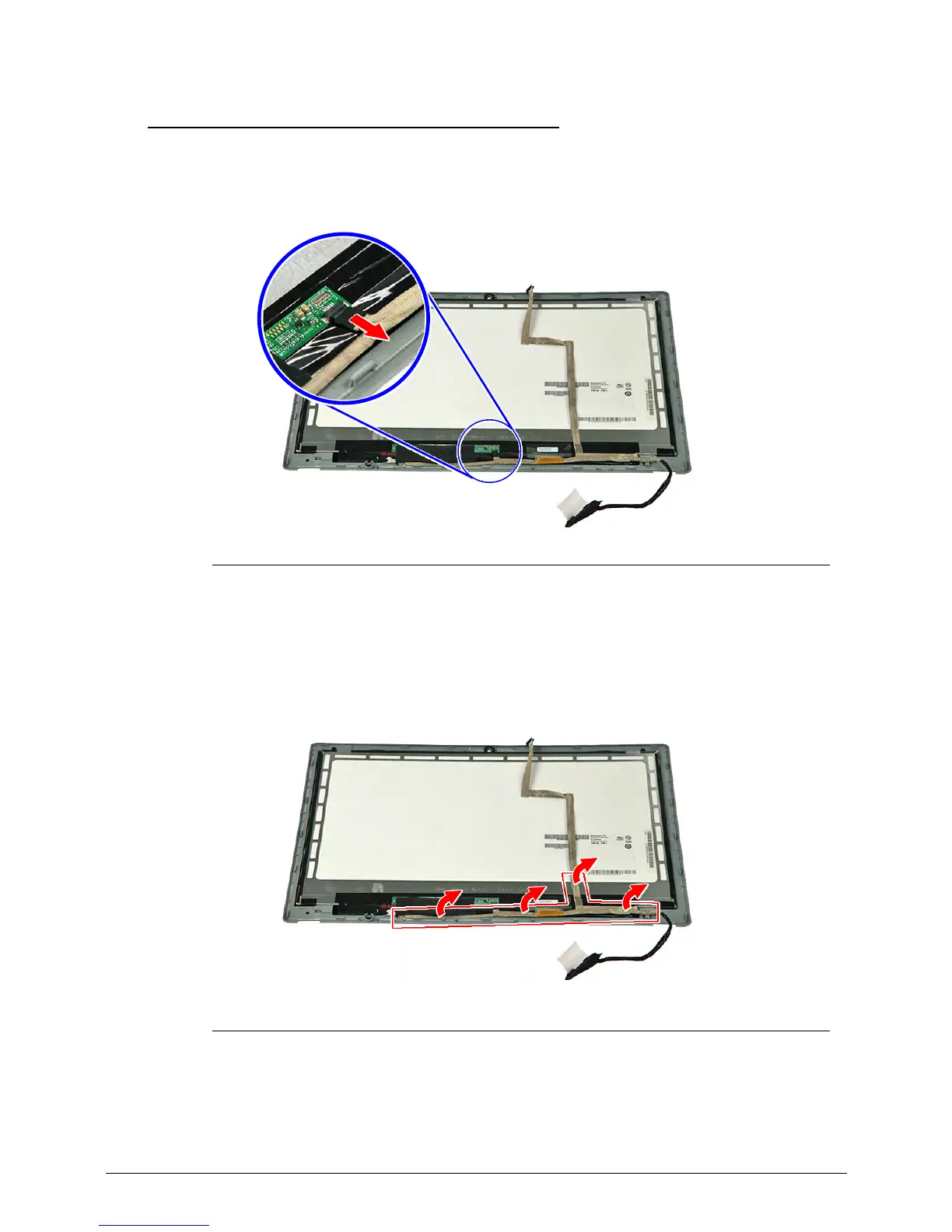

Figure 3-77. Converter Board
3. Detach the FPC cable from the back of the LCD Panel.
Figure 3-78. FPC Cable Self Adhesive Tape
