Reinstalling the Speaker Module 0
1. Gently place the speaker module into the lower case assembly.

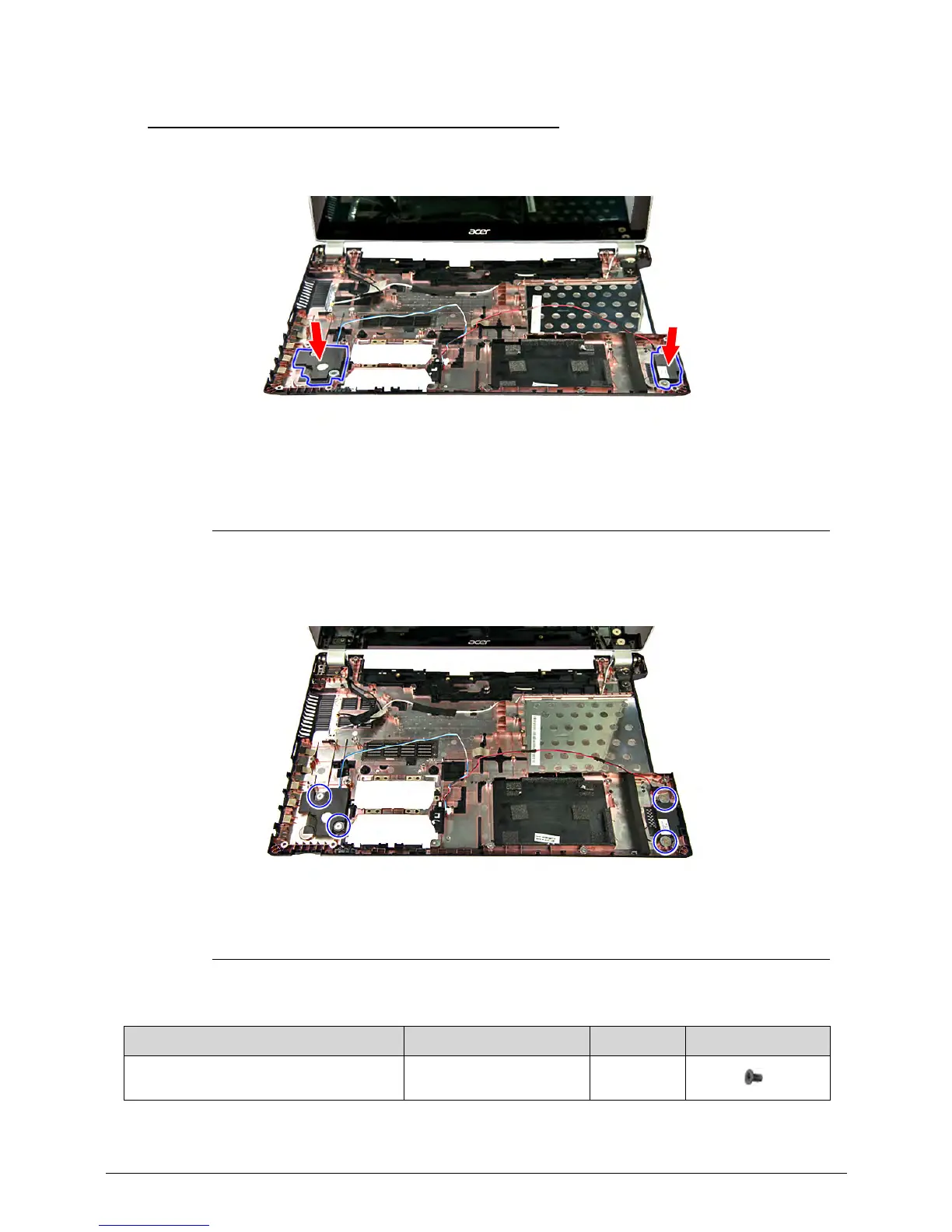

Figure 3-109. Speakers
2. Secure the speaker module to the lower case assembly using four screws.
Figure 3-110. Speaker Screws
Table 3-110. Screws
Step Screw Quantity Screw Type
Speakers Reassembly M2 × L3 4
