Chapter 3 59
Removing the Mainboard
1. See “Removing the Side Panel” on page 36.
2. See “Removing the Font Bezel” on page 37.
3. See “Removing the Heat Sink Fan Assembly” on page 38.
4. See “Removing the Processor” on page 40.
5. See “Removing the Optical Drive” on page 42.
6. See “Removing the Hard Disk Drive” on page 44.
7. See “Removing the Memory Modules” on page 51.
8. See “Removing the PCI Card” on page 53.
9. See “Removing the Front I/O and Card Reader Boards” on page 55.

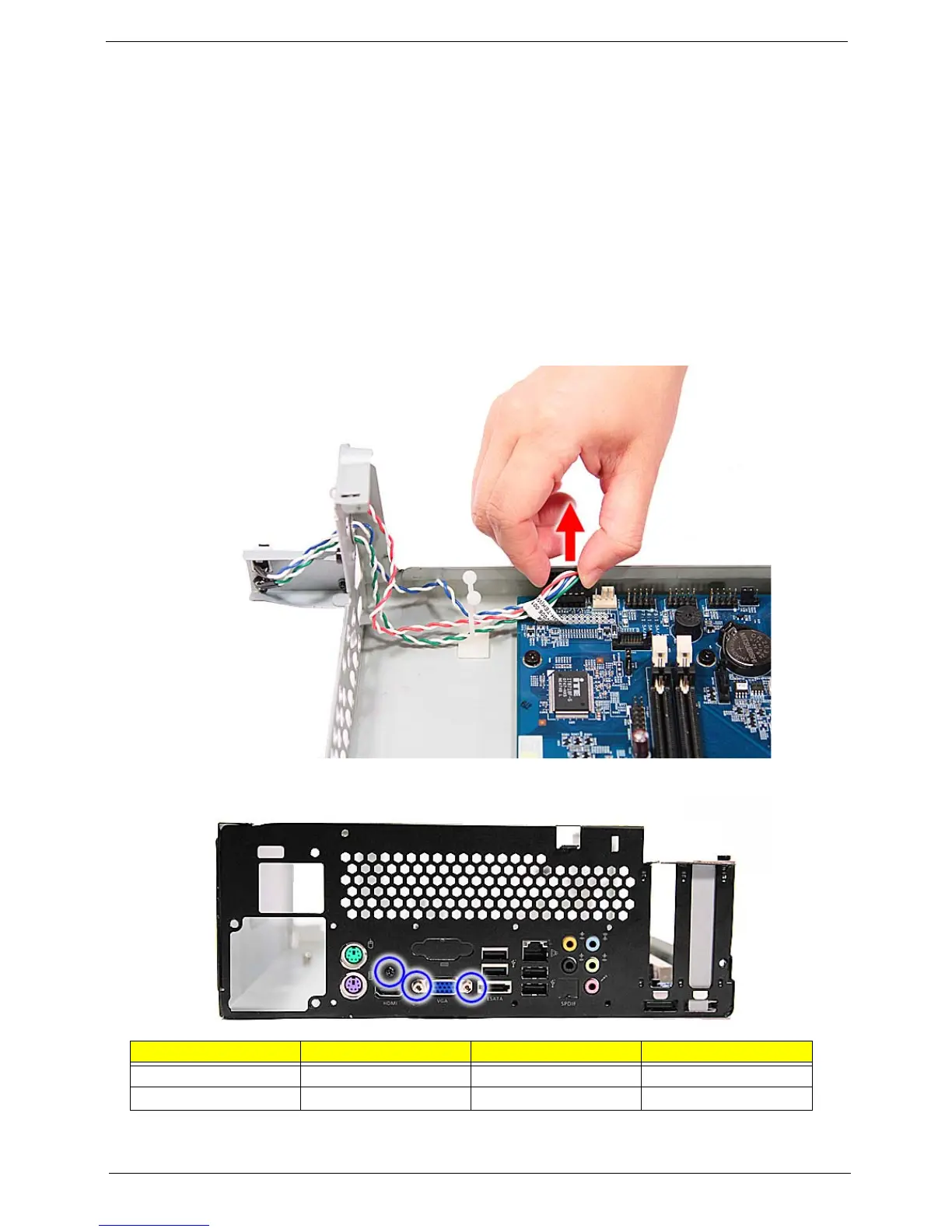

10. Disconnect the LED cable from the mainboard.
11. Remove the three screws (C, D) from the rear panel.
Screw (Quantity) Color Torque Part No.
M3xL5 BZN (1) Black 5.5 to 6.5 kgf-cm 86.1A324.5R0
Hex screw (2) Silver N/A N/A
To Next Page
