40 Aspire AX1430 Service Guide

Reassembly Procedures

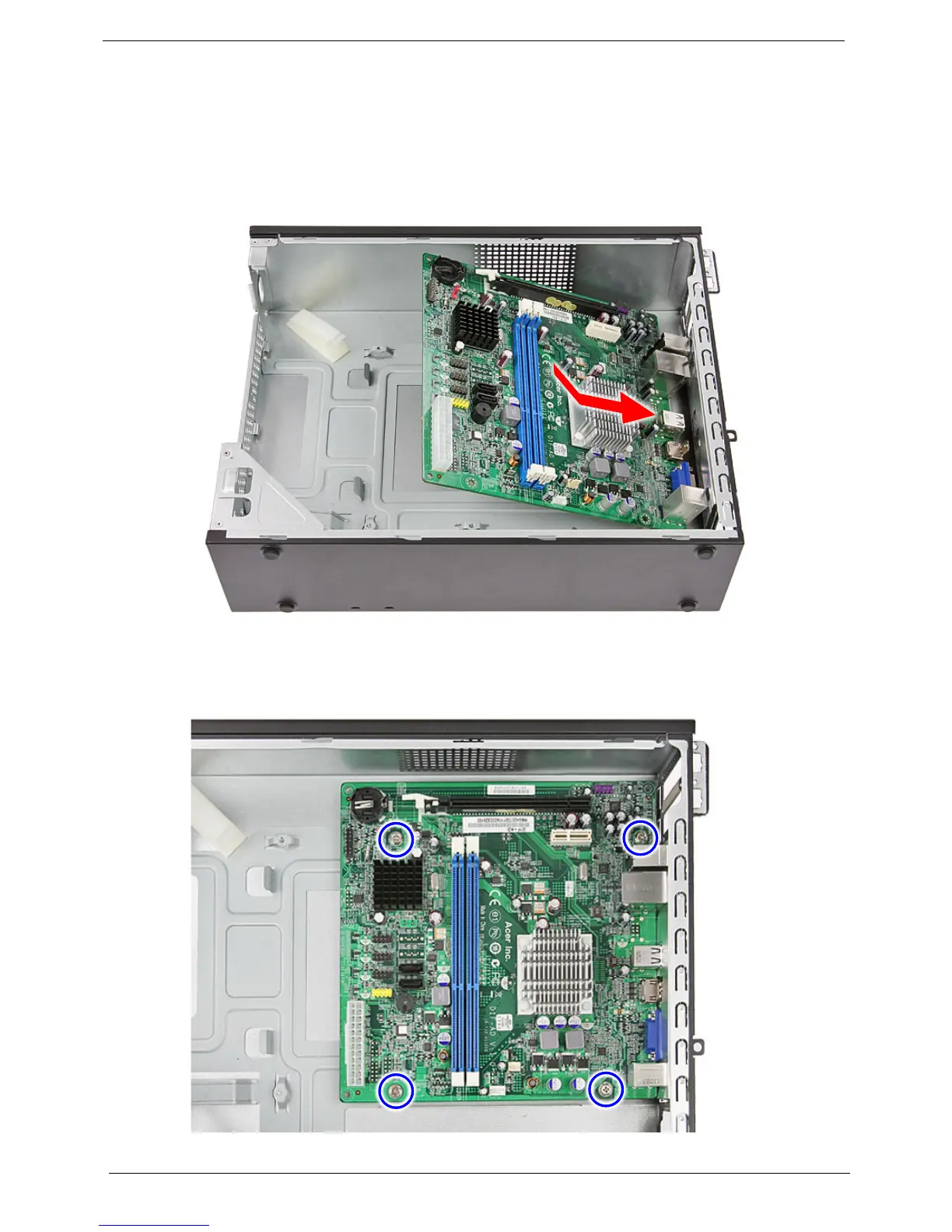

Reinstalling the Mainboard

1. Slide the mainboard into the chassis, with the I/O ports of the mainboard extruding from their port holes,

then lower the mainboard in place.

2. Make sure the screw holes on the main board are aligned with those on the chassis. Secure the

mainboard with four screws.
