Aspire AX1430 Service Guide 57

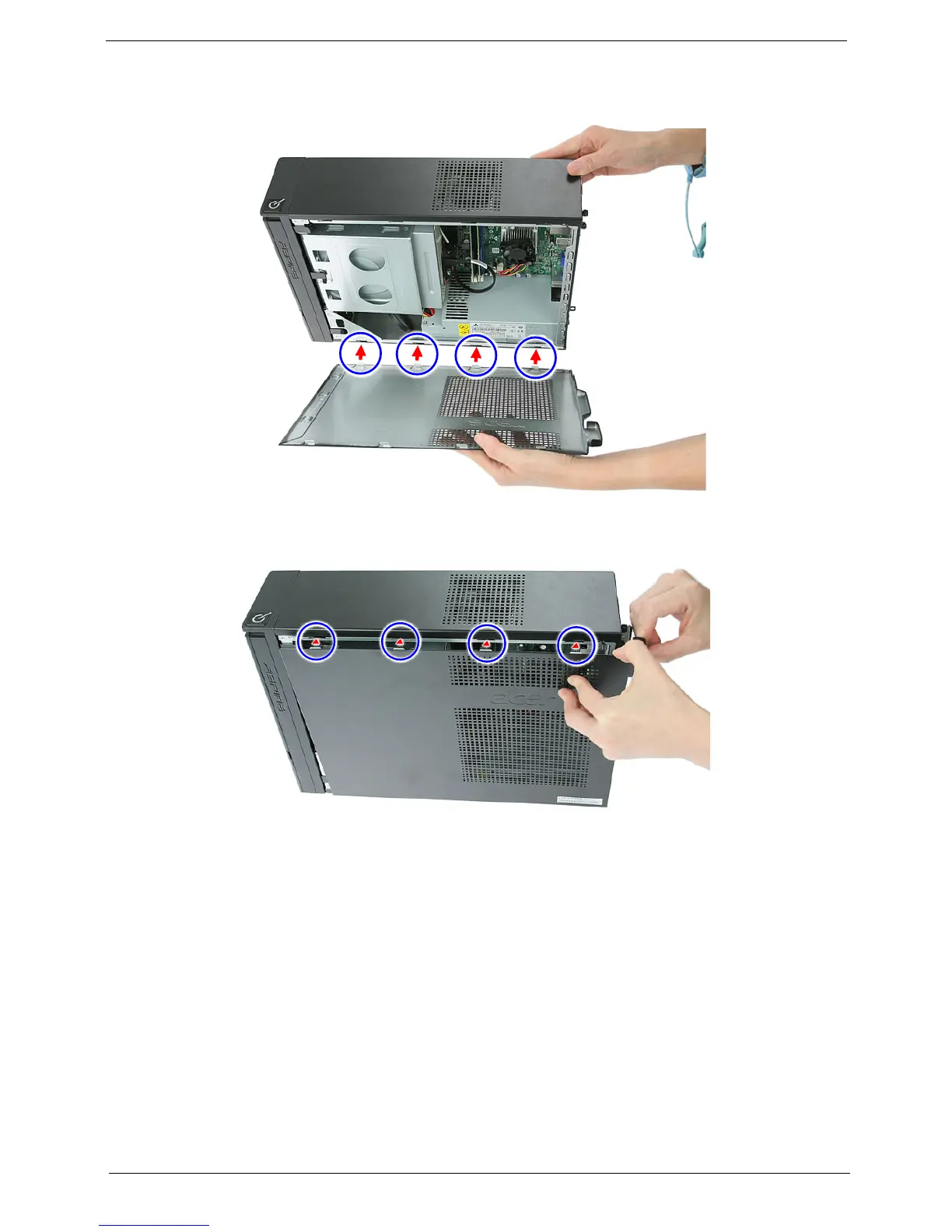

Reinstalling the Side Panel
1. Align the tabs on the lower edge of the side panel with the notches on the bottom side of the chassis.
2. Align the tabs on the upper edge of the side panel with the notches on the top side of the chassis.
