1-18 Disassembly Procedures
Mainboard Removal 0
Prerequisite:
WLAN (Wireless Local Area Network) Module Removal, and
LCD Module Removal
1. Find the mainboard (B) on the top assembly. Refer to Figure 1-12.
2. Disconnect the speaker cable from the mainboard connector (A) (Figure 1-21).
3. Disconnect the touchpad FFC from the mainboard connector (C) (Figure 1-21).
4. Disconnect the keyboard FPC from the mainboard connector (D) (Figure 1-21).
5. Disconnect the LED Board FFC from the mainboard connector (E) (Figure 1-21).
6. Remove three (3) screws (F & G) securing the mainboard in place (Figure 1-21).

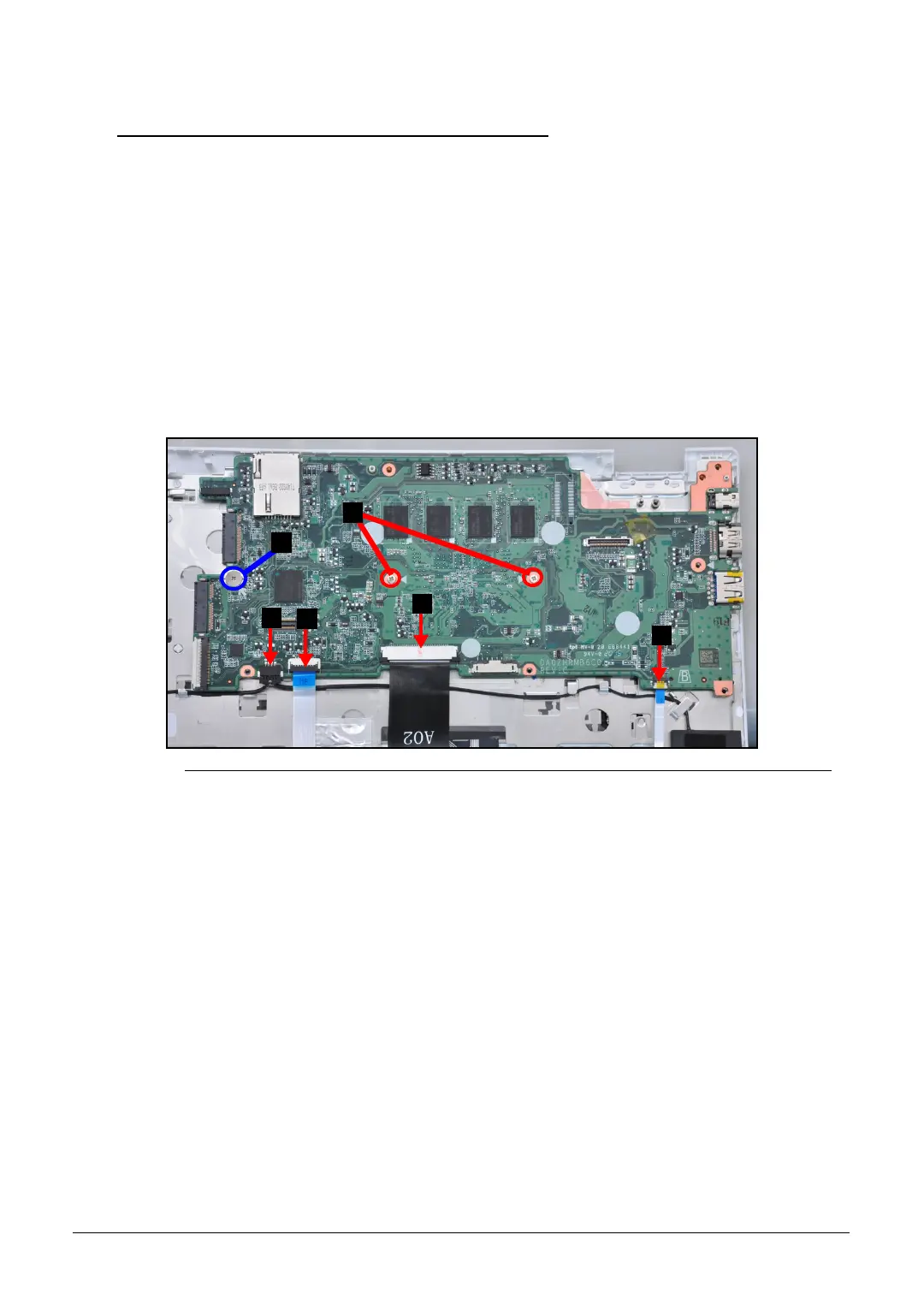

Figure 1-21. Mainboard Connector & Screw Location
To Next Page
