- UPGRADING YOUR COMPUTER
Graphic board
The computer contains one or two Graphic boards installed in
the PCIE x16 slots. The detail configuration will be differed by
different models.

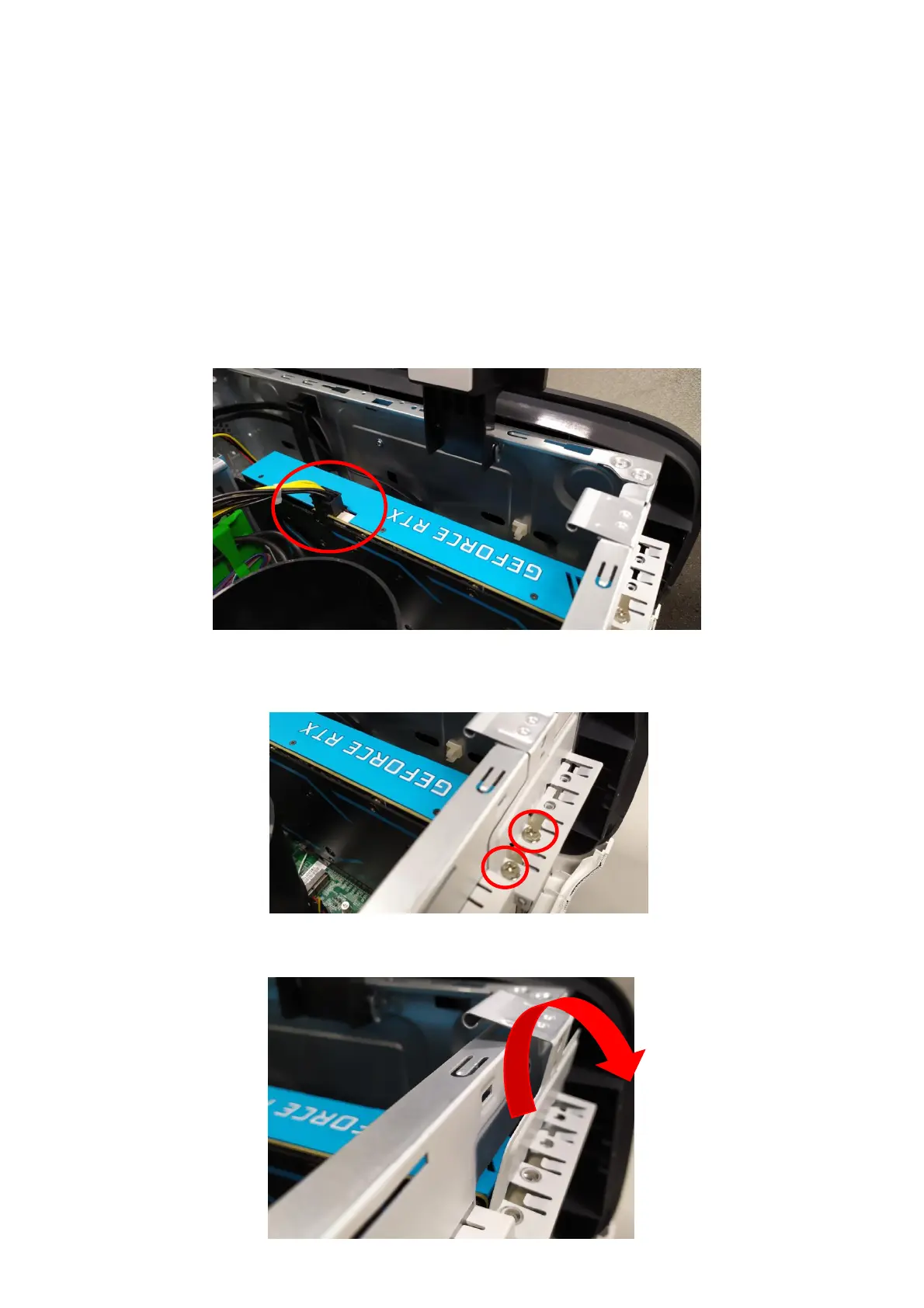

Removing the Graphic board
1. Perform Pre-installation instructions on page 2.
2. Disconnect the power cables from the Graphic board.
3. Remove the screw that secure the Graphic boards to
the chassis.
4. Unlatch the metal clip that secure the graphics board
to the chassis.
To Next Page
