15

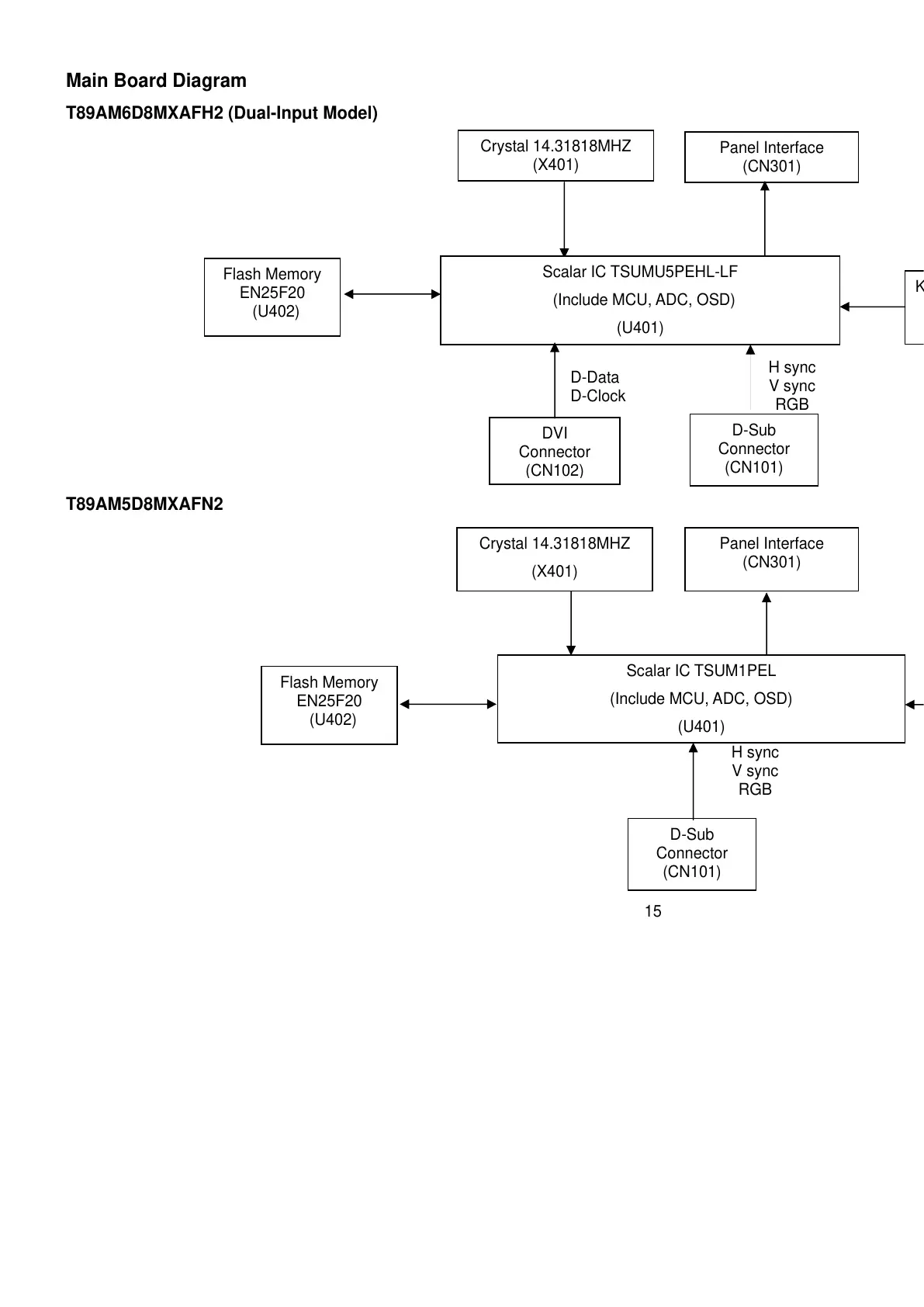

Main Board Diagram
T89AM6D8MXAFH2 (Dual-Input Model)
T89AM5D8MXAFN2
Flash Memory
EN25F20
(U402)
Panel Interface
(CN301)
Crystal 14.31818MHZ
(X401)
Key control Interface
(CN402)
Scalar IC TSUMU5PEHL-LF
(Include MCU, ADC, OSD)
(U401)
D-Sub
Connector
(CN101)
H sync
V sync
RGB
DVI
Connector
(
CN102
)
D-Data
D-Clock
Flash Memory
EN25F20
(U402)
Panel Interface
(CN301)
Crystal 14.31818MHZ
(X401)
Key control Interface
(CN402)
Scalar IC TSUM1PEL
(Include MCU, ADC, OSD)
(U401)
D-Sub
Connector
(CN101)
H sync
V sync
RGB
