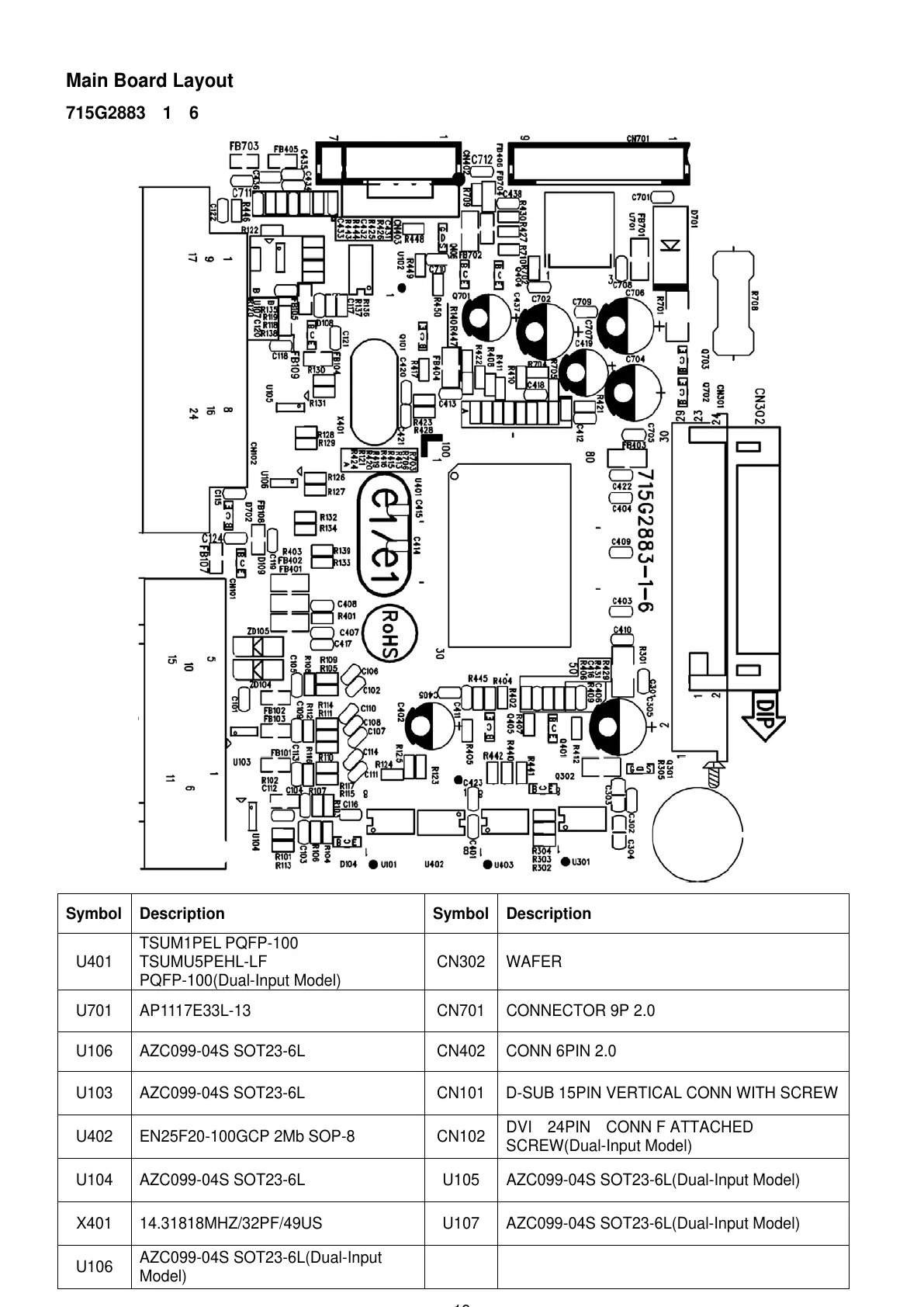

Main Board Layout
715G2883 1 6
Symbol Description Symbol Description
U401
TSUM1PEL PQFP-100
TSUMU5PEHL-LF
PQFP-100(Dual-Input Model)
CN302 WAFER
U701 AP1117E33L-13 CN701 CONNECTOR 9P 2.0
U106 AZC099-04S SOT23-6L CN402 CONN 6PIN 2.0
U103 AZC099-04S SOT23-6L CN101 D-SUB 15PIN VERTICAL CONN WITH SCREW
U402 EN25F20-100GCP 2Mb SOP-8 CN102
DVI 24PIN CONN F ATTACHED
SCREW(Dual-Input Model)
U104 AZC099-04S SOT23-6L U105 AZC099-04S SOT23-6L(Dual-Input Model)
X401 14.31818MHZ/32PF/49US U107 AZC099-04S SOT23-6L(Dual-Input Model)
U106
AZC099-04S SOT23-6L(Dual-Input
Model)
