31

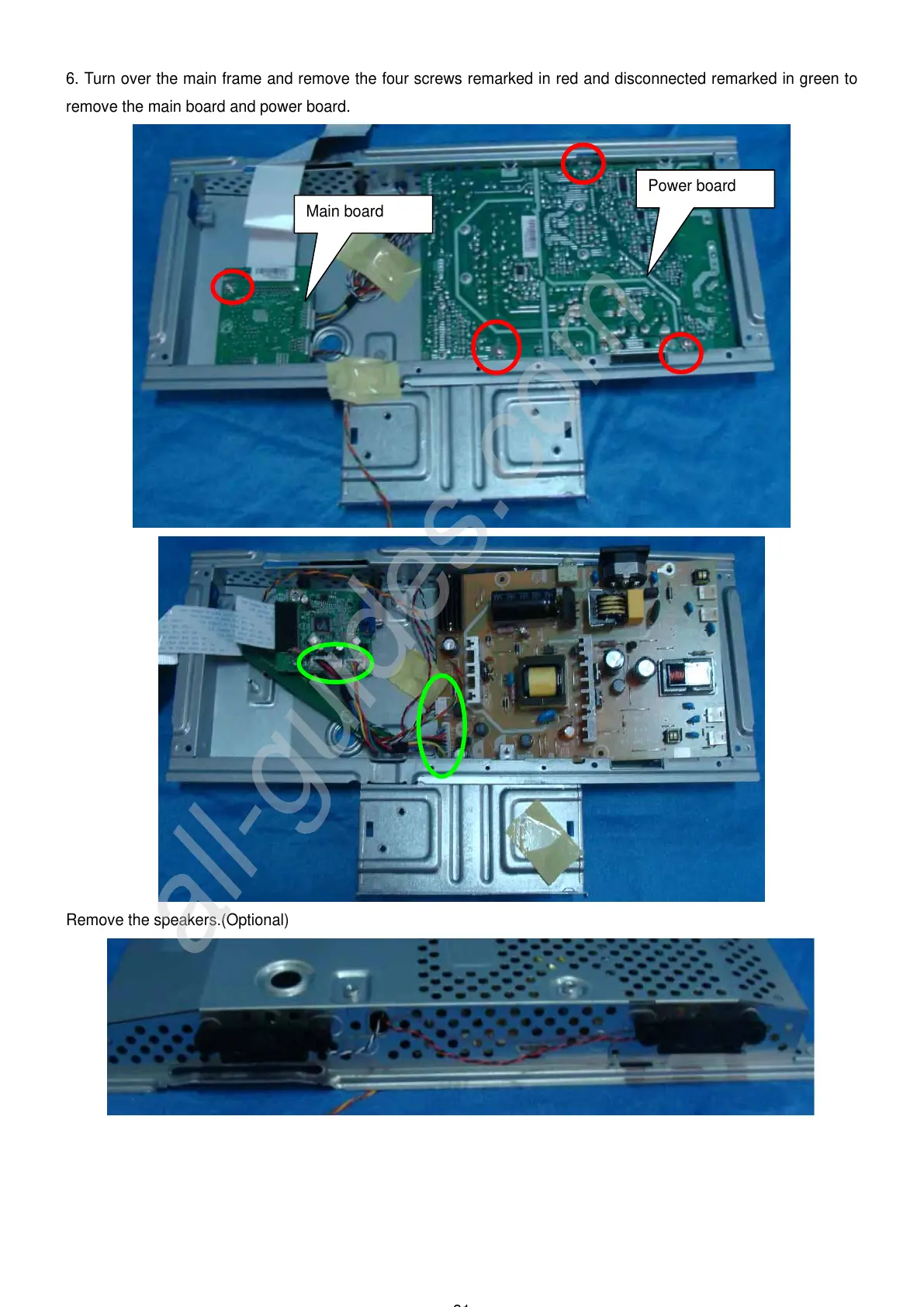

6. Turn over the main frame and remove the four screws remarked in red and disconnected remarked in green to
remove the main board and power board.
Remove the speakers.(Optional)
Main board
Power board
