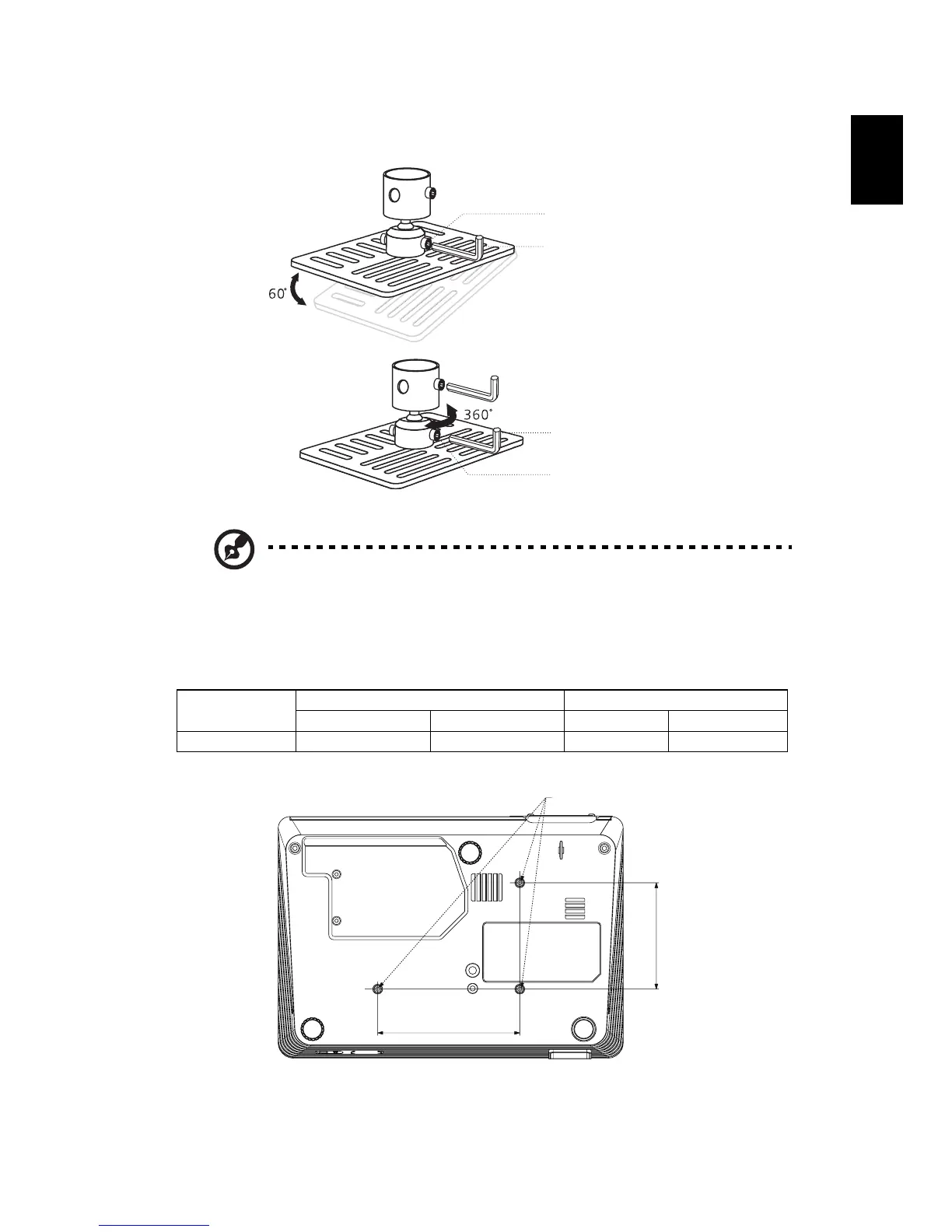

5 Adjust the angle and positioning as necessary.
Note: The appropriate type of screw and washer for each model is
listed in the table below. 3 mm diameter screws are enclosed in
the screw pack.
Models Screw Type B Washer Type
Diameter (mm) Length (mm) Large Small
H5350 3 20 V V
Tightening Screw
Allen Key
Allen Key
Tightening Screw
110,00 mm
82,30 mm
SCREW SPEC. M3 x 20 mm
