12

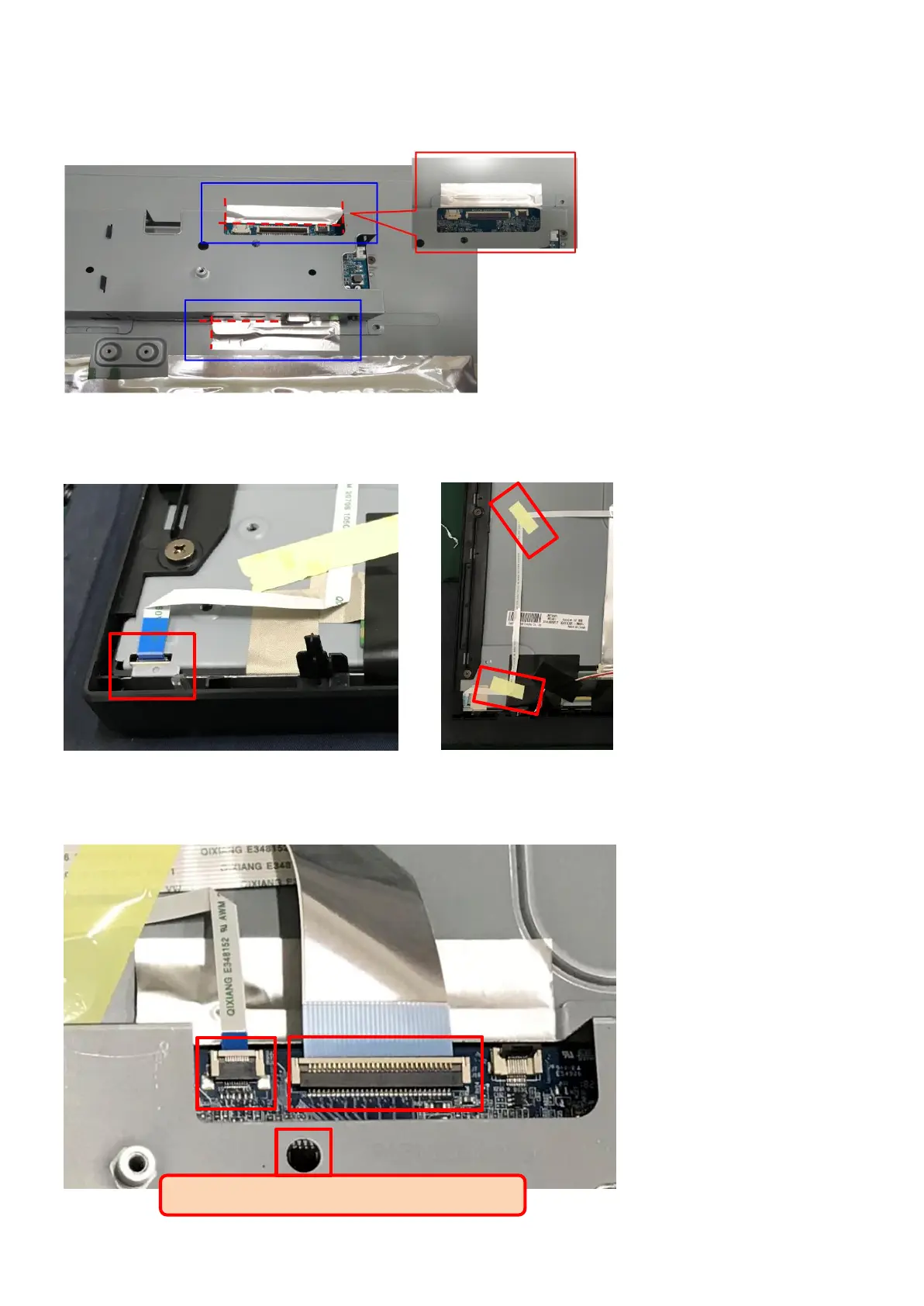

Step4. Use Al tape to fix shielding (tape in blue circle).
Step5. Insert 10 pin back light FFC to panel and main board, use yellow tape to fix. (Tape in red circle).
Step6. Insert 10 pin back light FFC and 30 pin LVDS FFC to main board. Use yellow tape to fix.
