Assembly Procedure

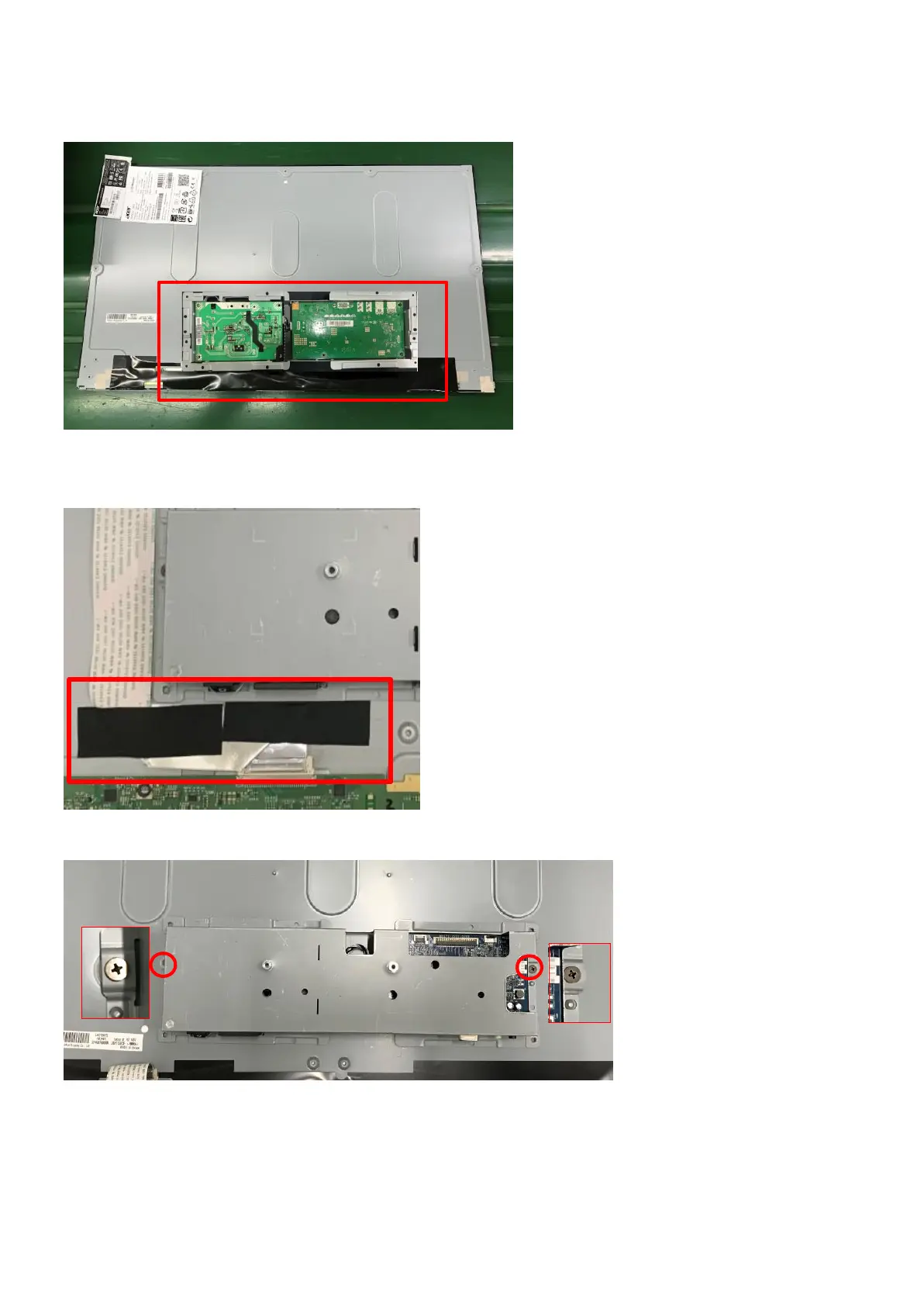

Step1. Assembly main board into shielding, use screw to fix. Assembly main board on LCM.
Step2. Insert 30 pin LVDS FFC to LCM,
Step3. Lock the shielding on panel with screw. (in red circle)
