9

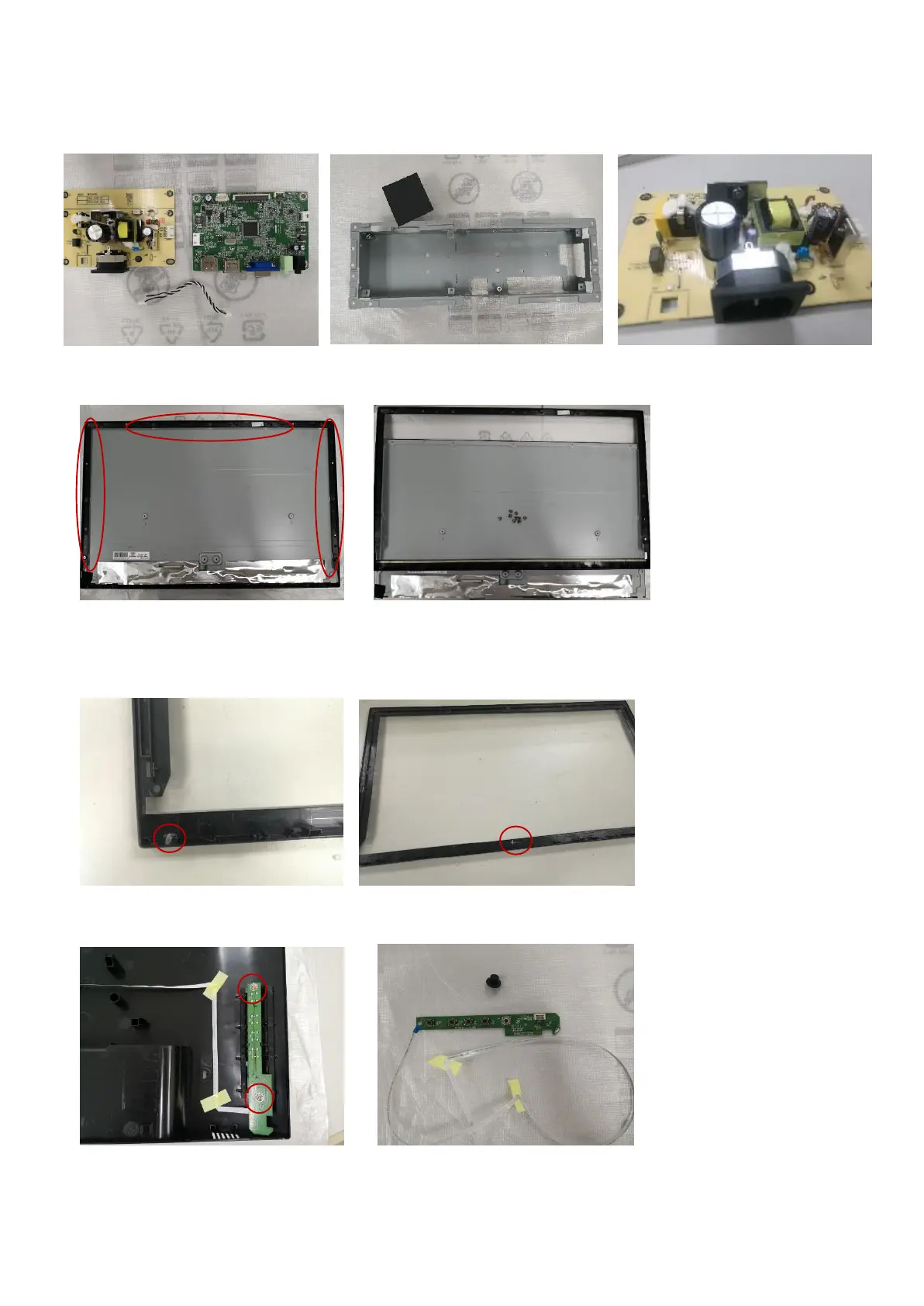

Step.8 Remove connecter cable and separate main board and power board, separate mylar and shielding
Step.9 Unscrew eleven screws and separate MID FRAME and LCM
Step.10 Separate lens from MID frame
Step.11 Unscrew two screws and disassemble key board from rear cover and separate navi key& cable
