6.Schematics and Layouts

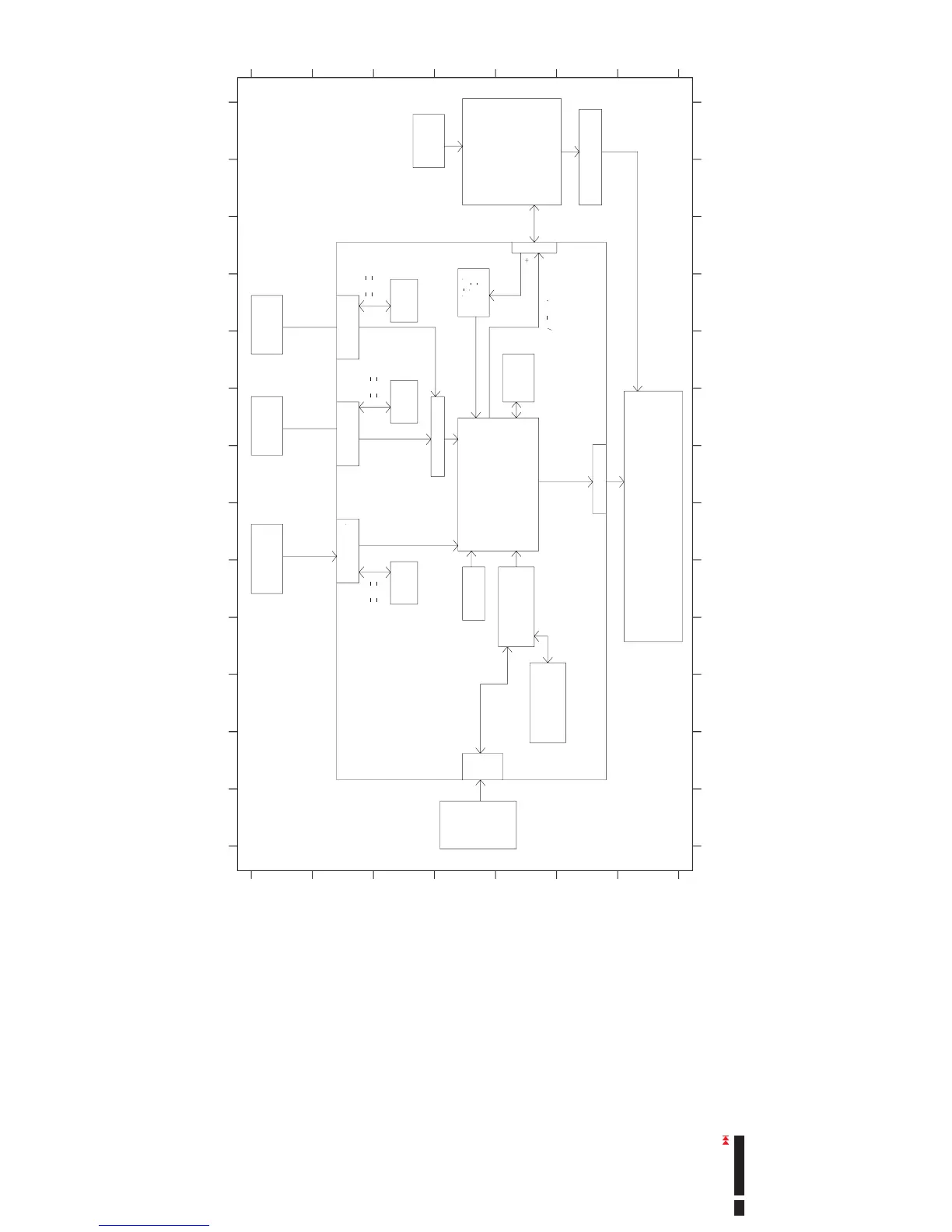

_6.1 SCHEMATICS BLOCK DIAGRAMACER_LCD_P243W_
PCB No.
Analog Video Input
DSUB
Scaler MST 9259D
Function Key Board
DDC 24LC02B
DC DC 5v 3 3v 33v 18v
Power Board
AC 110 220v/ Input
LVDS
I314
5V
P301 I320 I326
I312
P304
Brightness Inv On Off
P306
D SUB SCL
D SUB SDA
LCD Module
Digital Video Input
DVI D-
RGBHsVs,,, ,
TMDS
P305
DDC 24LC02B
HDMI
Digital Video Input
I322
Switch
I321
DDC SCL D
DDC SDA D
DDC 24LC02B
I313
P311
P303
LTM240CT03 LTM240CT01
I302
Flash W39L040Ap70Z I307
MCU W79L659A25FL XTAL 14 3MHZ.
I306
DDC SCL D1
DDC SDA D1
Inverter Board
DDR
I315
EM6A9320BI
1234567 8910111213
1234567 8910111213
A B C D E F G
A B C D E F G
