Acer P5271 Series User Manual

4
English

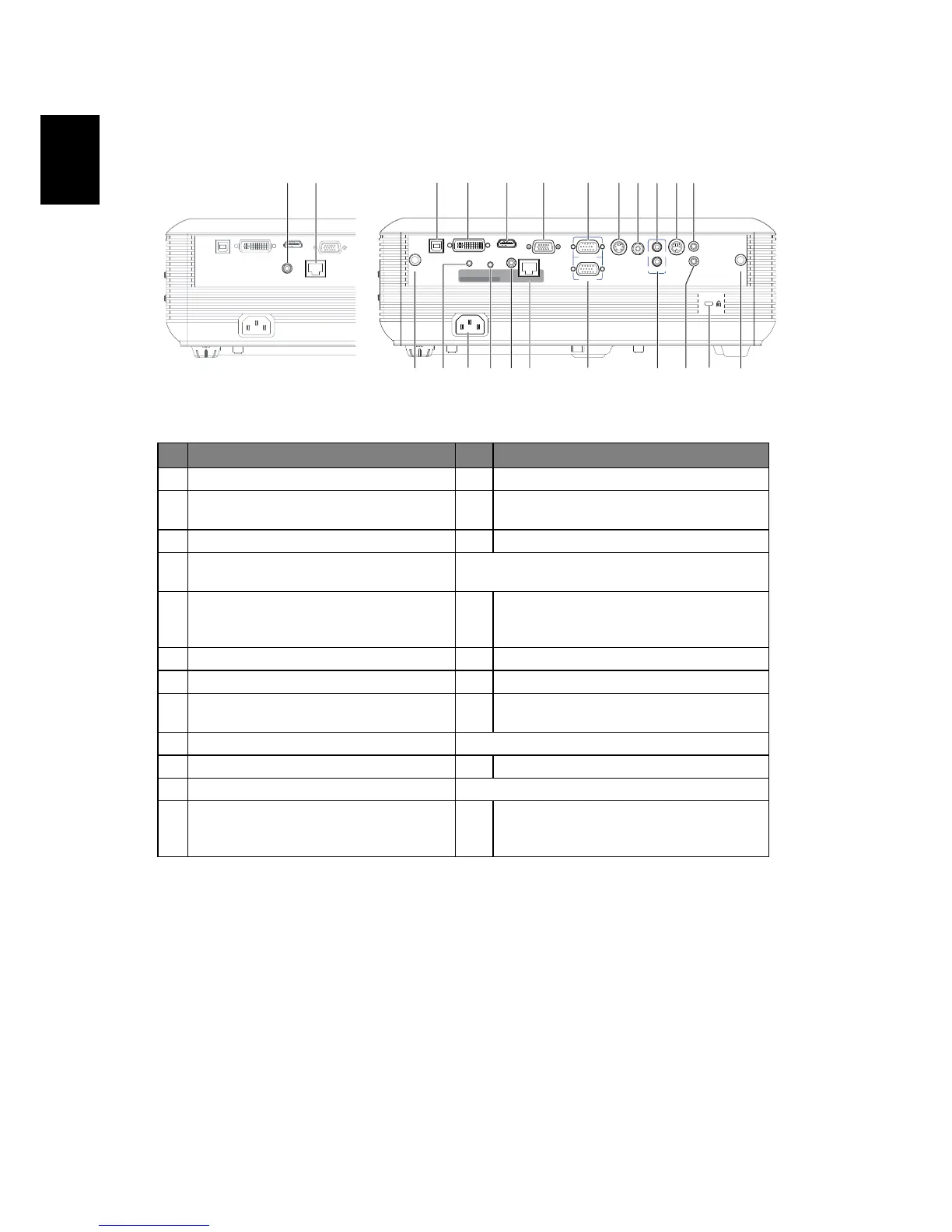

Rear side
# Description # Description
1 USB connector 13 Audio input connector (VGA IN 2/ DVI)
2
DVI input connector (for digital signal
with HDCP function)
14 Wired IR remote input connector
3 HDMI connector 15 Kensington™ lock port
4
Monitor loop-through output
connector (VGA-Out)
Below items are for P5271i only:
5
PC analog signal/HDTV/SCART/
component video input connector
(VGA IN 1)
16 Antenna
6 S-Video input connector 17 Power LED for wireless
7 Composite video input connector 18 Reset button
8
Audio input connector (VGA IN 1/
Component/Composite/S-Video/HDMI)
19 Audio output connector for wireless
9 RS232 connector Below item is for P5271i and P5271n only:
10 Audio output connector 20 LAN (RJ45 Port for 10/100M Ethernet)
11 Power socket Below item is for P5271n only:
12
PC analog signal/HDTV/SCART/
component video input connector
(VGA IN 2)
21
DC Output
ANTENNA
DVI
HDMI
VGA OUT
VGA IN 1
VGA IN 2
S-VIDEO VIDEO
AUDIO IN 1
AUDIO OUT
OUT
AUDIO
AUDIO IN 2
RS232
LAN
POWER RESET
WIRELESS
USB
WIRED REMOTE
1 2 3 4 5 6 7 8 9 10
11 1512 13 1416 17 18 19 20 16
ANTENNA
DVI
HDMI
VGA OUT
USB
LAN
DC OUT
21 20
