Acer P5271 Series User Manual

9
English
Getting Started

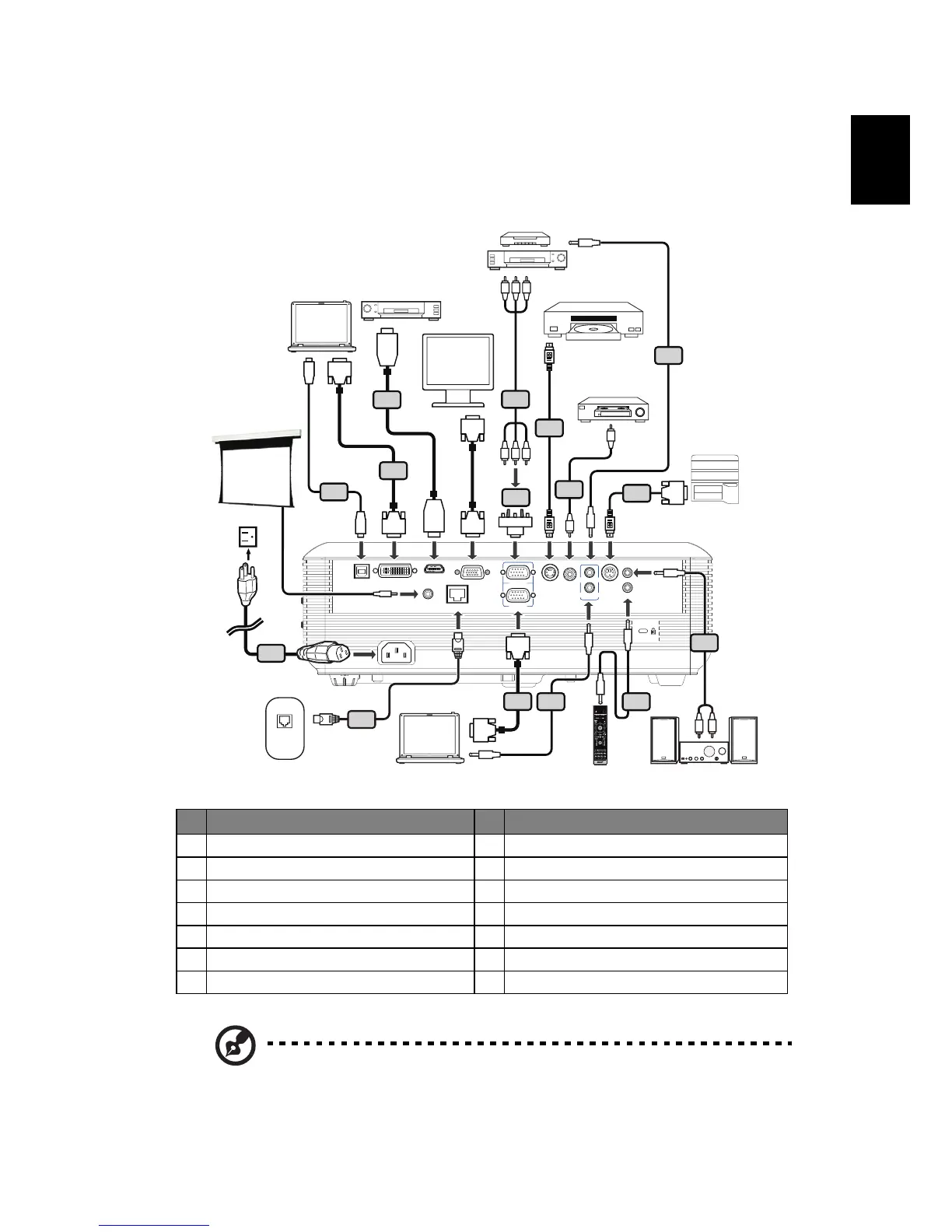

Connecting the Projector
Note: To ensure the projector works well with your computer,
please make sure the timing of the display mode is compatible
with the projector.
# Description # Description
1Power cord 8DVI cable
2 VGA cable 9 HDMI cable
3 Composite video cable 10 3 RCA component cable
4 USB cable 11 RS232 cable
5 VGA to component/HDTV adapter 12 Audio cable Jack/RCA
6 S-Video cable 13 LAN Cable
7 Audio cable jack/jack 14 Audio cable jack for wired remote
LAN
DC OUT
DVI
HDMI
VGA OUT
VGA IN 1
VGA IN 2
S-VIDEO VIDEO
AUDIO IN 1
AUDIO OUT
AUDIO IN 2
RS232
LAN
USB
WIRED REMOTE
1
USB
USB
4
DVI
DVI-D
DVI-D
8
D-Sub
D-Sub
HDMI
HDMI
9
RBG
HDTV adapter
RBG
5
10
Y
Y
RS232
RS232
11
VGA
D-Sub
D-Sub
2
3
7
7
12
R
W
6
13
14
DVD player,
Set-top Box,
HDTV receiver
DVD player
S-Video Output
Video Output
Intrnet
