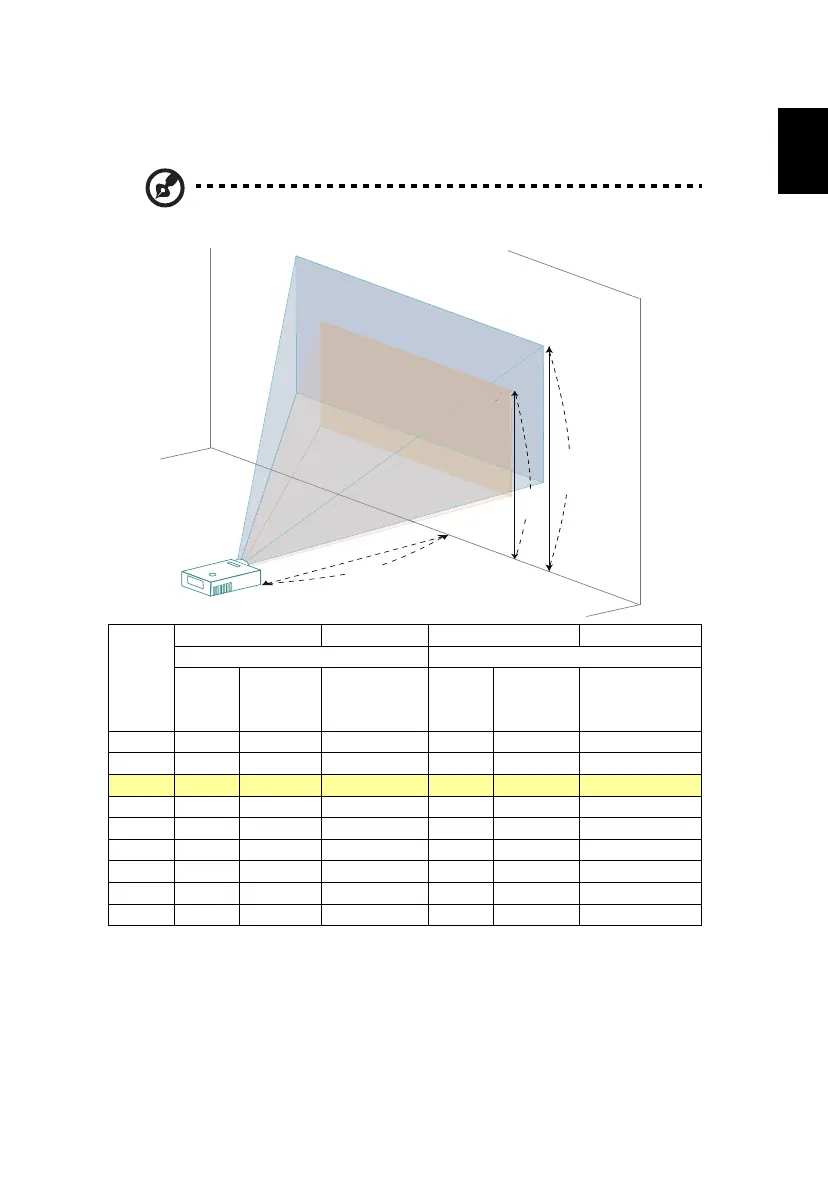

Acer P5630 - Optimizing Image Size and Distance (WXGA Series); WXGA Projection Distance and Screen Size Chart

15
English
• WXGA series
If the projector is 2 m from the screen, good image quality is possible for image
sizes between 60" and 78".
Note: Remind as below figure, the space of 118 cm height is
required when located at 2 m distance.
Desired
Distance
(m)
<A>
Screen size
Top
Screen size
Top
(Min zoom) (Max zoom)
Diagonal
(inch)
<B>
W (cm) x H
(cm)
From base to
top of image
(cm)
<C>
Diagonal
(inch)
<B>
W (cm) x H
(cm)
From base to top
of image (cm)
<C>
1 30 65 x 40 45 39 84 x 53 59
1.5 45 97 x 61 68 59 126 x 79 89
2.0 60 130 x 81 91 78 168 x 105 118
3.0 90 194 x 121 136 117 253 x 158 178
4.0 120 259 x 162 182 156 337 x 221 237
5.0 150 324 x 202 227 196 421 x 263 296
6.0 180 389 x 243 273 235 505 x 316 355
7.0 210 453 x 283 318 274 590 x 369 414
7.7 232 499 x 312 350 301.17 649 x 405 456
Zoom Ratio: 1.3x
78"
60"
60"
0
A
C
B
Height: 118 cm
from base to top
of image
Height:
91 cm
2 m
Desired Distance
M
a
x
s
c
r
e
e
n
s
i
z
e
M
i
n
s
c
r
e
e
n
s
i
z
e
