Acer P5630 - Optimizing Image Size and Distance (1080 p Series); 1080 p Projection Distance and Screen Size Chart

16
English
• 1080p series

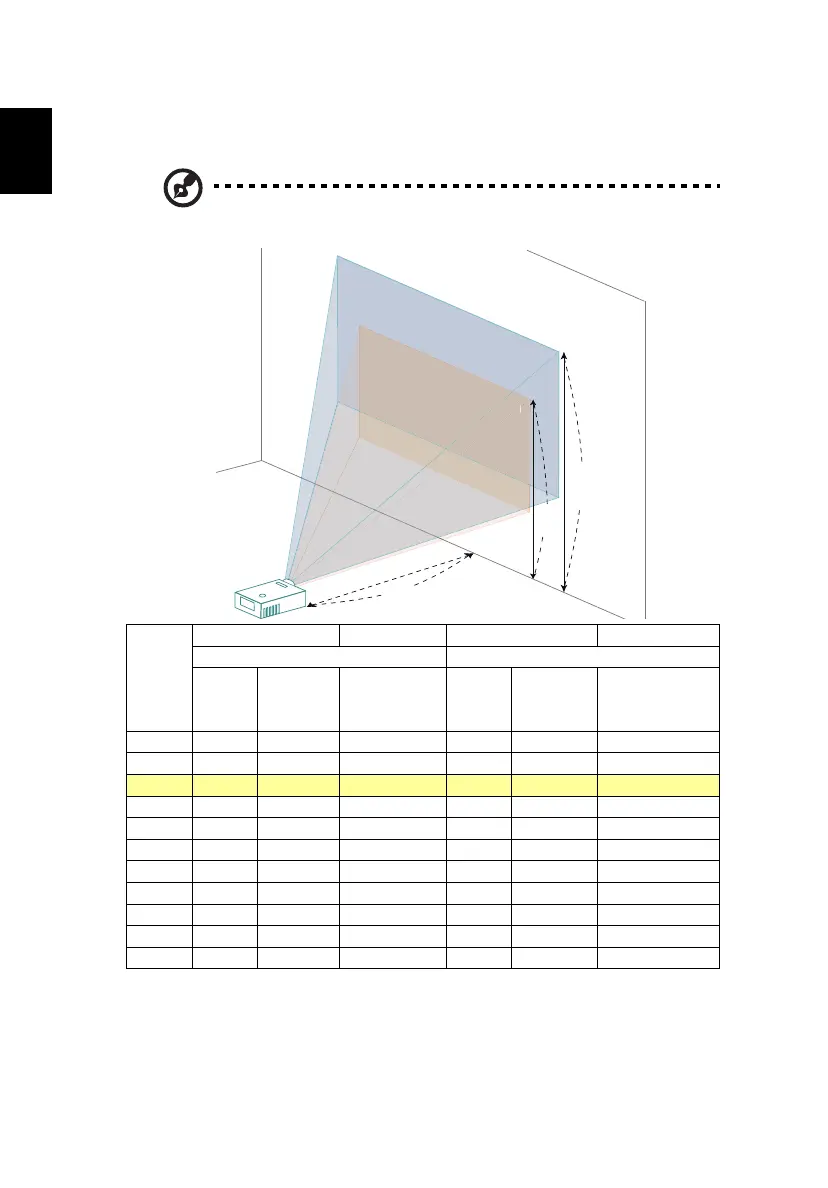

If the projector is 2 m from the screen, good image quality is possible for image
sizes between 61" and 80".
Note: Remind as below figure, the space of 115 cm height is
required when located at 2 m distance.
Desired
Distance
(m)
<A>
Screen size
Top
Screen size
Top
(Min zoom) (Max zoom)
Diagonal
(inch)
<B>
W (cm) x H
(cm)
From base to
top of image
(cm)
<C>
Diagonal
(inch)
<B>
W (cm) x H
(cm)
From base to top
of image (cm)
<C>
1 31 68 x 38 44 40 88 x 50 58
1.5 46 102 x 57 67 60 133 x 75 87
2.0 61 136 x 76 89 80 177 x 100 115
2.5 77 170 x 96 111 100 221 x 124 144
3.0 92 204 x 115 133 120 265 x 149 173
3.5 107 238 x 134 155 140 310 x 174 202
4.0 123 272 x 153 177 160 354 x 199 231
5.0 154 340 x 191 222 200 442 x 249 289
6.0 184 408 x 229 266 240 531 x 299 346
7.0 215 476 x 268 311 280 619 x 348 404
7.5 230 510 x 287 333 299.81 664 x 373 433
Zoom Ratio: 1.3x
80"
61"
61"
1
A
C
B
Height: 115 cm
from base to top
of image
Height:
89 cm
2 m
Desired Distance
