Acer P5630 - Optimizing Image Size and Distance (WUXGA Series); WUXGA Projection Distance and Screen Size Chart

17
English
• WUXGA series

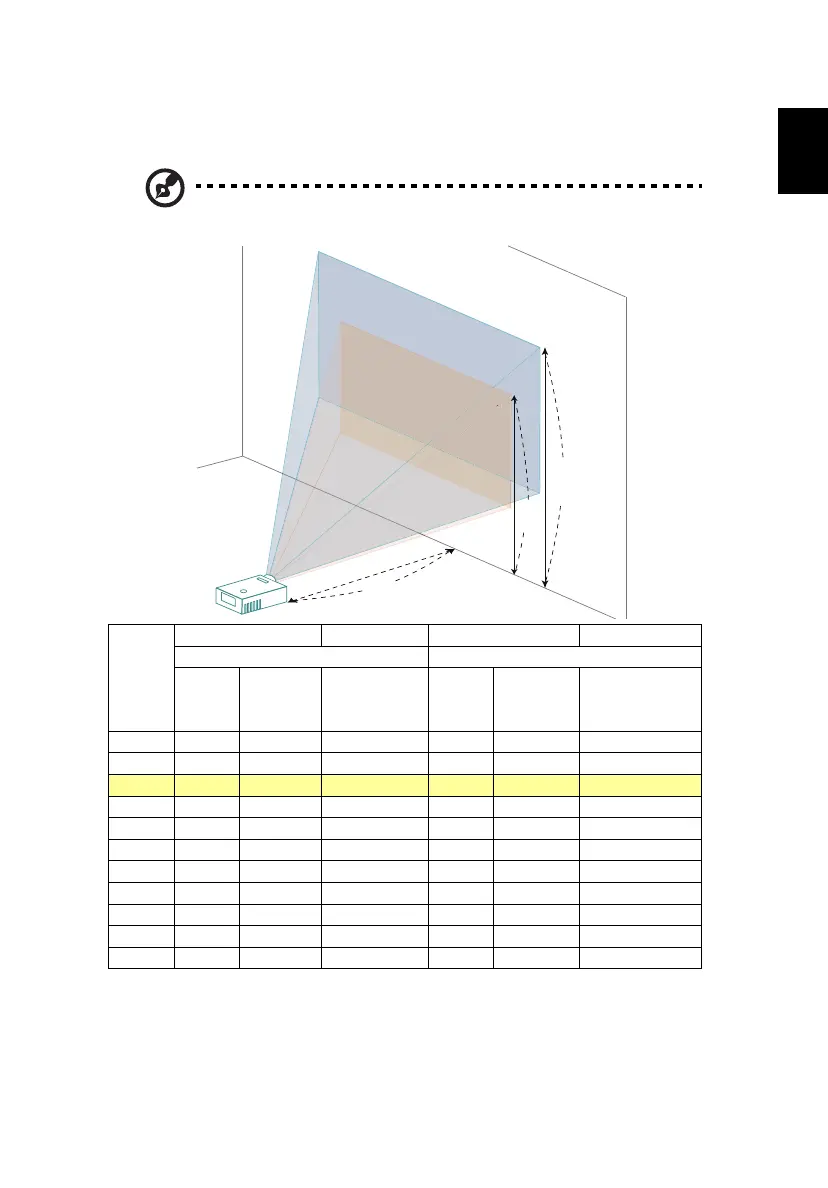

If the projector is 2 m from the screen, good image quality is possible for image
sizes between 63" and 82".
Note: Remind as below figure, the space of 115 cm height is
required when located at 2 m distance.
Desired
Distance
(m)
<A>
Screen size
Top
Screen size
Top
(Min zoom) (Max zoom)
Diagonal
(inch)
<B>
W (cm) x H
(cm)
From base to
top of image
(cm)
<C>
Diagonal
(inch)
<B>
W (cm) x H
(cm)
From base to top
of image (cm)
<C>
1 32 68 x 42 44 41 88 x 55 58
1.5 47 102 x 64 66 62 133 x 83 86
2.0 63 136 x 85 88 82 177 x 111 115
2.5 79 170 x 106 110 103 221 x 138 144
3.0 95 204 x 127 133 123 265 x 166 173
3.5 110 238 x 149 155 144 310 x 194 201
4.0 126 272 x 170 177 164 354 x 221 230
5.0 158 340 x 212 221 205 442 x 277 288
6.0 189 408 x 255 265 247 531 x 332 345
7.0 221 476 x 297 309 288 619 x 387 403
7.3 230 496 x 310 323 299.93 646 x 404 420
Zoom Ratio: 1.3x
82"
63"
63"
3
A
C
B
Height: 115 cm
from base to top
of image
Height:
88 cm
2 m
Desired Distance
M
a
x
s
c
r
e
e
n
s
i
z
e
M
i
n
s
c
r
e
e
n
s
i
z
e
