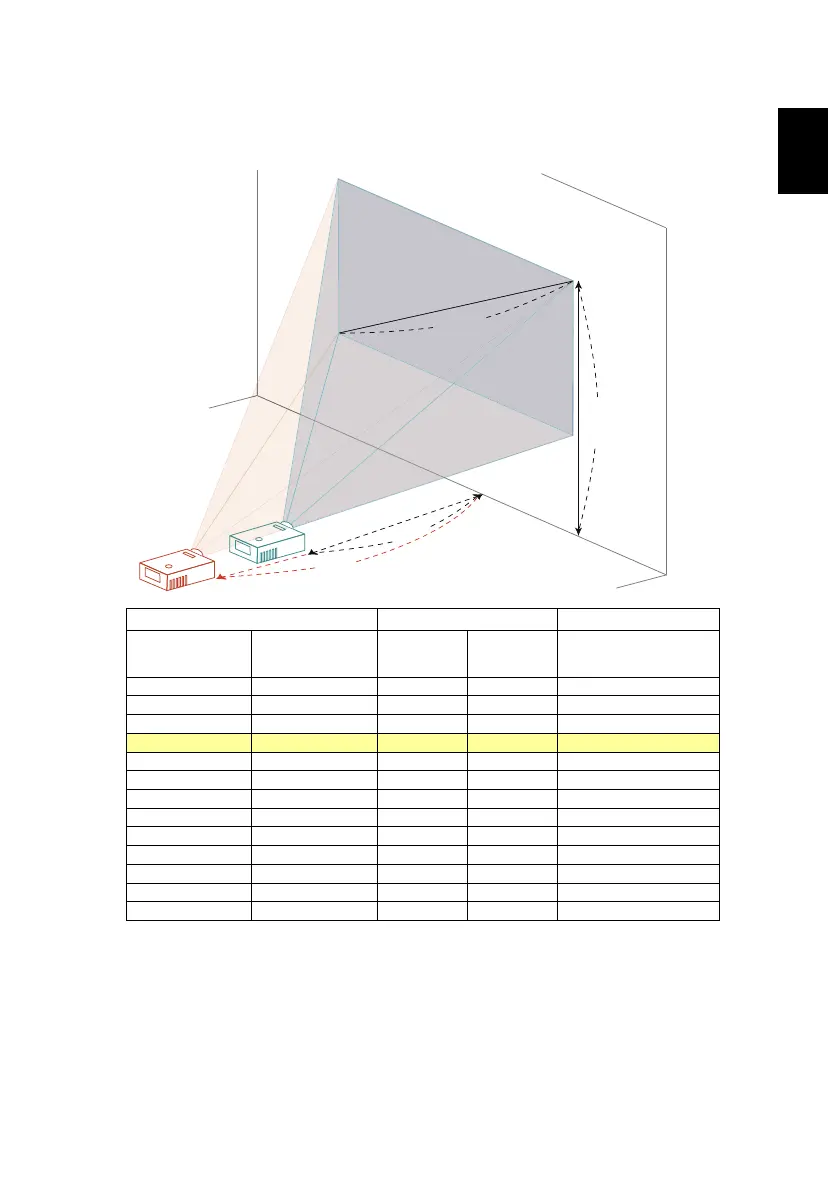

Acer P5630 - Adjusting Image Size with Distance and Zoom (WXGA); WXGA Series Image Size Adjustment Guide

19
English
• WXGA series
To obtain an image size of 60" set the projector at a distance 1.5 m and 2.0 m
from the screen.
Desired Image Size Distance (m) Top (cm)
Diagonal (inch)
<A>
W (cm) x H (cm)
Max zoom
<B>
Min zoom
<C>
From base to top of
<D>
30 65 x 40 0.8 1.0 45
40 86 x 54 1.0 1.3 61
50 108 x 67 1.3 1.7 76
60 129 x 81 1.5 2.0 91
70 151 x 94 1.8 2.3 106
80 172 x 108 2.0 2.7 121
90 194 x 121 2.3 3.0 136
100 215 x 135 2.6 3.3 151
150 323 x 202 3.8 5.0 227
180 388 x 242 4.6 6.0 272
200 431 x 269 5.1 6.7 303
250 538 x 337 6.4 8.3 378
300 646 x 404 7.7 454
Zoom Ratio: 1.3x
A
C
D
B
Desired Distance
2.0 m
1.5 m
Height: 91 cm
from base to top of
60"
Desired
image size
