• 1080p series

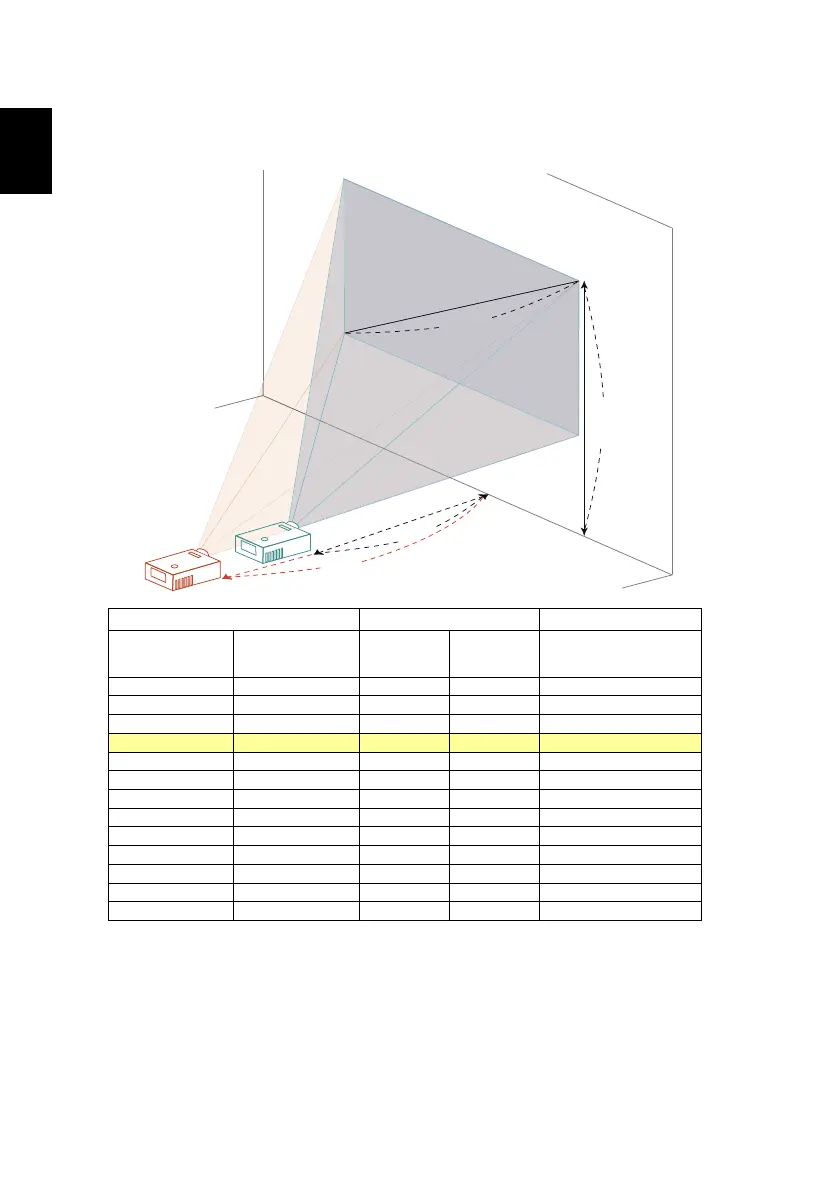

To obtain an image size of 60" set the projector at a distance 1.5 m and 2.0 m
from the screen.
Desired Image Size Distance (m) Top (cm)
Diagonal (inch)
<A>
W (cm) x H (cm)
Max zoom
<B>
Min zoom
<C>
From base to top of
<D>
30 66 x 37 0.8 1.0 43
40 89 x 50 1.0 1.3 58
50 111 x 62 1.3 1.6 72
60 133 x 75 1.5 2.0 87
70 155 x 87 1.8 2.3 101
80 177 x 100 2.0 2.6 116
90 199 x 112 2.3 2.9 130
100 221 x 125 2.5 3.3 144
150 332 x 187 3.8 4.9 217
180 398 x 224 4.5 5.9 260
200 443 x 249 5.0 6.5 289
250 553 x 311 6.3 8.1 361
300 664 x 374 7.5 433
Zoom Ratio: 1.3x
A
C
D
B
Desired Distance
2.0 m
1.5 m
Height: 87 cm
from base to top of
60"
Desired
image size
