Acer P5630 - Adjusting Image Size with Distance and Zoom (WUXGA); WUXGA Series Image Size Adjustment Guide

21
English
• WUXGA series

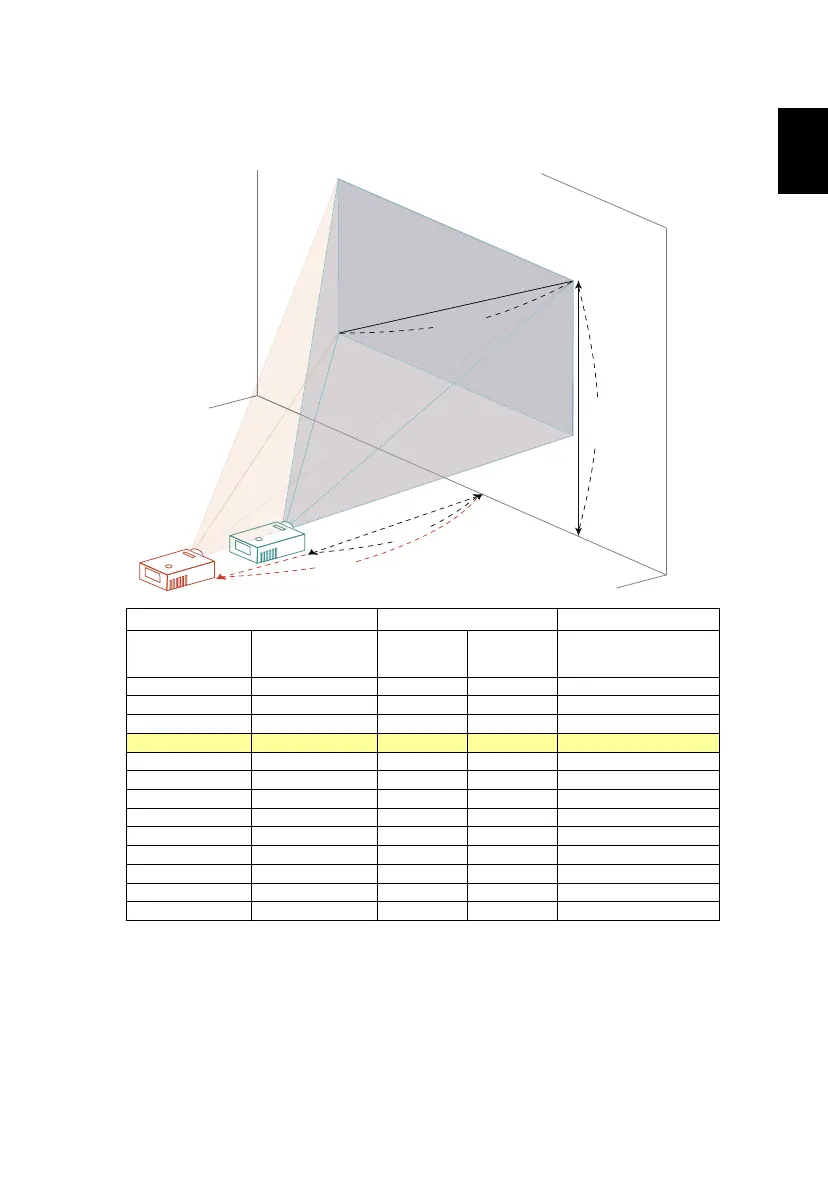

To obtain an image size of 60" set the projector at a distance 1.5 m and 1.9 m
from the screen.
Desired Image Size Distance (m) Top (cm)
Diagonal (inch)
<A>
W (cm) x H (cm)
Max zoom
<B>
Min zoom
<C>
From base to top of
<D>
30 65 x 40 0.7 1.0 42
40 86 x 54 1.0 1.3 56
50 108 x 67 1.2 1.6 70
60 129 x 81 1.5 1.9 84
70 151 x 94 1.7 2.2 98
80 172 x 108 1.9 2.5 112
90 194 x 121 2.2 2.9 126
100 215 x 135 2.4 3.2 140
150 323 x 202 3.7 4.8 210
180 388 x 242 4.4 5.7 252
200 431 x 269 4.9 6.3 280
250 538 x 337 6.1 7.9 350
300 646 x 404 7.3 420
Zoom Ratio: 1.3x
A
C
D
B
Desired Distance
1.9 m
1.5 m
Height: 84 cm
from base to top of
60"
Desired
image size
