Acer V193 - Page 28

- 28 -

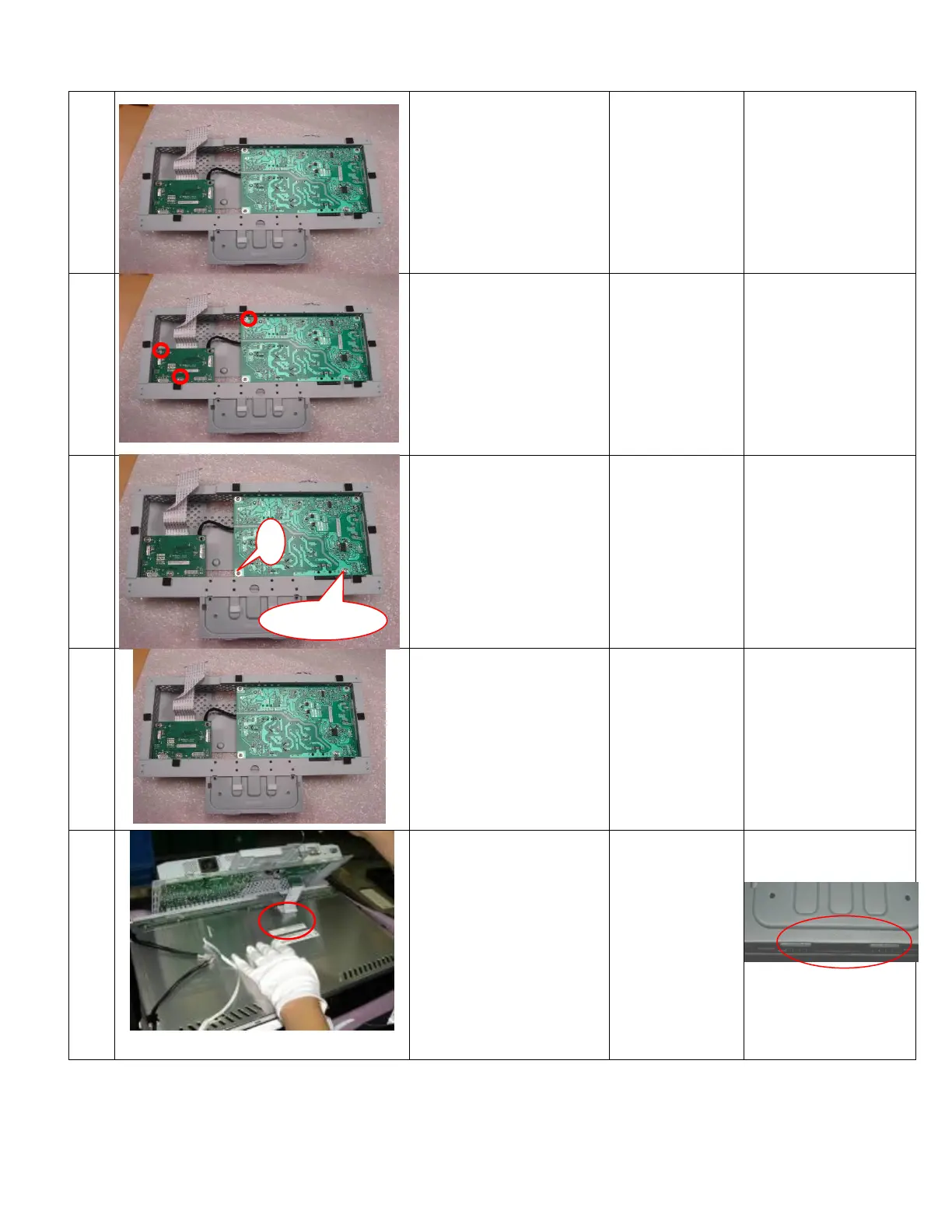

9
Assemble the PCBA to
Main-SHD
10
Lock 3 screws on the
PCBA board with this
order.
Screw-driver
11
Lock 2 screws on the SPS
board with order.
Screw-driver
12
Scan for fooling
PC
Card go with panel.
13
Fasten the LVDS to panel
and fix the Main-BKT to
CLM-F
The BKT must fixed
into the clip of the BZL
1
