Acer XR342CK - 19-pin color display signal cable

English

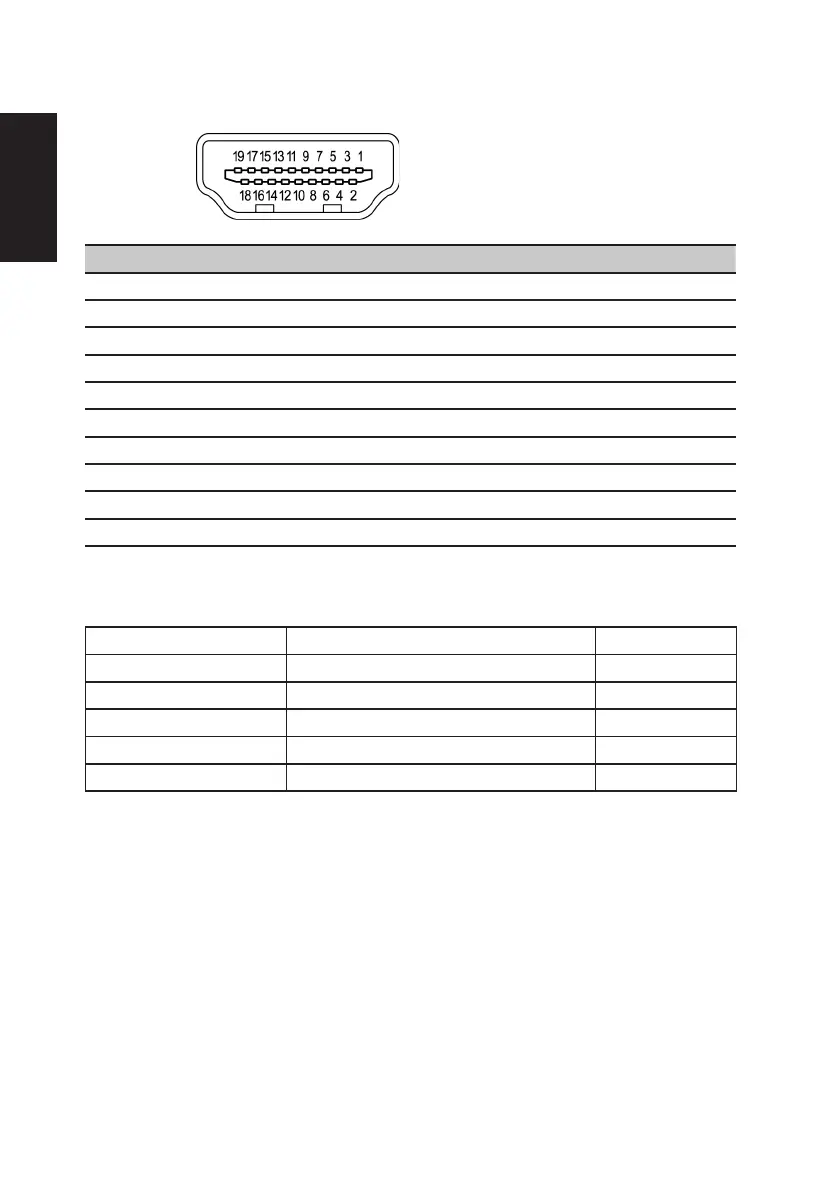

19-pin color display signal cable
PIN No. Description PIN No. Description
1 TMDS Data2+ 2 TMDS Data2 Shield
3 TMDS Data2- 4 TMDS Data1+
5 TMDS Data1 Shield 6 TMDS Data1-
7 TMDS Data0+ 8 TMDS Data0 Shield
9 TMDS Data0- 10 TMDS Clock+
11 TMDS Clock Shield 12 TMDS Clock-
13 CEC 14 Reserved (N.C. on device)
15 SCL 16 SDA
17 DDC/CEC Ground 18 +5V Power
19 Hot Plug Detect
Daisy chain
Daisy-chain scenario Total bandwidth Support status
QHD 144hz+ FHD QHD @ 144Hz (586Mhz)+FHD No support
QHD 144hz+ FHD nVidia QHD @ 144Hz(538.76MHz)+FHD No support
QHD 60hz x3 No support
QHD 60hz x2 Support
FHD 60hz x3 Support
