XR343CK User Guide English7
Display Data Channel (DDC)
To make installation easier, so long as your system supports the DDC protocol, the
monitor is able to plug-and-play. The DDC is a communication protocol through
which the monitor automatically informs the host system about its capabilities; for
example, supported resolutions and corresponding timing. The monitor supports the
DDC2B standard.

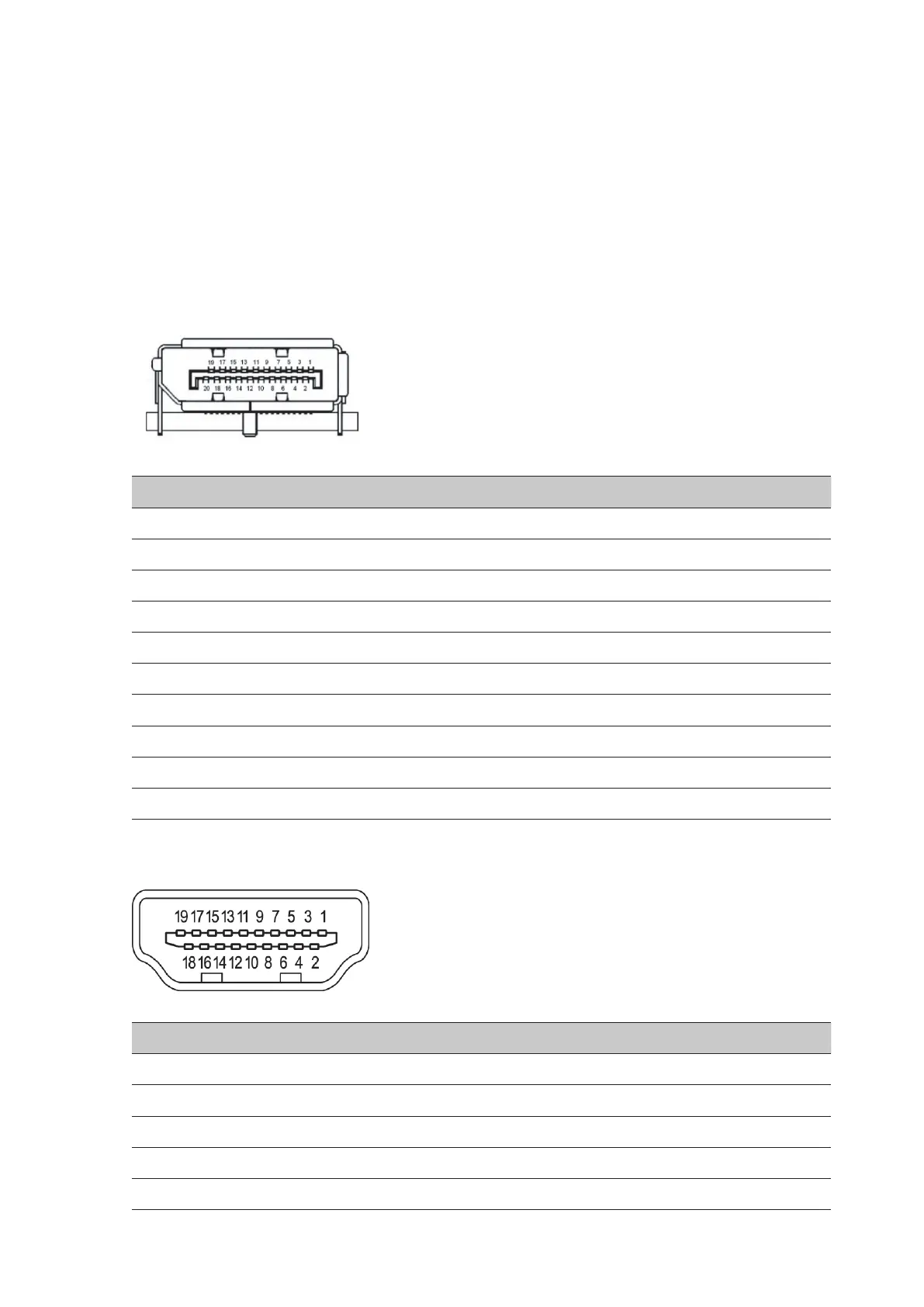

20-pin color display signal cable
PIN No. Description PIN No. Description
1 ML_Lane 0+ 2 GND
3 ML_Lane 0- 4 ML_Lane 1+
5 GND 6 ML_Lane 1-
7 ML_Lane 2+ 8 GND
9 ML_Lane 2- 10 ML_Lane 3+
11 GND 12 ML_Lane 3-
13 CONFIG1 14 CONFIG2
15 AUX CH+ 16 GND
17 AUX CH- 18 Hot Plug
19 Return 20 DP_PWR
19-pin color display signal cable
PIN No. Description PIN No. Description
1 TMDS Data2+ 2 TMDS Data2 Shield
3 TMDS Data2- 4 TMDS Data1+
5 TMDS Data1 Shield 6 TMDS Data1-
7 TMDS Data0+ 8 TMDS Data0 Shield
9 TMDS Data0- 10 TMDS Clock+
