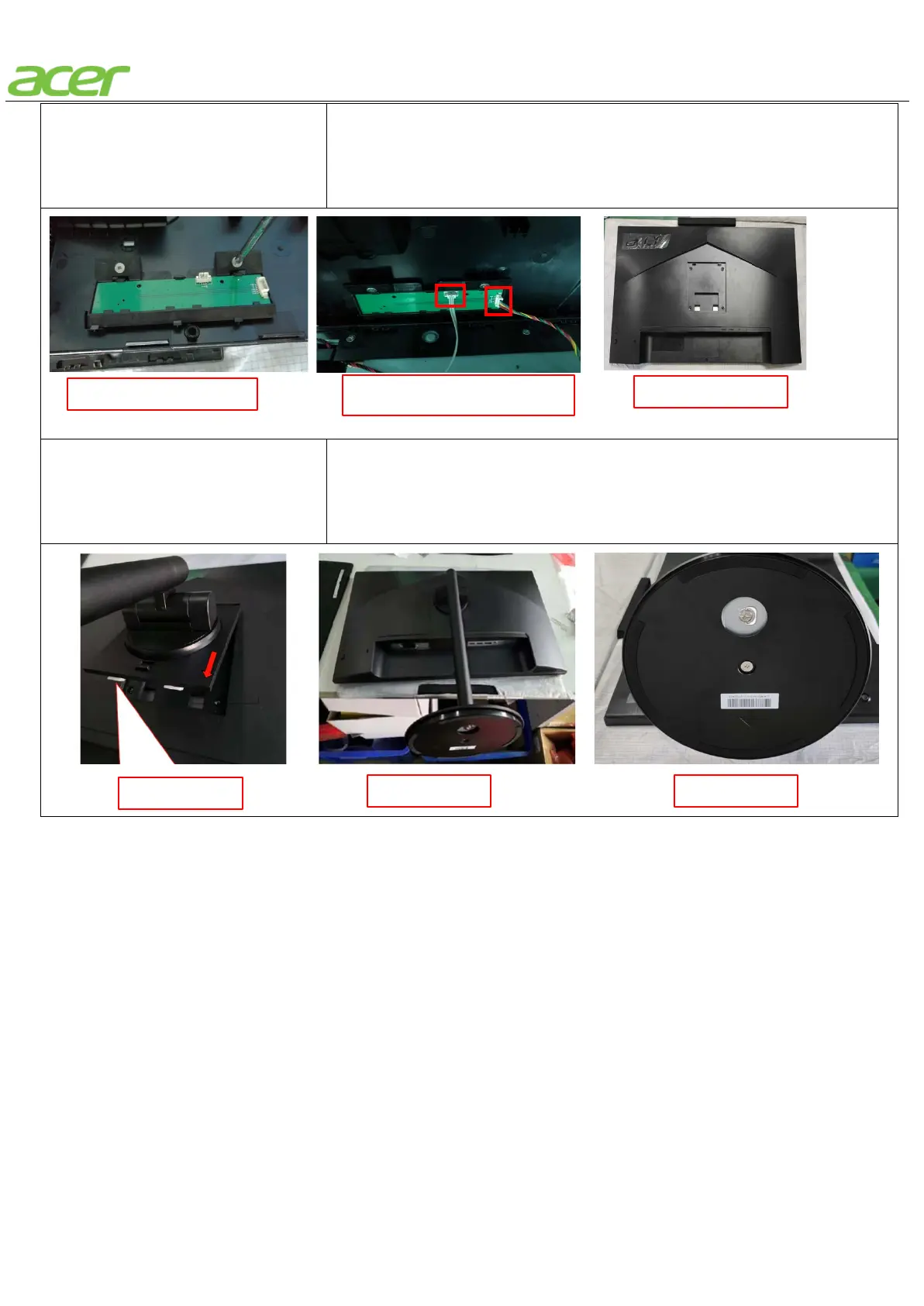

Assemble back cover
A. Load the keypad board on the back cover with screw driver
B. Assemble the keypad board and LED wire to the keypad board
C. Assemble the back cover and press it with hand through bottom, left,
right and top side
S6
Loading back cover screw and
assemble stand and base
A. Loading three back cover with screw driver
B. Assemble the stand into the back cover
C. Assemble the base by registration mast
D. Load the screw with screw driver
Assemble the Keypad board
Assemble the keypad board wire and
LED wire to keypad board
Assemble back cover
Assemble stand
Assemble base
Load the screw
