Acer XV272K V3

ACER XV272K V3
12
S3

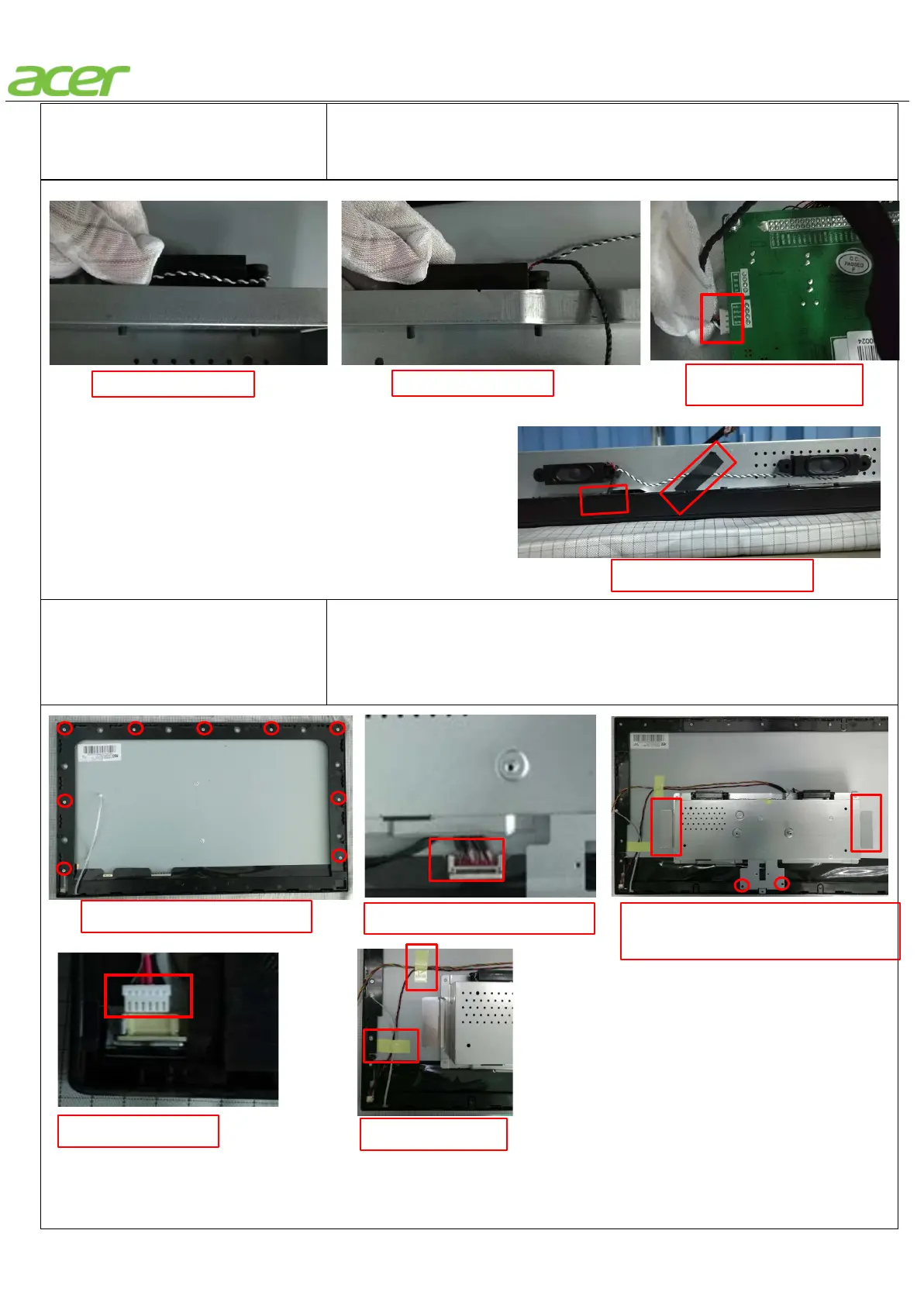

Assemble the Speaker
A. Assemble the speaker on the shielding
B. Assemble the speaker wire on main board
C. Fix the speaker wire on the shielding
S4
Load the middle frame with panel
and assemble the wire from
mainboard to panel
A. Load nine screws of middle frame with screw driver
B. Assemble the LVDS line to panel with jig
C. Fix the shielding
D. Assemble the backlight to panel
E. Fixed backlight and speaker wire with tape
Assemble right speaker
Assemble left speaker
Connect the wire of
speaker on mainboard
Fix the speaker wire with tape
Loading nine screws of middle frame
Assemble the LVDS wire to the panel
Put the shielding into the registration mast of
middle frame and stick Aluminium foil at right
and left side to fix the shielding
Assemble the backlight
Fix the wire with tape
