ACER XV272K V3

4.2 Assembly Procedures

Preparation before assemble:

Clean the room for work

Identify the area for material

Prepare the implement, equipment, materials as bellow：

working table

Screw-

driver

Knife

glove

cleaning

cloth ESD

protection

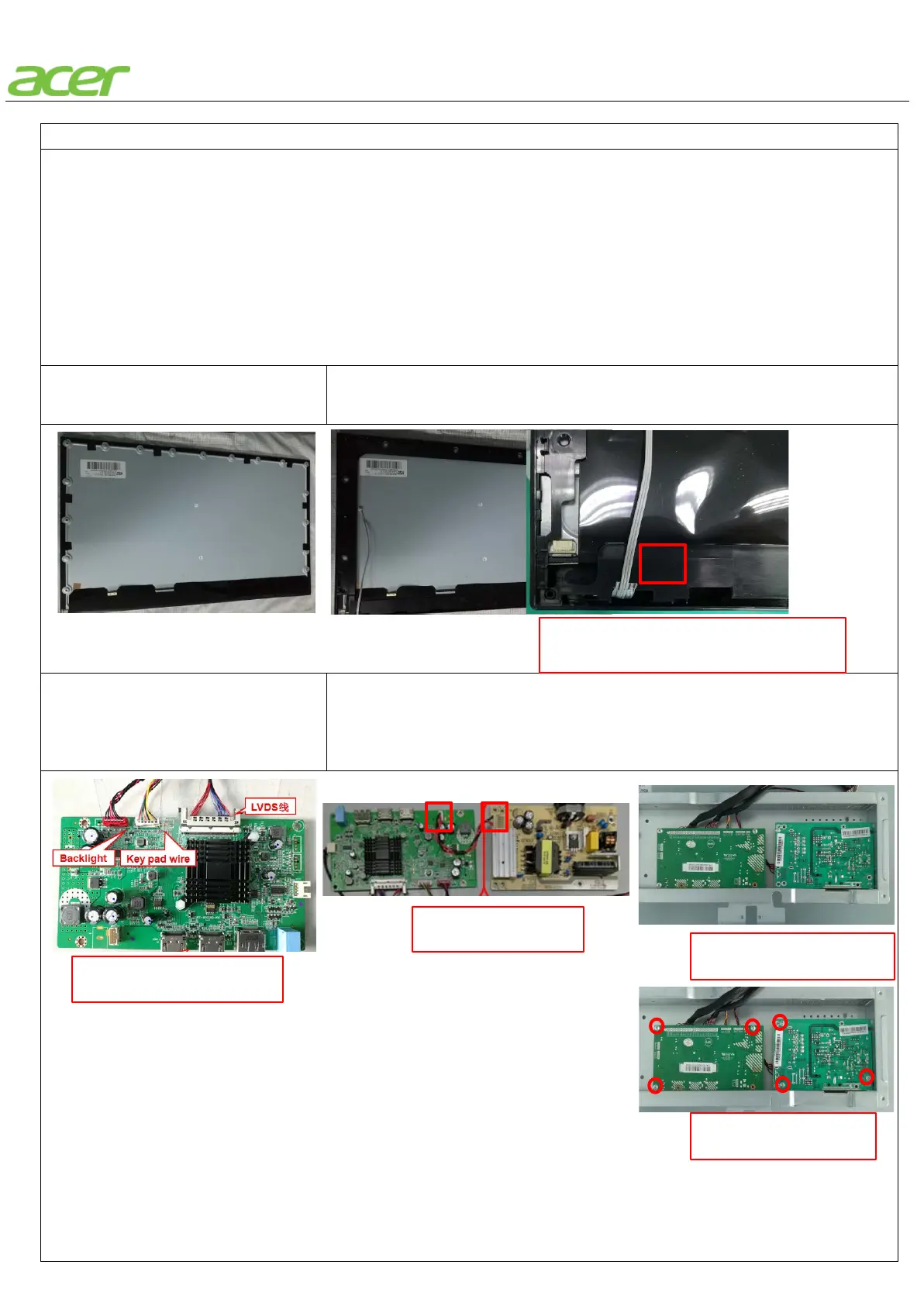

Assemble the middle frame

A. Input the LCD on the pallet

B. Take one middle frame and put it on the back side of panel

C. Load the middle frame on the panel

Assemble the mainboard and power

board of shielding

A. Assemble LVDS wire , Keypad wire and backlight wire on the

mainboard

B. Assemble the power wire from mainboard to power board

Put the mainboard and power board into the shielding and load screws

on the shielding

Put the bottom side of panel into middle frame,

let the backlight connector on the left side of

the middle frame

Assemble the LVDS wire, Key

pad wire and back light wire

Connect the mainboard

and power board with wire

Put the mainboard and power

board into the shielding

Loading six screws of

mainboard and power board
