Acer XV272K V3

ACER XV272K V3

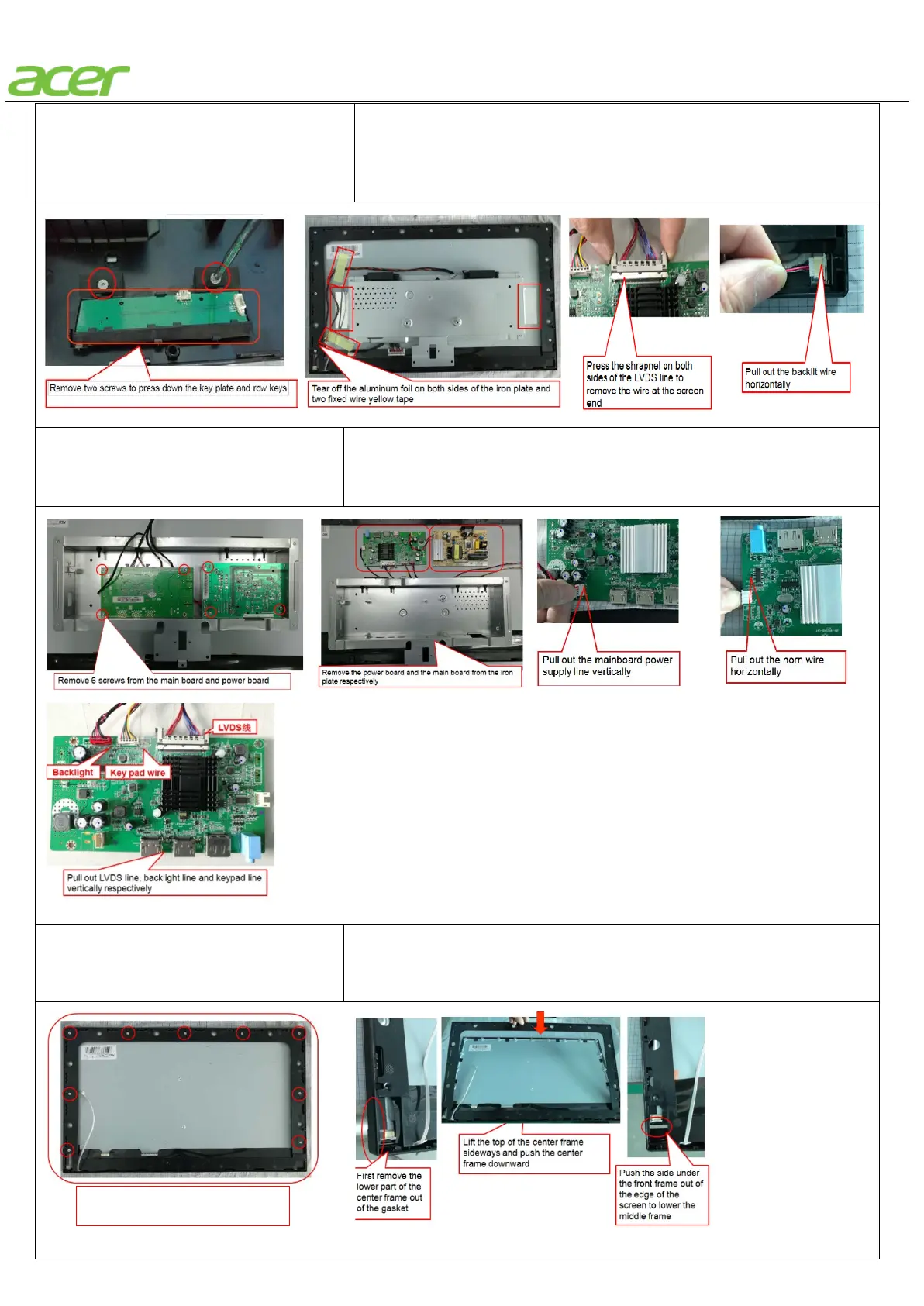

9
S3
Disassemble
the key board, the cable and
shielding
A. Using the screw driver to remove the screw on the key pad board
and take the keypad board off
B.
Tear off the tape of fixing the wire and shielding
C.
Pull out the LVDS wire and backlight wire from the panel
D. Take the shielding off
S4
Remove the main board and power
board and pull out the wire from board
A. Using the screw driver to remove the screw which fixing the main
board and power board to shielding
B.
Remove the main board and power board from the shielding
C. Pull out the wires from the main board and power board
S5
Disassemble the middle frame
A. Using the screw driver to remove the nine screws which fixing the
middle frame and panel
B.
Remove the middle frame
Remove nine screws of fixing
middle frame and panel
