1/The meaning of“ Hb”:
“Hb” means the max heating temperature of the upper heating. We set the max
temperature at 230°C according to the max temperatrue of lead-free Reweork and
other technical reasons. The data needn’t to be changed.

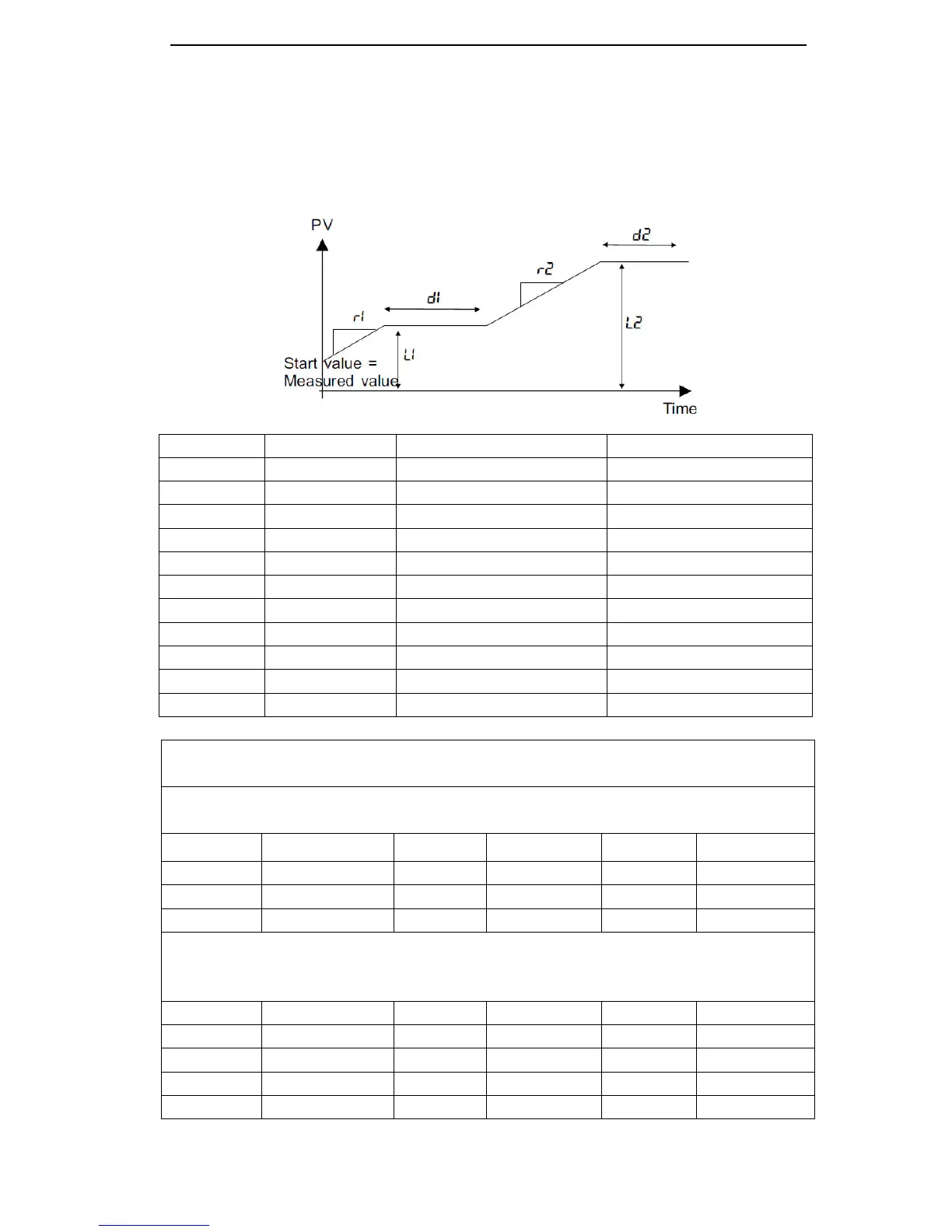

2/The meaning of “r1” “L1” “d1” “r2” “L2” “d2” “r3” “L3” “d3” ……
Please pay attention to The following pictures and tables:

S.N. Mnemonic Parameter Adjustable Range
1
r1
Ramp Rate 1 1
2
L1
Target Setpoint 1 0230End
3
d1
Dwell Time 1 09999sec
4
r2
Ramp Rate 2 1
5
L2
Target Setpoint 2 0230End
6
d2
Dwell Time 2 09999sec
7
r3
Ramp Rate 2 1
8
L3
Target Setpoint 2 0230End
9
d3
Dwell Time 2 09999sec
…
…
… …
Hb 230
Rework temperature curve to set examples
Lead Sn63Pb37
PTN- 1
r1 1 L1 85 d1 70
r2 1 L2 150 d2 35
r3 1 L3 185 d3 50
r4
END Hb 230
Lead-Free
Sn96.5Ag3Cu0.5
PTN- 2
r1 1 L1 85 d1 60
r2 1 L2 140 d2 45
r3 1 L3 170 d3 25
r4 1 L4 220 d4 50
r5
END Hb 230
