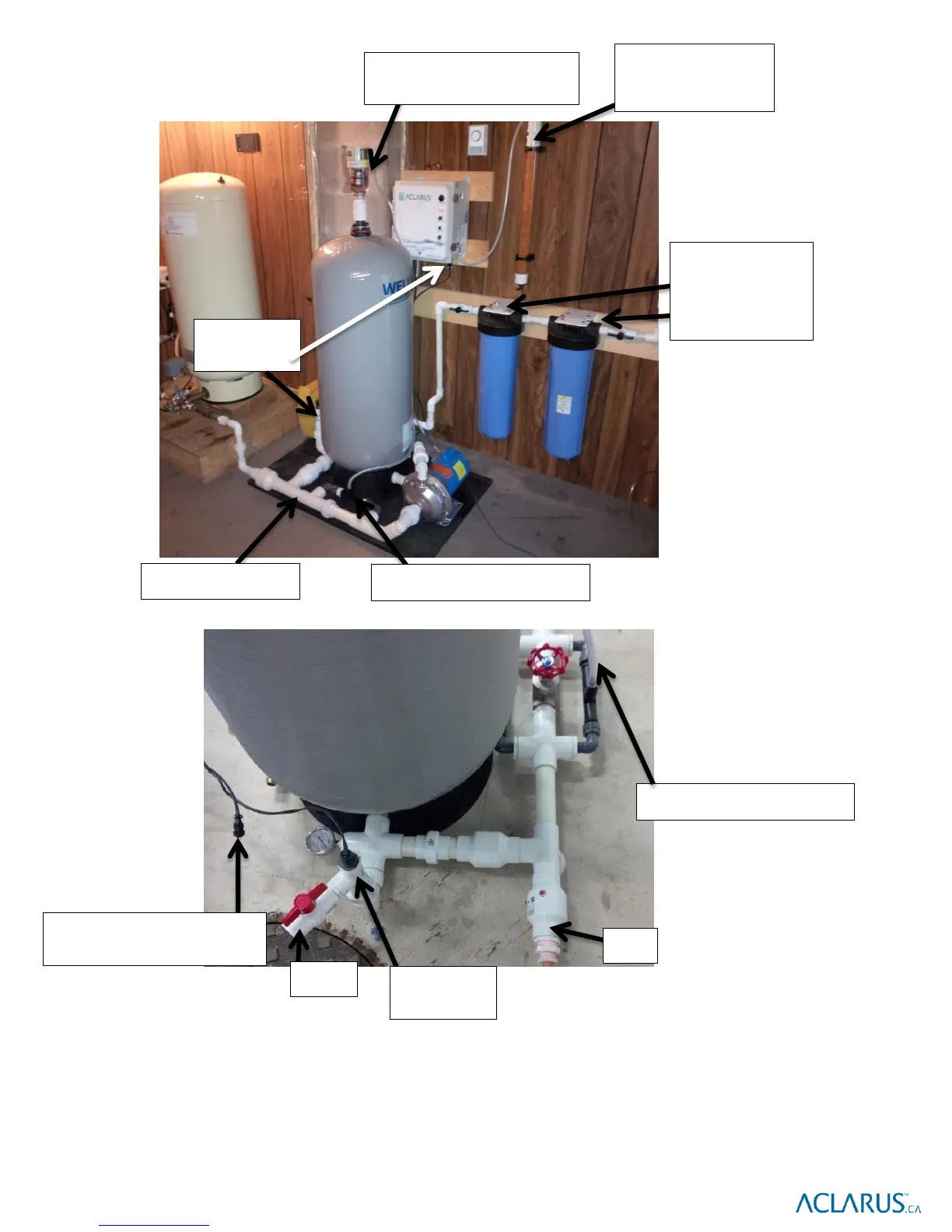

Example two – Off-Skid
From Ozone Box
To Mazzei
Flow Switch
Connection
Post Filters –
Sediment, then
Activated Carbon
Silica air dryer –
To ozone generator
Gas-Off Installed
With Line to Drain/Window
Hose From Ozone to Mazzei
Plumbing Assembly
Flow Switch
Connection TO OZONE HEAD
Outlet
Flow Switch
Connection
Inlet
Hose From Ozone to Mazzei
