GB TRONIC
TRONIC - Tubular gearmotors for radio controlled roller blinds and awming
with anemometer signal input
NSTRUCTIONS FOR INSTALLATION,
USE AND MAINTENANCE
ATTENTION
Read the instructions carefully before starting to install and programme the motor reducer.
Follow the instructions scrupulously. Incorrect installation may create serious risks. T
he man-
ufacturer declines all liability in the event of incorrect installation or improper use of the product.
SUMMARY
1. DESCRIPTION OF THE PRODUCT
2. INSTALLATION OF THE TRONIC ON THE LEFT
3. LOGIC OF RADIO CONTROL UNIT (TX2 - TX4 - TXP - TXMULTI)
4. ADDITION OF NEW RADIO CONTROL UNITS
5. LOGIC OF FUNCTIONING OF THE EXTERNAL PUSH BUTTON CONTROL
6. PROGRAMMING OF A GLOBAL RADIO CONTROL SWITCH (TX2 - TX4 - TXP - TXMULTI)
7. CANCELLATION OF RADIO CONTROL CODES
8.
INSTALLATION OF THE ANEMOMETER WINDY
9. PROGRAMMING THE ANEMOMETER’S TRIPPING SPEED
10. WARNINGS FOR INSTALLATION
11. TECHNICAL CHARACTERISTICS
12. ELECTRICAL CONNECTION DIAGRAM
13. INDICATORS UNDER DEVELOPMENT
1.DESCRIPTION OF THE PRODUCT
The “Tronic” tubular gearmotors is a system for automation de rolling shutter and awming provided with
an incorporated radio receiving super-heterodyne central electronic unit. The device is controlled by ra-
dio control units working in the 433,92 MHz. frequency band. The “Tronic” is supplied with a radio con-

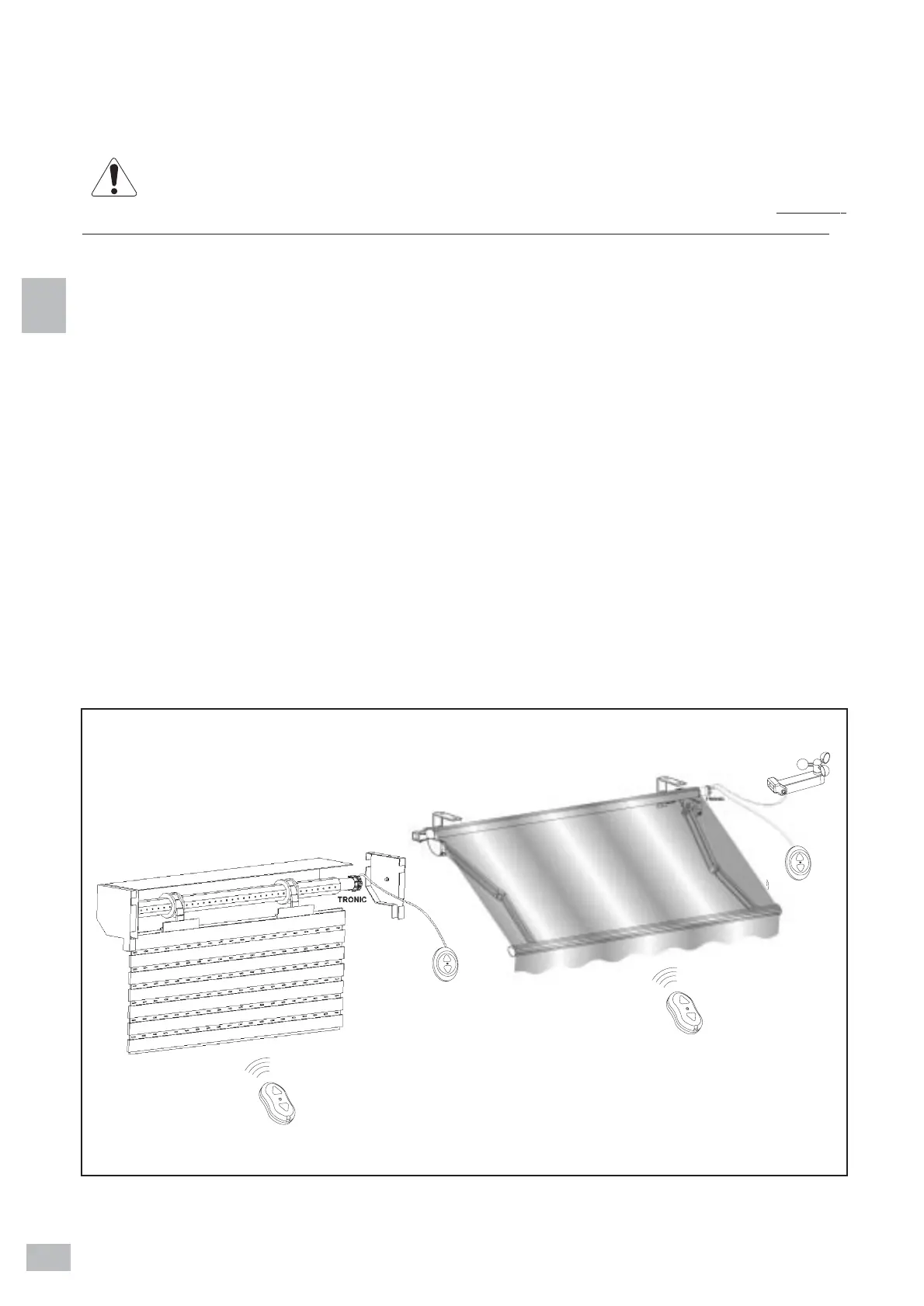

FIG.1
RADIO CONTROL
TX2
Example of installation
on awnings
Example of installation on
rolling shutter
ANEMOMETER
RADIO CONTROL
TX2
PUSH
BUTTON
24Vdc
PUSH BUTTON
24Vdc
To Next Page
